Nautilus U628 - Assembly Instructions - Part 3; Console Unit Installation

11

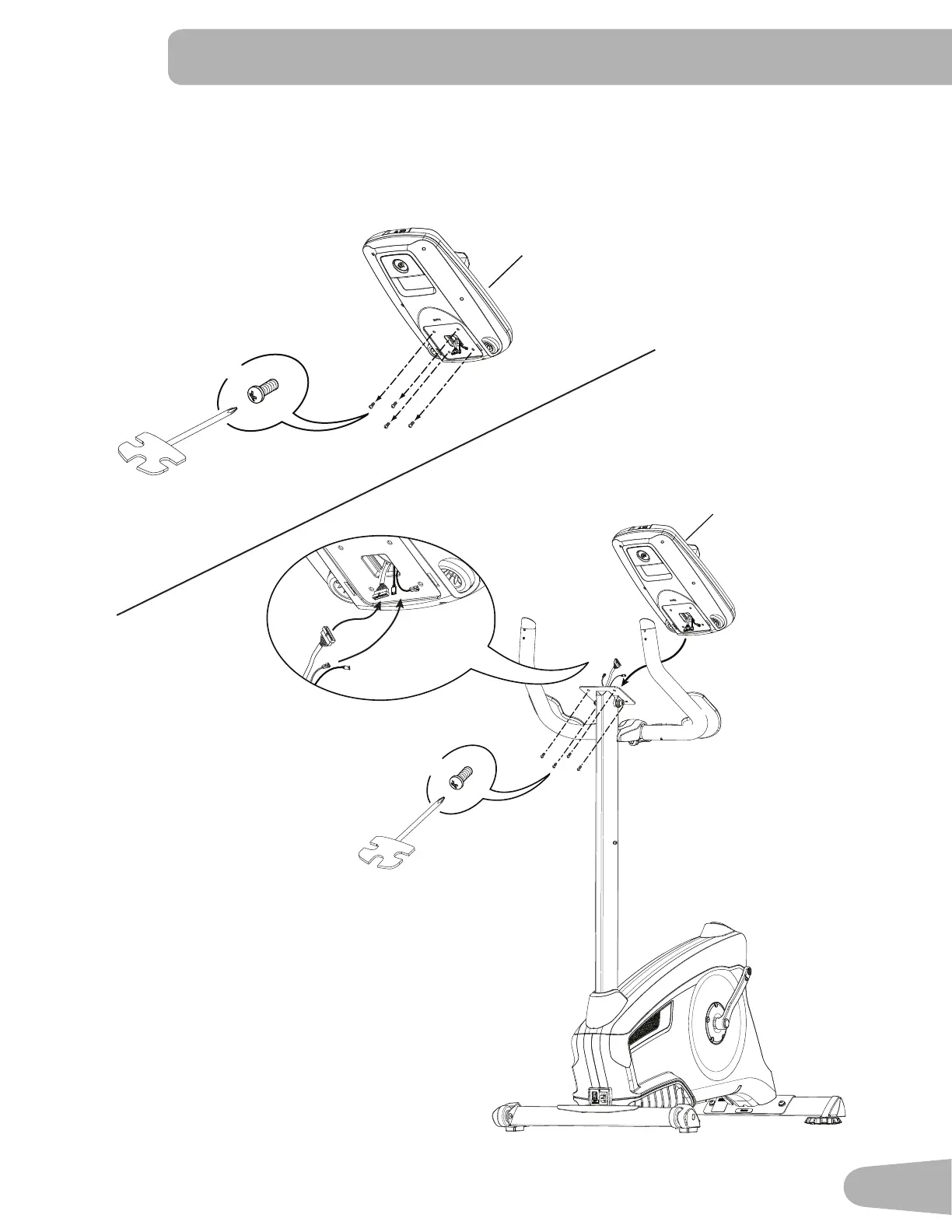

4. Install Console on Console Mast
Note: Remove the pre-installed screws(*) from the back of the Console before you connect the cables. If desired,
apply the French Canadian overlay to the Console face.
NOTICE: Do not crimp the cables. Push the e[tra wire down into the Console Mast to allow pivot clearance.
8
X4
#2
*
X4
#2
*
8
