Navien NPE-240A Service Manual

Components Diagram and Part List 135

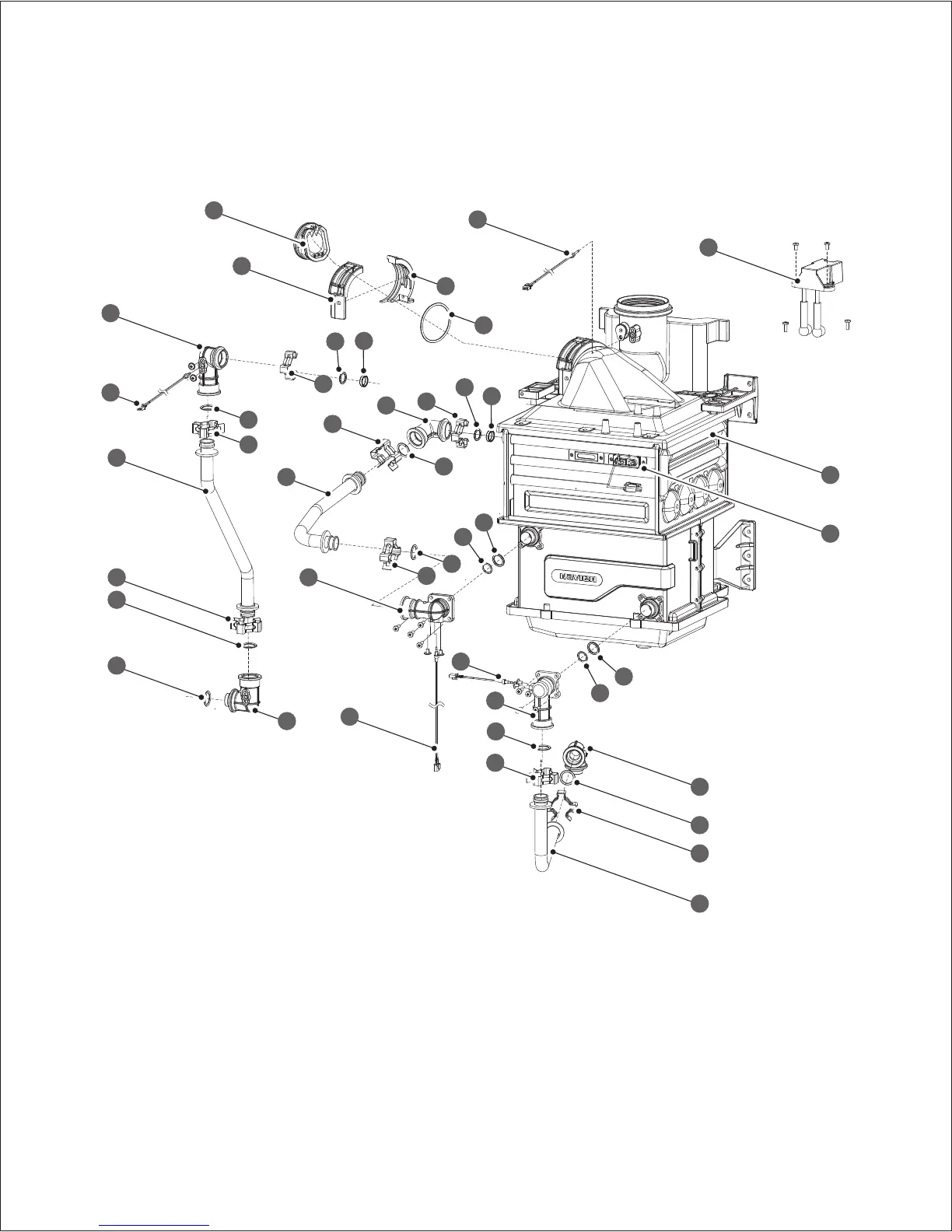

7.2 Burner Assembly(NPE-180A/ 210A/ 240A)
7
6
18
13
3
7-1
10
9
12
19
21
19
21
8
14
1112
4 -1
6-1
4
12
17-1
11-1
12
12
1
15
17
12
6
6-1
14
5
2
17
6-1
6-1
6-1
6-1
19
20
19
20

Navien NPE-240A Specifications

General

Type	Tankless
Fuel Type	Natural Gas or Propane
Energy Factor	0.97
Energy Efficiency	97%
Voltage	120V
Ignition Type	Electronic
Maximum Input	199, 900 BTU/h
Water Connection Size	3/4"
Gas Connection Size	3/4"
Warranty	15-year on heat exchangers, 5-year on parts, 1-year on labor
Dimensions	17.3" W x 13.2" D x 27.4" H
