1.2 CONSTRUCTION AND FEATURES
This section describes the construction of the Model FDl165
and explains the features of the various assemblies. See
Figure 1-1 to identify the assemblies that are described in
this section.
HEAD LOAD
SOLENOID

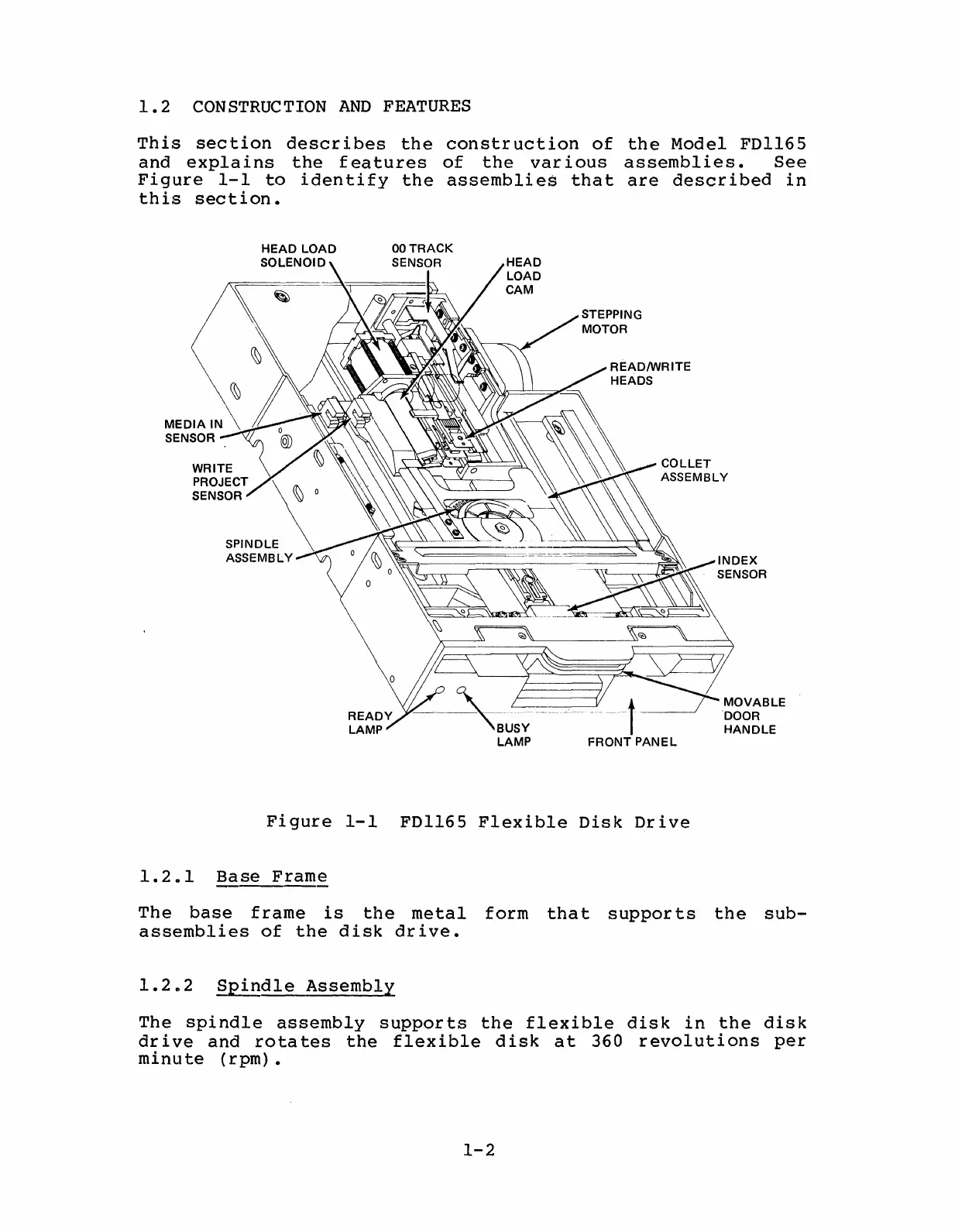

Figure 1-1 FDl165 Flexible Disk Drive
1.2.1 Base Frame
The base frame is the metal form that supports the sub-
assemblies of the disk drive.
1.2
b
2 Spindle Assembly
The spindle assembly supports the flexible disk in the disk
drive and rotates the flexible disk at 360 revolutions per
minu te (rpm).
