NEC FD1165 - Sensor Cable Assembly; Installing the Index Sensor

f. Separate the connector tQ the 00 track sensor.
9. Remove the heat-shr inkable tubing and unsolder the
connections of the media-in sensor, the wr i te pro-
tect sensor, and the optical tachometer sensor.
h. Separa te the sensor cable assembly from the base
frame by spreading the clips that fasten the sensor
cable to the base frame.
i. Remove the sensor cable assembly from the base frame
with the LED assembly and index sensor attached.
Use the following procedure to install and adjust the index
sensor.
a. Insert the index sensor into the index sensor groove
in the base frame.
b. Install the screw that fastens the sensor to the
base frame but do not tighten it.
c. Insert the index sensor adjusting pin into the hole
in the index sensor.
d.
Push the index sensor
touches the adjusting
(see Figure 4-12).
so that the adjusting pin
surface of the base frame
e. Tighten the screw that fastens the index sensor to
the base frame. Do not remove the adjusting pin.
INDEX SENSOR
INDEX SENSOR
PRESS/"'-
HERE
ADJUSTING
~
PIN
SCREW
SIDE VIEW

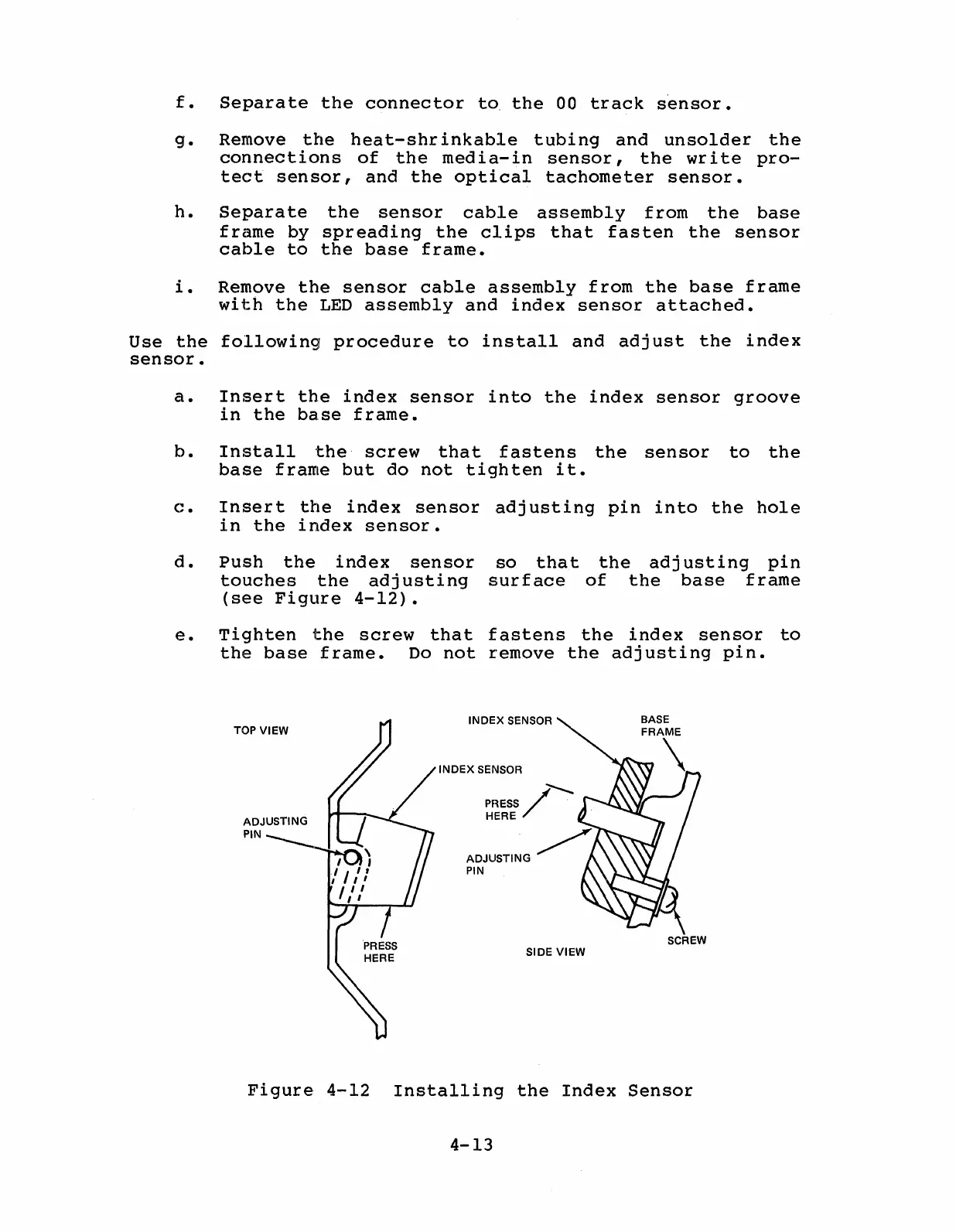

Figure 4-12 Installing the Index Sensor
4-13
