2.8.9.2 Busy Lamp On During Drive Select
To have the busy lamp on when a dr i ve select signal is
present, select BU2 and BSl.
2.8.9.3 Busy Lamp On During In Use
To have the busy lamp on when an In Use signal is present,
select BUI and remove the BS jumper.
2.9 OPERATING THE FDl165
This section describes inserting a flexible disk into the
disk drive and removing a flexible disk from the disk drive.
2.9.1 Inserting a Flexible Disk
Use this procedure to insert a flexible disk into the disk
drive.
a. Turn on the dc power supply.
b. Insert a flexible disk into the FDl165 until the
flexible disk locks in place and close the door (see
Figure 2-13).

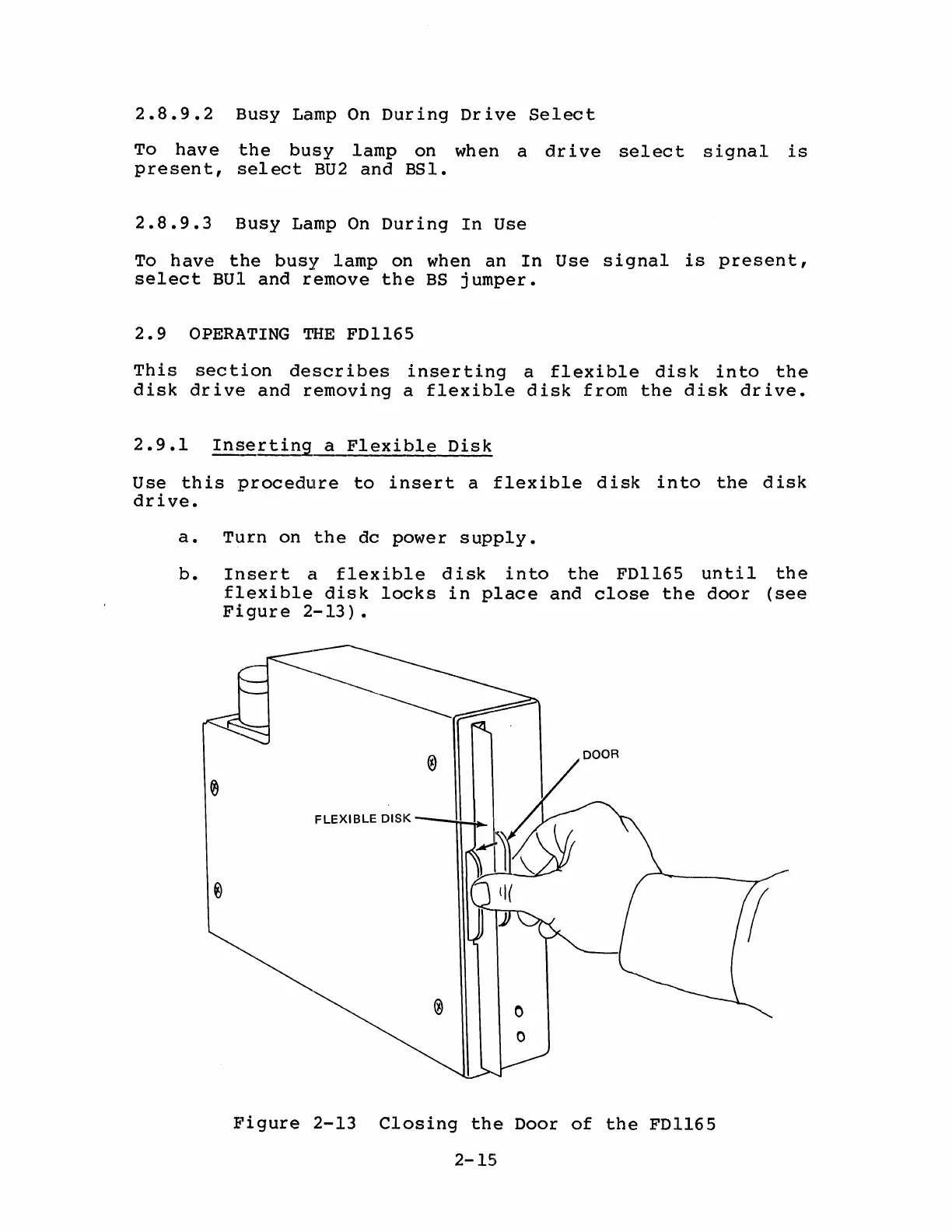

FLEXIBLE DISK --.;.;.-..!..>....-
Figure 2-13 Closing the Door of the FDl165
