NEC FD1165 - Front Panel Removal; Picker Rod Removal and Replacement; Removing the Front Panel

4.4.11 Front Panel Removal
Use the following procedur~ to remove the front panel.
a. Remove the two screws that fasten the front panel
to the base frame (see Figure 4-16).
b. pi nch the two panella tches ( see Fi gu r e 4-16) and
remove the front panel.

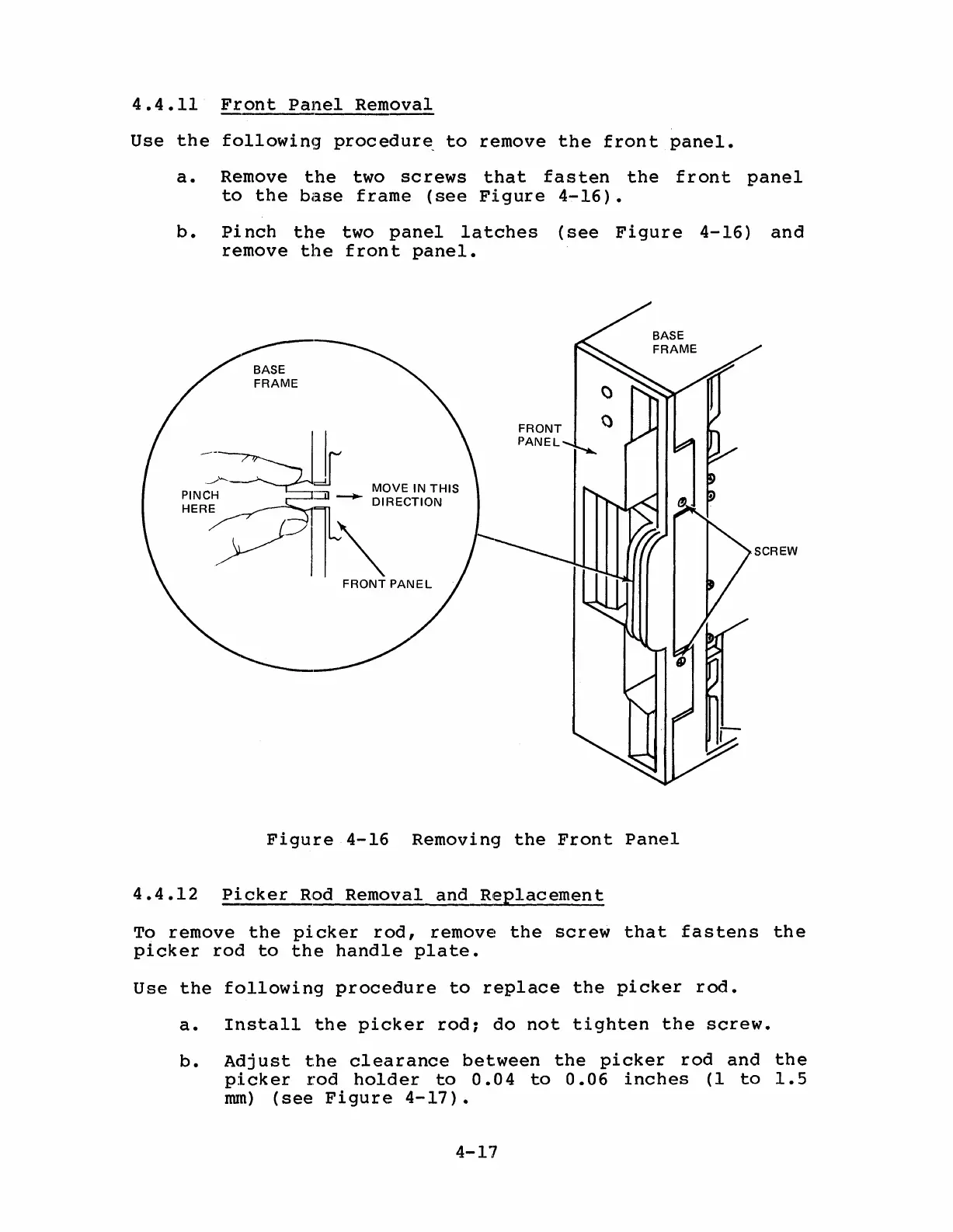

Figure 4-16 Removing the Front Panel
4.4.12 Picker Rod Removal and Replacement
To remove the picker rod, remove the screw that fastens the
picker rod to the handle plate.
Use the following procedure to replace the picker rod.
a. Install the picker rod: do not tighten the screw.
b. Adjust the clearance between the picker rod and the
picker rod holder to 0.04 to 0.06 inches (1 to 1.5
rom) (see Figure 4-17).
4-17
