Use the following procedure to install the LED Assembly.
a. Install the LED assembly so that the hole in the LED
unit fits over the adjusting pin.
b. Install the two screws that fasten the LED assembly
to the base frame (see Figure 4-11).
c. Remove the adjusting pin.
d. Perform the index alignment adjustment (see Section
5.4.3) •
4.4.8 Removing and Replacing the Carbon Brushes
Use the following procedure to remove a carbon brush,
a. Remove the brush stopper (see Figure 4-13).
b. Remove the brush.
CAP
BRUSH
STOPPER
BRUSH
HOLDER

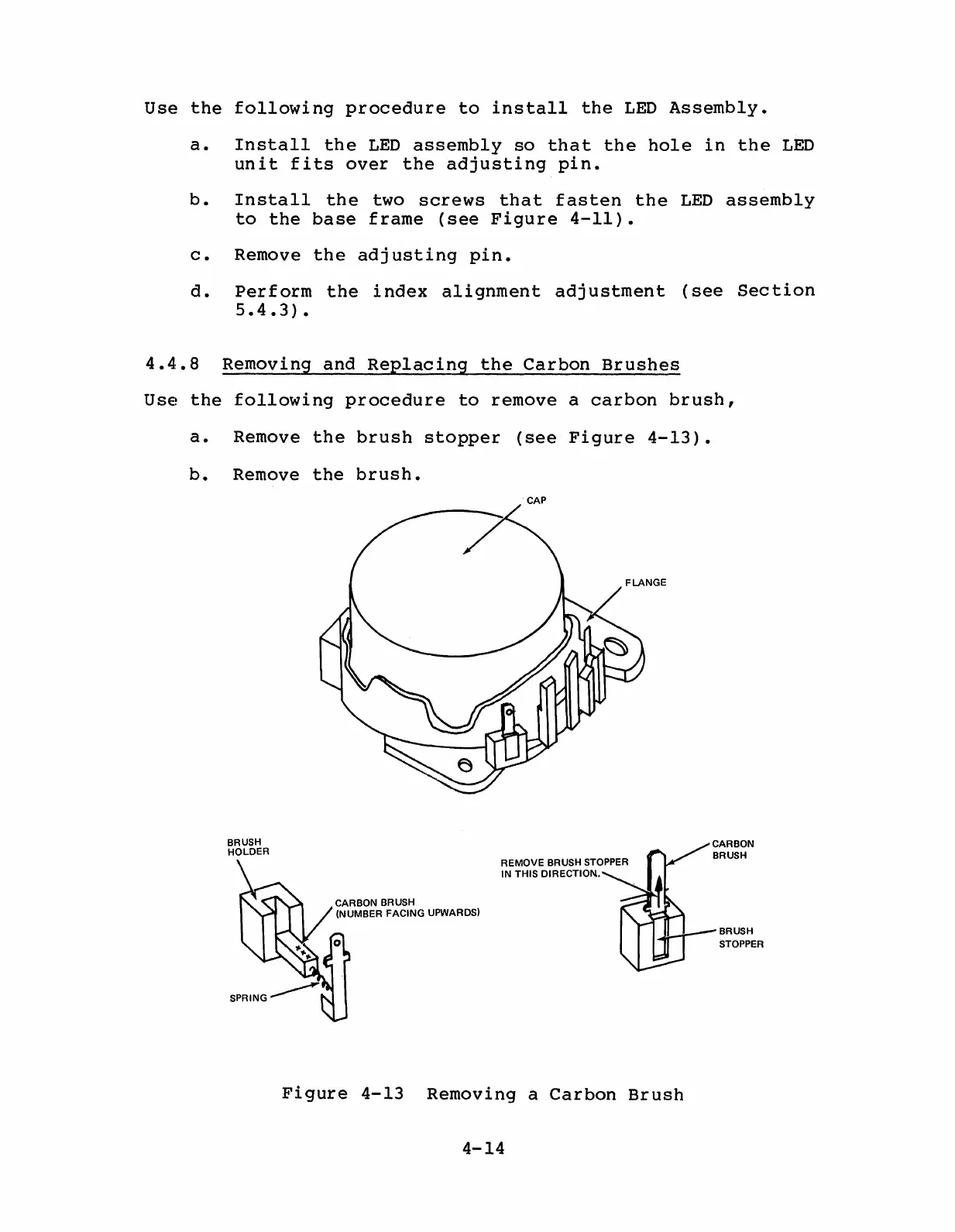

Figure 4-13 Removing a Carbon Brush
4-14
