d. Open the door and make sure that the disk drive
ejects the flexible disk about 1/2-inch (13 mm).
e. Insert a dummy flexible disk and close the door.
f. Hold the disk in place by hand.
g. Open and close the door about 10 times to insure
that the door operates correctly.
4.4.16 Door Lock Solenoid Removal and Replacement
Use the following procedure to remove the door lock sole-
noid.
a. Remove the front panel
b. Remove the two screws that fasten the door lock
solenoid and bracket to the base frame.
c. Trace the wire to the door lock solenoid and sep-
arate the wire from the clips that secure it to the
base frame.
d. Unplug the wire of the door lock solenoid at the
PCB.
e. Remove the door lock solenoid.

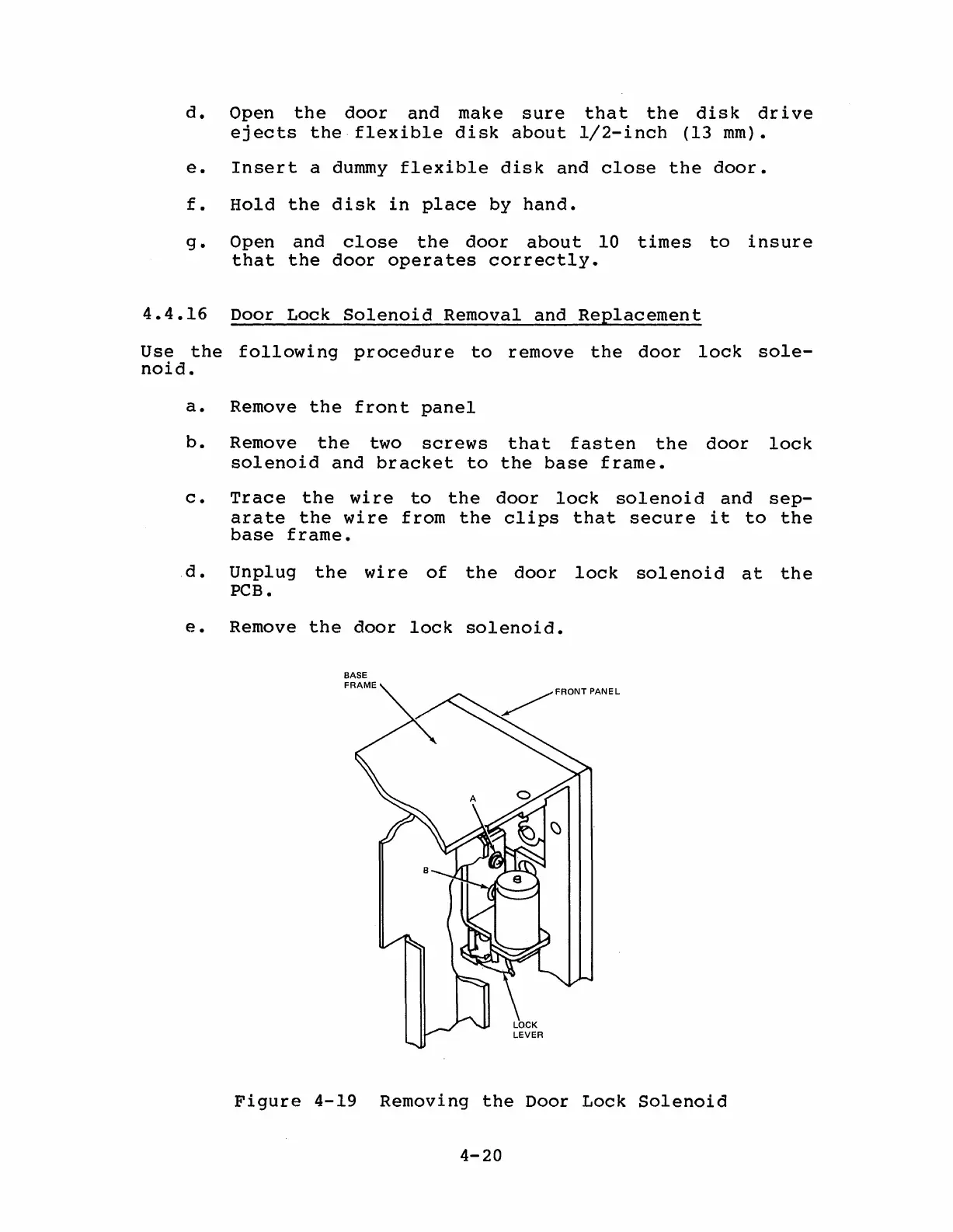

Figure 4-19 Removing the Door Lock Solenoid
4-20
