NEC FD1165 - Power Connector Pin Assignments; Power Connector Location; Pin and Line Assignments for the Power Connector

!PCB
POWER
CONNECTOR --....... ....

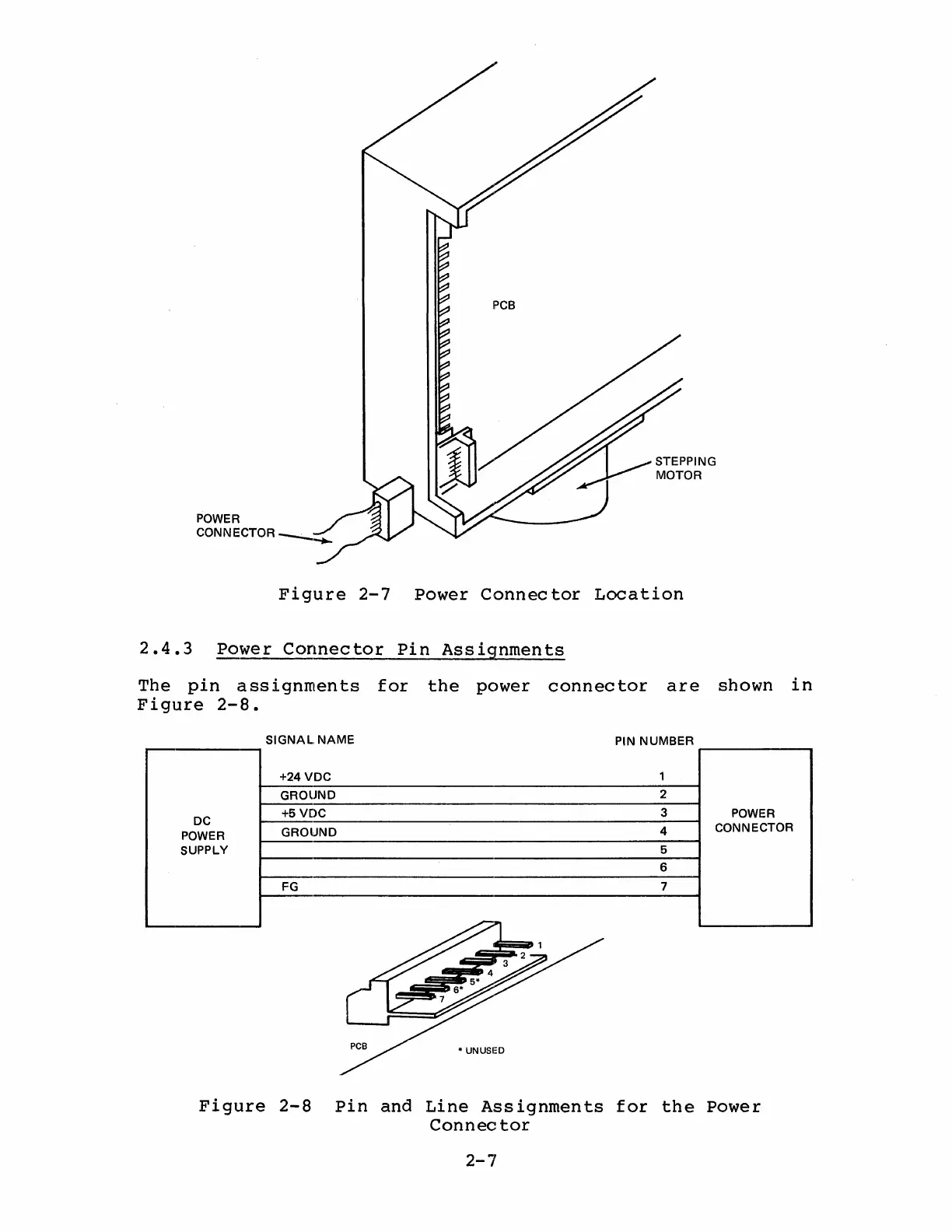

Figure 2-7 Power Connector Location
2.4.3 Power Connector Pin Assignments
The pin assignments for the power connector are shown in
Figure 2-8.
SIGNAL NAME
PIN NUMBER
+24 VDC
1
GROUND
2
DC
+5VDC
3
POWER
POWER
GROUND
4
CONNECTOR
SUPPLY
5
6
FG
7
Figure 2-8 Pin and Line Assignments for the Power
Connector
2-7
