NEC FD1165 - Removing the Sensor Cable Assembly

b. Remove the collet assembly.
c. Separate the sensor cable connector from the PCB and
slide the connector through the hole in the base
frame.
d. Remove the two screws tha t fasten the LED assembly
to the base frame.
e. From the PCB side of the disk drive, remove the
single screw that fastens the index sensor to the
base frame.
LEVER PLATE HINGE
SCREW,
~""

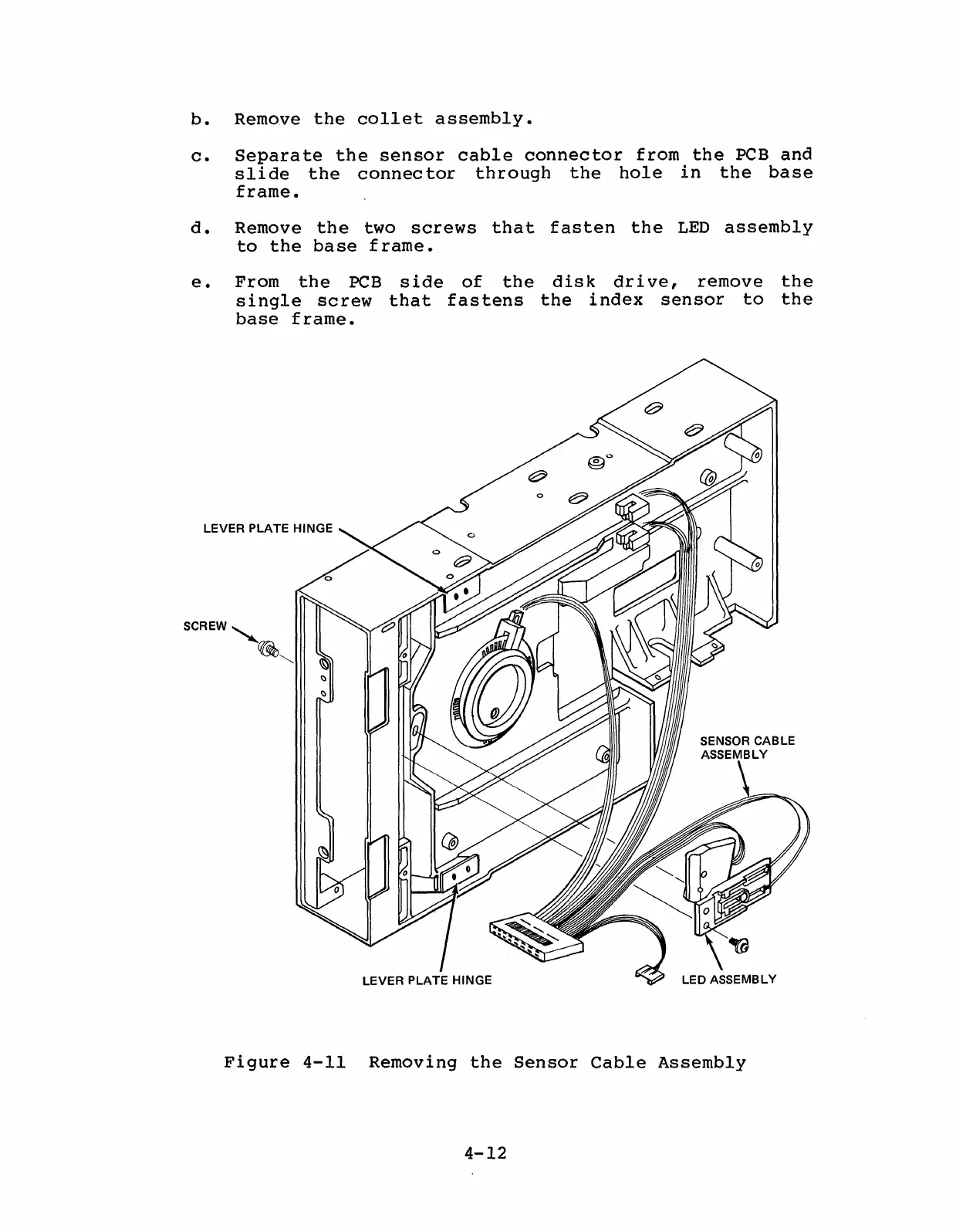

Figure 4-11 Removing the Sensor Cable Assembly
4-12
