c. Tighten the screw.
d. Check the operation of the picker rod (see Section
4 .4 .15) •
DISPLAY LAMP
BASE FRAME
~
/PICKERROD
t
pop-up ASSEMBLY
HANDLE PLATE

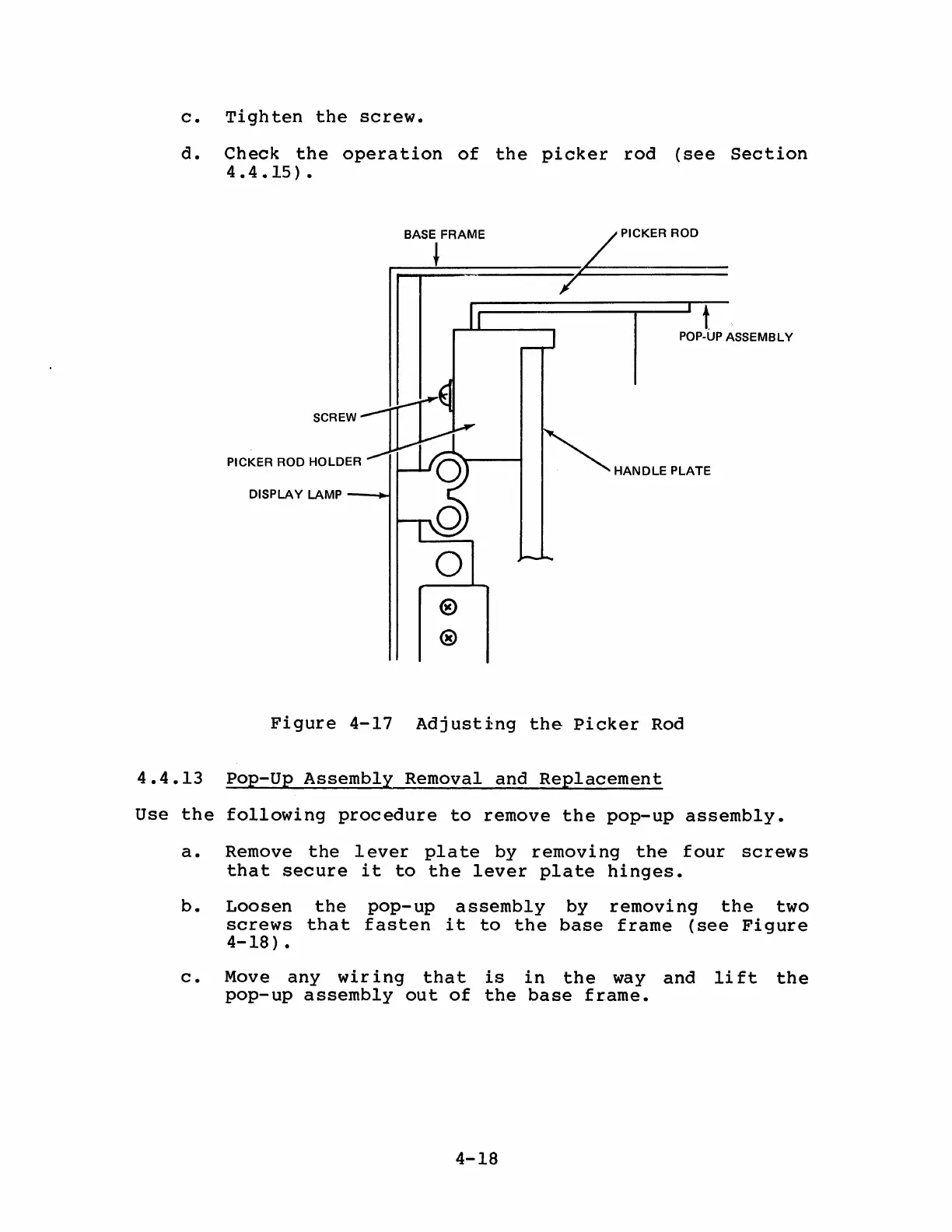

Figure 4-17 Adjusting the Picker Rod
4.4.13 Pop-Up Assembly Removal and Replacement
Use the following procedure to remove the pop-up assembly.
a. Remove the lever plate by removing the four screws
that secure it to the lever plate hinges.
b. Loosen the pop-up assembly by removing the two
screws that fasten it to the base frame (see Figure
4-18) •
c. Move any wir ing that is in the way and Ii ft the
pop-up assembly out of the base frame.
4-18
