19

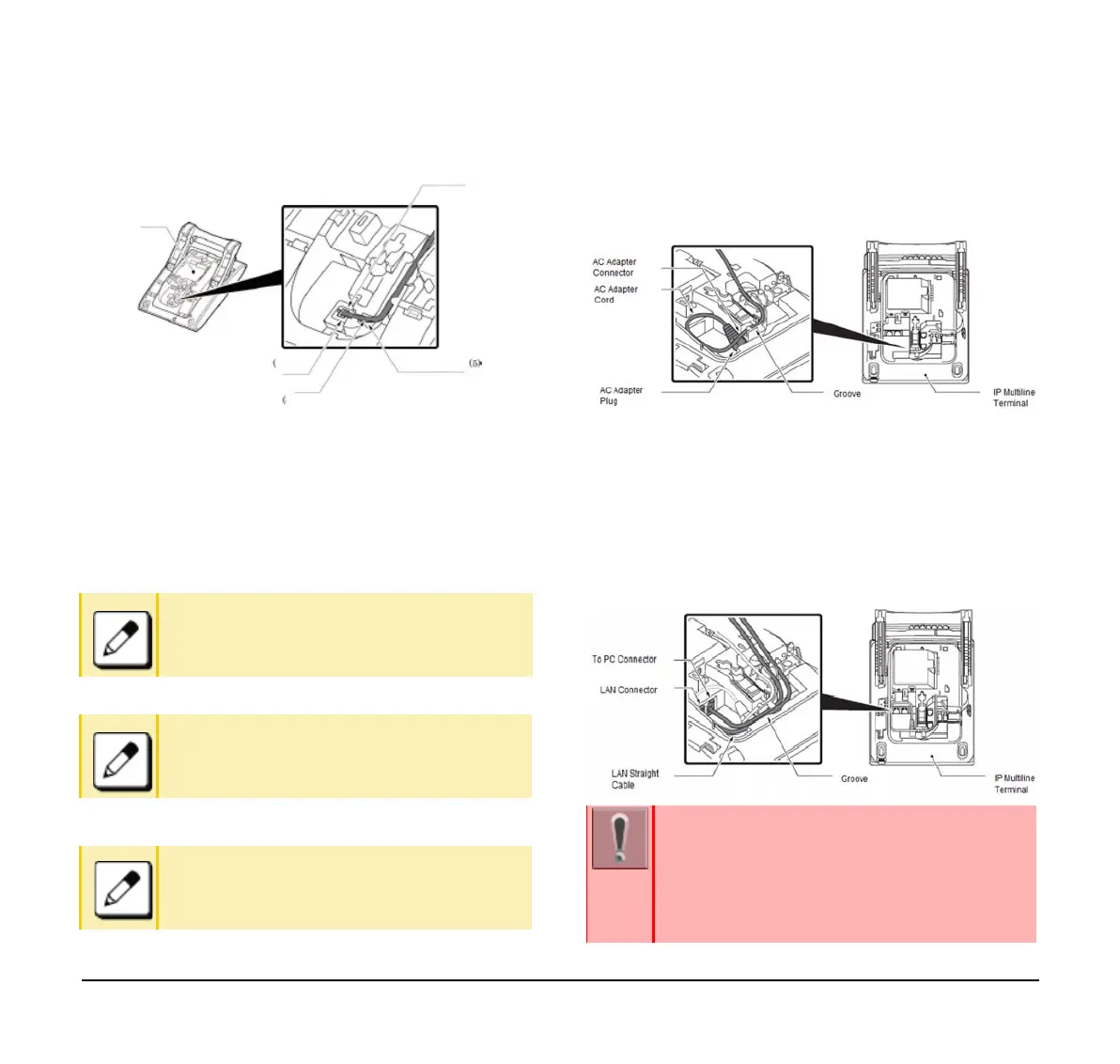

(2) Fit the headset cord into the groove.
Connect LAN Cable
Confirm the location of AC adapter and the LAN
connector at the back of the multiline terminal. Then
connect the multiline terminal using the following steps.
(1) Connect the LAN Network cable to the LAN (=)
connector.
(2) The IP terminal has a switching HUB to connect a
PC to the LAN Network. Connect the 10 Base-T/
100 Base-TX/1000 Base-T straight cable used for
this connection to the PC(x) connector and to the
PC.
Refer to Section 2 Terminal Setup, Making/
Answering Calls with a Headset on page 40.
For the headset that is supported, please
contact the NEC's dealer or NEC.
The headset ,which can be connected to the
telephone, is "HW510 (A10)/HW251N (A10)
(manufactured by Plantronics).
(1) Terminal
(2) Headset Connector
(3) Modular Plug
(4) Cord
(5) Groove
(1)
(2)
(3)
(4)
(5)
When using the PC port with a local power
supply, depending on the LAN cable connector
housing, the LAN cable connector may not fit.
Remove the outer plastic covering from the LAN
cable connector, or use the LAN cable with a
thin connector.
To Next Page
