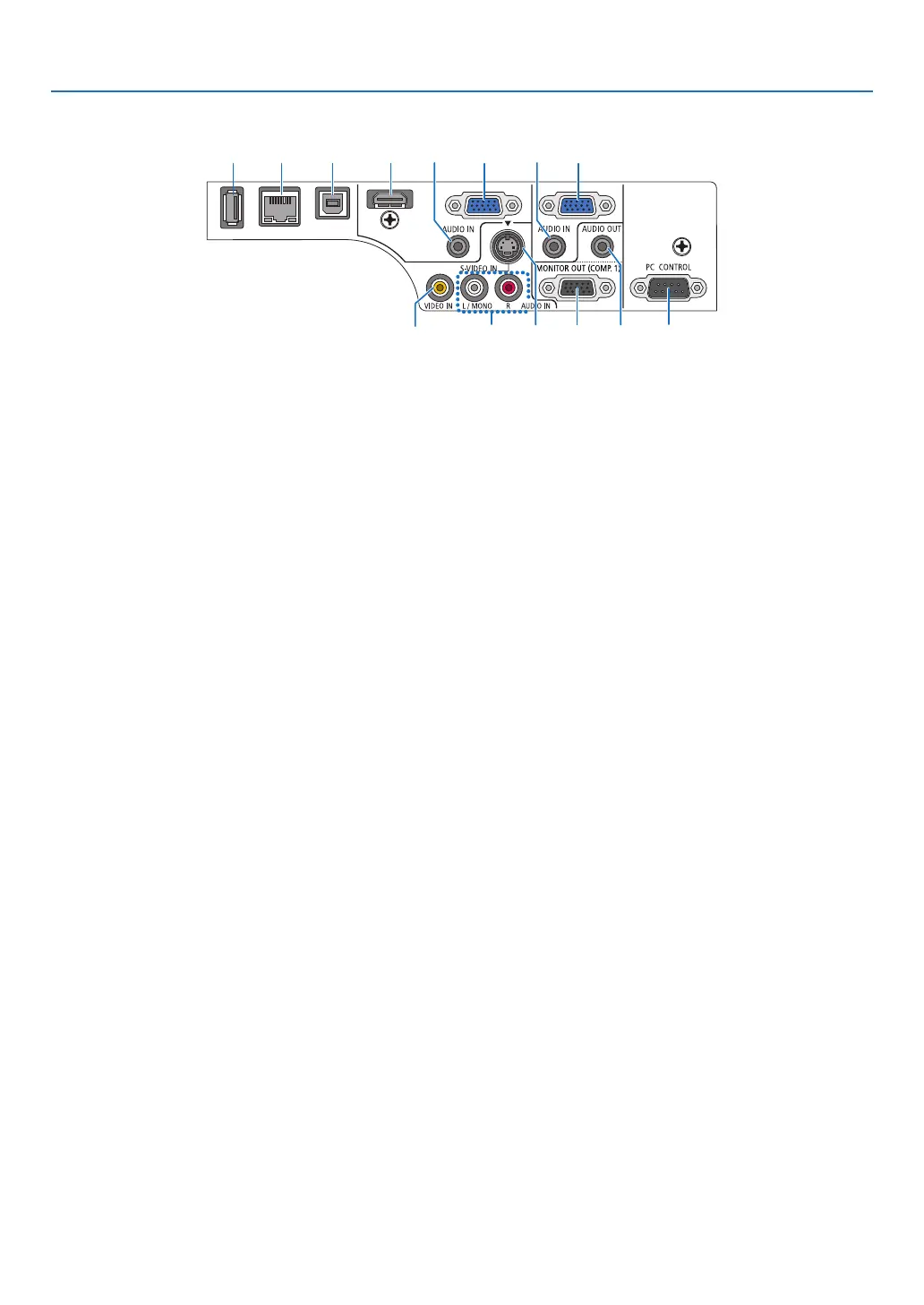

Terminal Panel Features
1235613 12
87
11 14910
4
1. COMPUTER1IN/ComponentInputConnector
(MiniD-Sub15Pin)(→page104, 108)
2. COMPUTER1AUDIOINMiniJack(StereoMini)
(→
page104, 107, 108)(notavailableonM420XV)
3. COMPUTER2IN/ComponentInputConnector
(MiniD-Sub15Pin)(→page104, 108)
4. COMPUTER2AUDIOINMiniJack(StereoMini)
(→
page104, 107, 108)(notavailableonM420XV)
5. HDMIINConnector(TypeA)
(→
page104, 109)
6. USB(PC)Port(TypeB)
(→
page42, 104)
7. MONITOROUT(COMP.1)Connector(MiniD-Sub
15Pin)(→page106)
8. AUDIOOUTMiniJack(StereoMini)(→page106)
 (notavailableonM420XV)
9. S-VIDEOINConnector(MiniDIN4Pin)
(→page107)
10.VIDEOINConnector(RCA)(→page107)
11.VIDEO/S-VIDEOAUDIOINL/MONO,R(RCA)
(→
page107)(notavailableonM420XV)
12.LANPort(RJ-45)(→page110)
13.USBPort(TypeA)(→page60)
14.PCCONTROL[PCCONTROL]Port(D-Sub9Pin)
(→
page141)
 UsethisporttoconnectaPCorcontrolsystem.This
enablesyoutocontroltheprojectorusingserialcommu-
nicationprotocol.Ifyouarewritingyourownprogram,
typicalPCcontrolcodesareonpage141.
