5-59

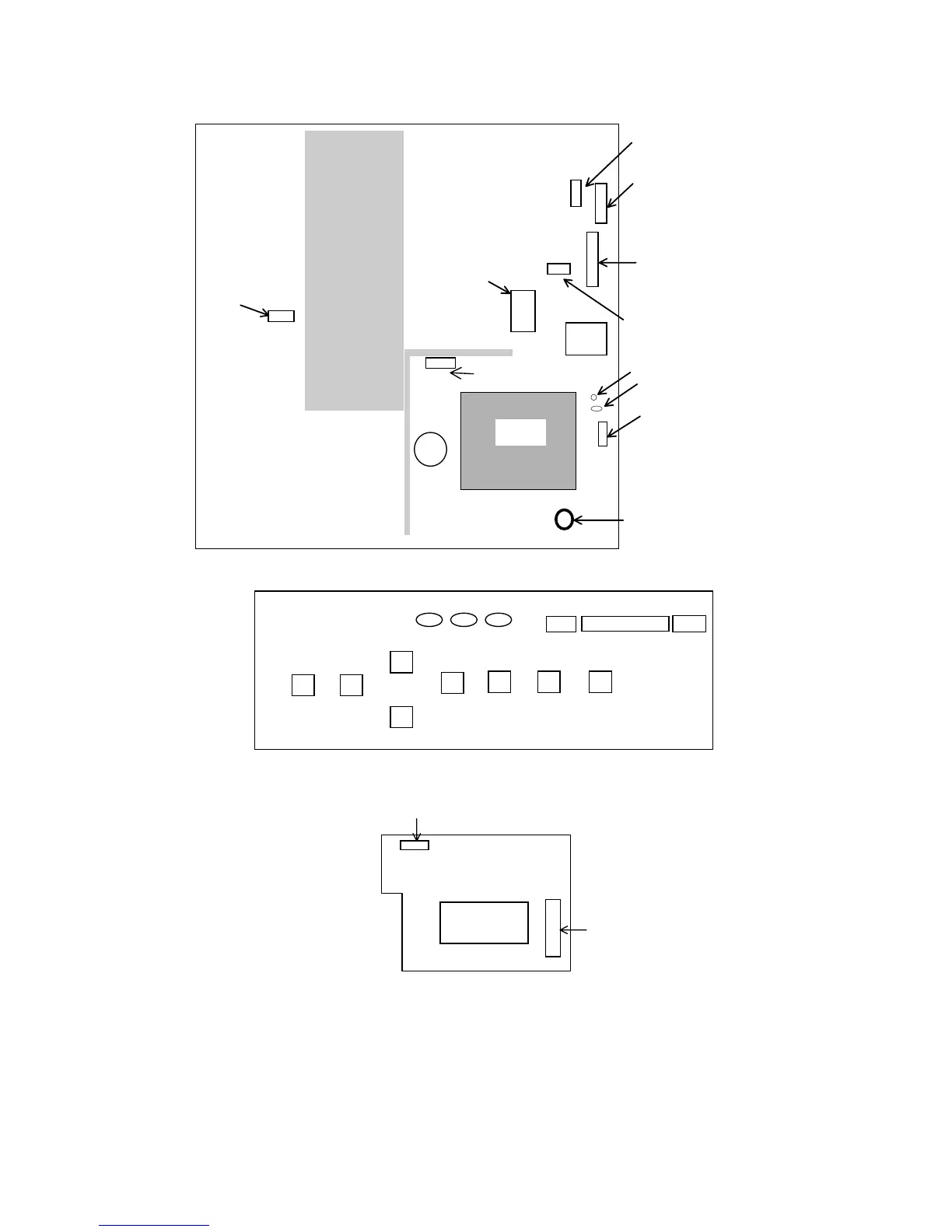

3. Position of Connector / Test point of Adjustment
SW.REG/HV PWB
F.B.T.
VR5T1
HIGH VOLTAGE ADJUSTMENT
(WITH SEALING CAP)
HEAT SINK
HEAT SINK
CN-K
CN-R
CN-P
CN-PM
CN-CR
CN-PS
TP-HV
CNTP
TP-DF
T981
C5R1
CN-DF
Fig 3-1 SW/HV PWB (PARTS SIDE)
Fig 3-2 CONT PWB (PARTS SIDE)
CN-LEA
CN-SW
SW601
Fig 3-3 SW PWB(PARTS SIDE)
LED111 LED112 LED113
CN-LEB CN-CLB CN-CLA
SW105 SW106 SW107 SW108
SW104
SW103
SW101 SW102
