4-4
REMARK
SYMBOL

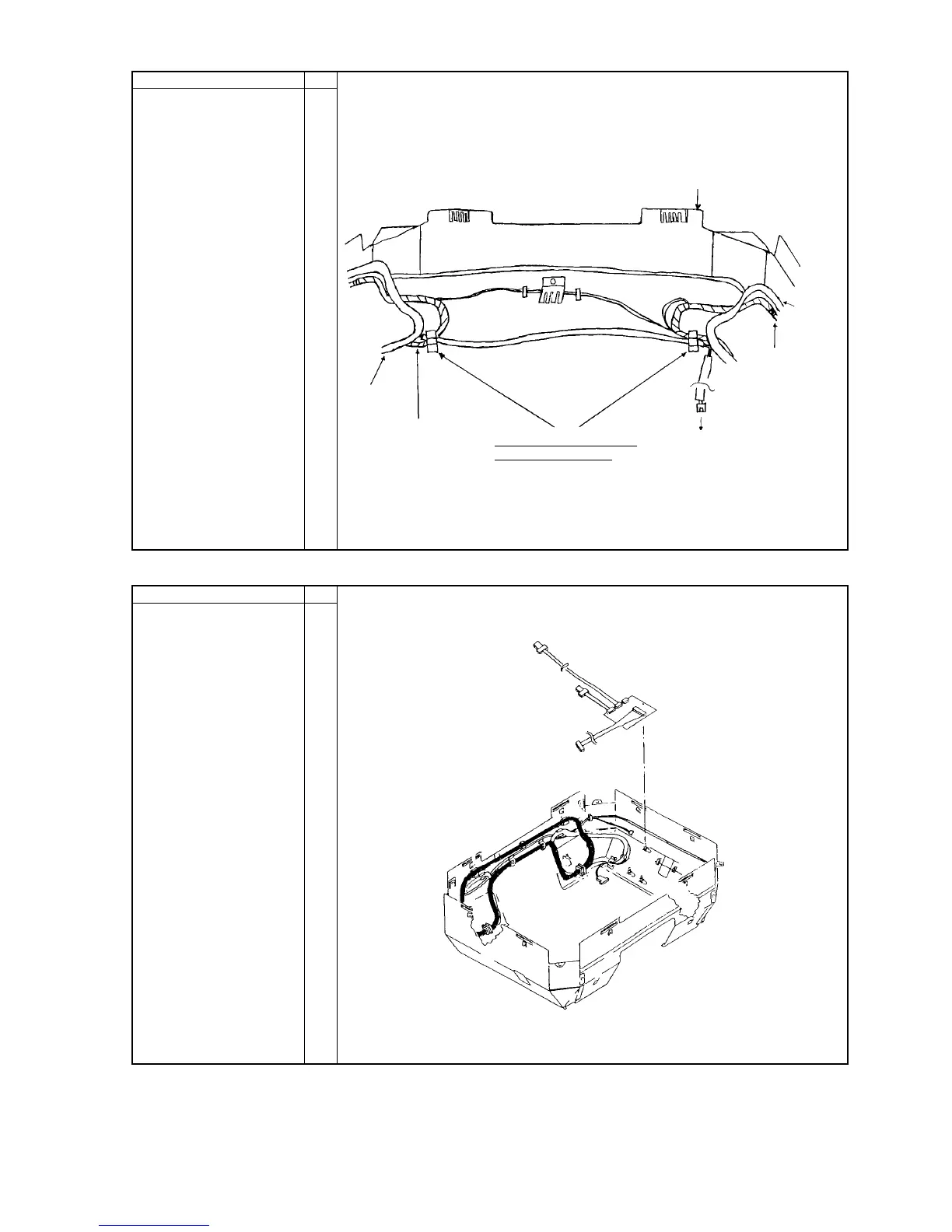

Clamp the DEG COIL’s wire with
CLAMPER,WIRE as per sketch.
REMARK
SYMBOL
Mount the EMF PWB. 121E
<SIDE VIEW>
SHIELD
DEGAUSS
COIL
CORNER COIL
CNZ
DEG COIL’S wire
Clamp the DEG COIL’S wire
and the CORNER COIL.
CORNER COIL
DEGAUSS
COIL
CN-RR
CN-LL
121E
CN-EMF
