4-15
REMARK
SYMBOL

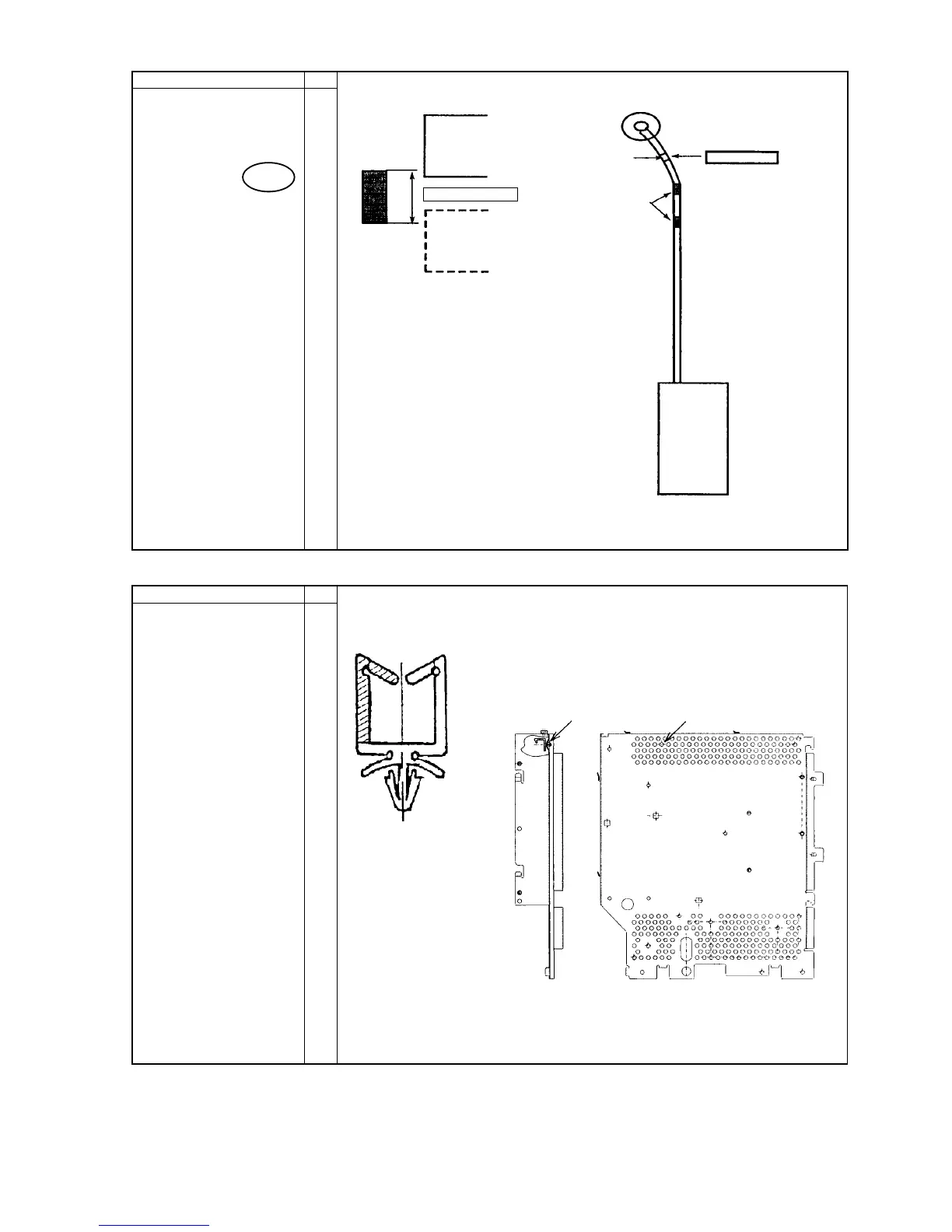

Mount the ANODE CLAMPER to
ANODE LEAD.
(True up the upper ANODE
CLAMPER and adove WHITE
MARK.)
167
REMARK
SYMBOL
CLAMPER,WIRE should be
partially cut away as atching area
on figure.
Put CLAMPER,WIRE in
BRACKET (L,B) as per sketch.
182
SAFETY
ANODE
CLAMPER
ANODE
CLAMPER
Lower edge
Upper edge
WHITE
MARK
WHITE
MARK
YELLOW
MARK
ANODE CLAMPER
Within white mark
FBT
Position of CLAMPER
BRACKET (L,B)
