5-20
7) Push "EXIT" SW.
+X
-X

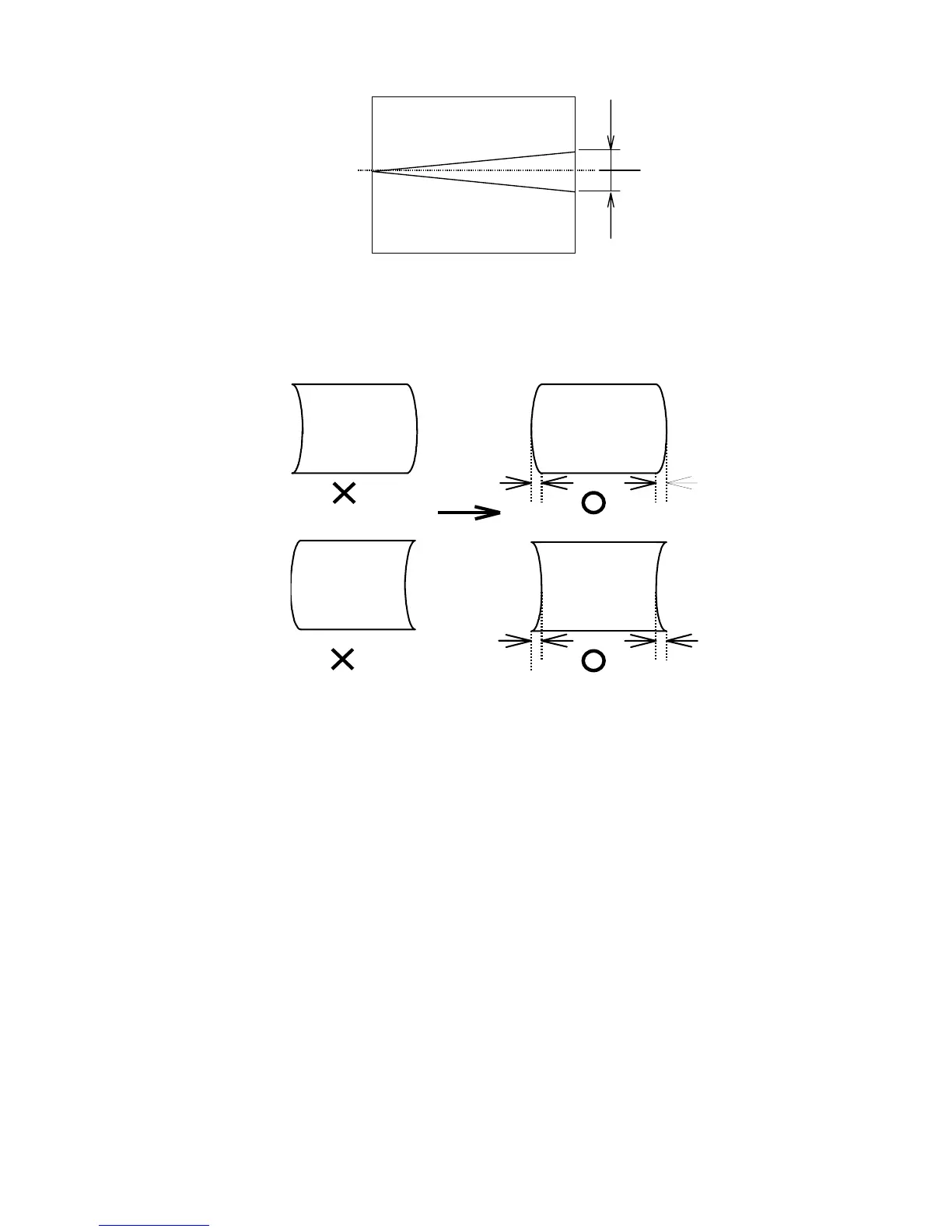

Fig 4-2 Picture Tilt
4-3. Side Pincushion Balance Adjustment Signal: No. 33 (788*1200@75Hz) All white
1) Open Menu (S), TAG3 "SIDE PIN BAL".
Adjust "+", "-" SW so that the difference of X
SL
and X
SR
is equal ( maximum 1.0 mm).
Xsl Xsr
Xsl Xsr
Fig 4-3 Side Pincushion Balance
