DATA PROGRAMMING
Assignment of FCH Related Data
STEP 2: AFRT (FUSION with FCH only)
Assign connection route numbers as shown below by using the AFRT command.

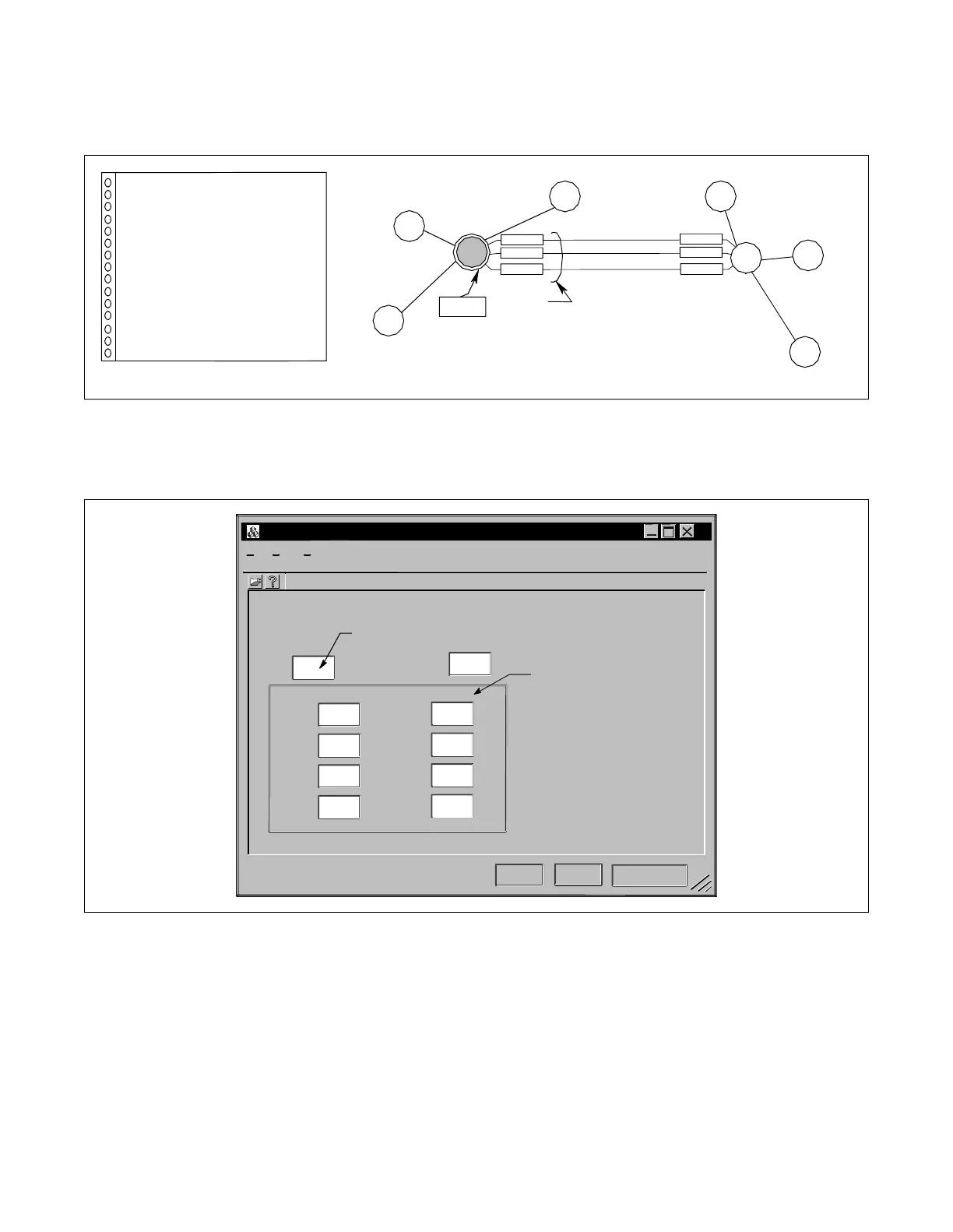

Figure 5-30 AFRT Sample Data Sheet
The AFRT command display should look similar to Figure 5-31.
Figure 5-31 AFRT Command Display
FCHN = 1
CNT = 1 C_RT : 10
LN
LN
LN
LN
LN
LN
NCN
1
2
C_RT=10
Node A
Node B
FCIC=1
FCHN=1
FCIC=1
FCIC=2
FCIC=n
FCIC=2
FCIC=n
TRK 1
TRK 10
TRK 3
TRK 31
TRK 32
TRK 40
.
.
.
.
.
.
Self-Node
Untitled - EclipseCmd
File View
Help
FCHN
For Help, press F1
AFRT (Assignment of FCCH Controlled Connection Route Data for LDM)
WRT?
Connection Route
Assign FCHN (1-255)
CNT
CNT
C_RT
C_RT
1
2
3
4
5
6
7
8
1
10
Y
To Next Page
