NEC NEAX 2400 IPX User Manual

NDA-24299 CHAPTER 5
Page 93
Revision 1.0
DATA PROGRAMMING
Assignment of FCH Related Data

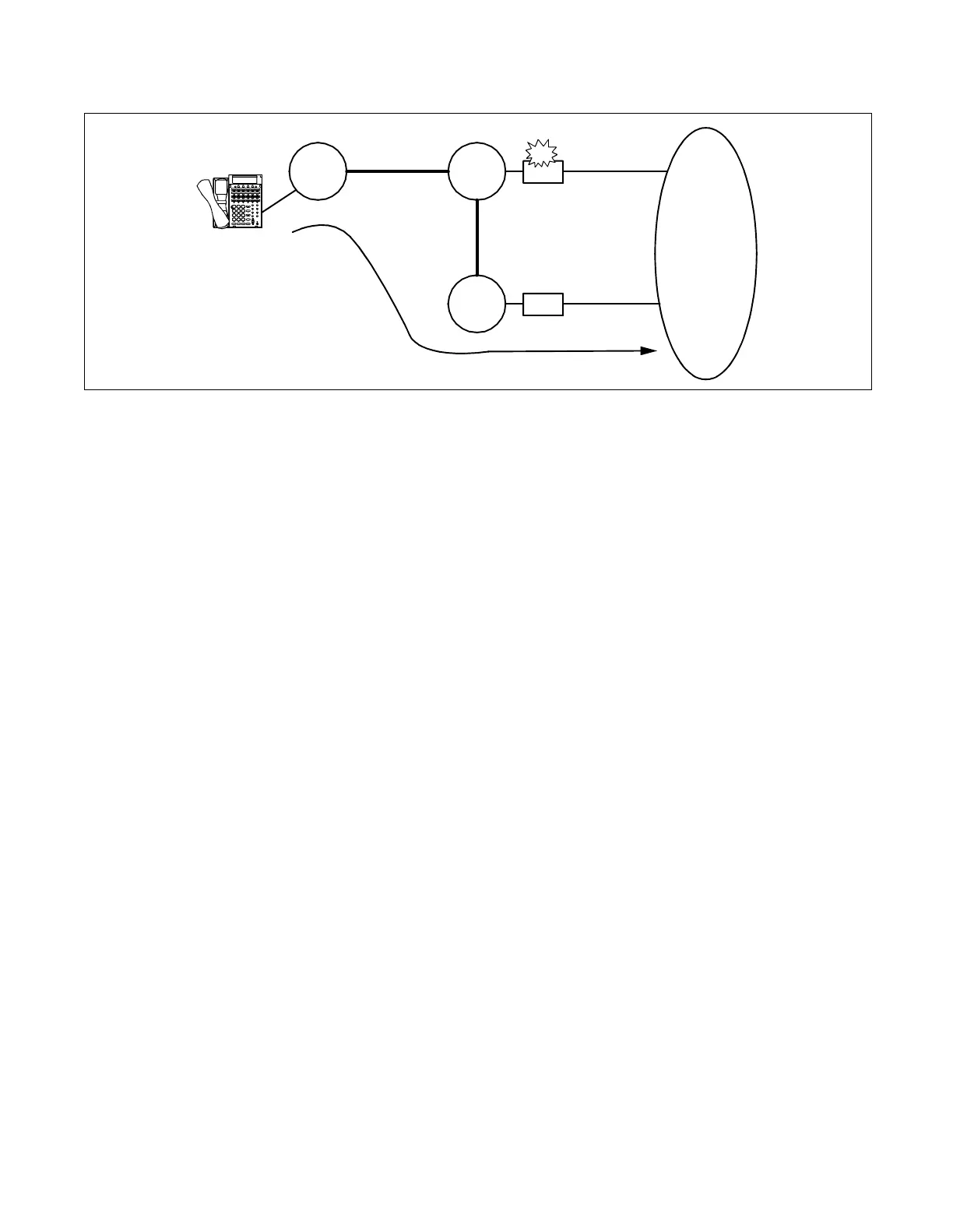

Figure 5-40 Example of OGCA
STEP 1: ANPDN/ANPDL
Note
Assign the first digit of the OGCA access code. When the access code is common to all nodes, use
the ANPDN command. When the access code is assigned for each node, use the ANPDL command.
1st DC=9 CI=N (Normal) NND=1
1st DC=9 CI=H (Hooking)NND=1
STEP 2: ASPAN/ASPAL
Note
Assign the OGCA access code. When the access code is common to all nodes, use the ASPAN
command. When the access code is assigned for each node, use the ASPAL command.
ACC=9 CI=N (Normal) SRV=OGCACOUNT=21st LGRT=1002nd LGRT=200
ACC=9 CI=H (Hooking) SRV=OGCACOUNT=21st LGRT=1002nd LGRT=200
Note:
When entering the data in STEP 1 and STEP 2, do not mix the commands for LDM and NDM. Write the
data on the same data memory as shown below:
• When writing the data on the LDM: ANPDL (STEP 1) → ASPAL (STEP 2)
• When writing the data on the NDM: ANPDN (STEP 1)
→
ASPAN (STEP 2)
STN (C)
... ... ... ... ...
... ... ... ... ...
... ... ... ... ...
... ... ... ... ...
Node C
PSTN
1-303-456-7890
Station C dials
9-1-303-456-7890
FCCS
BUSY
FCCS
COT
Node B
Node A
LGRT:200
LGRT:100
COT
