NEC NP-UM330X User Manual

8
1. Introduction

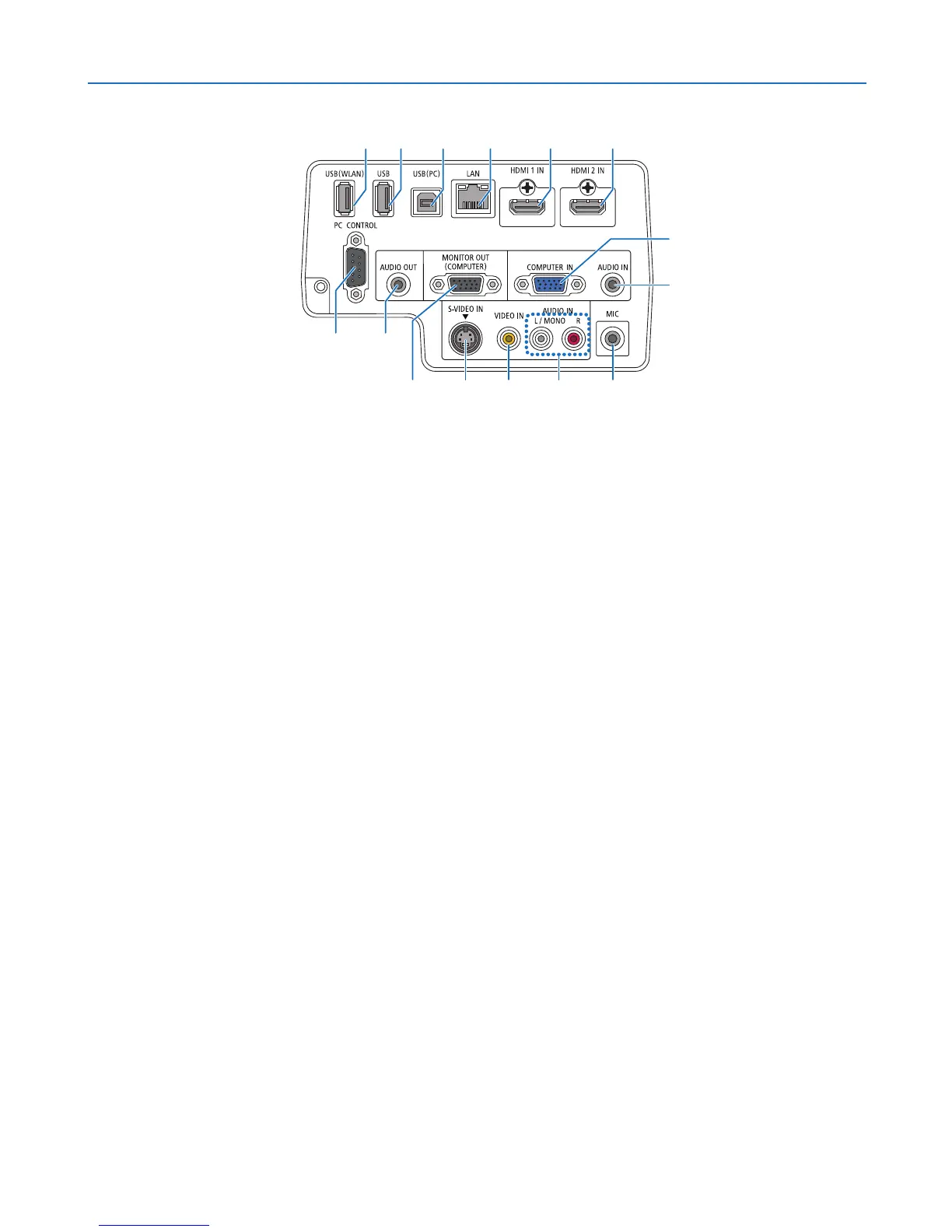

Terminal Panel Features
1. COMPUTERIN/ComponentInputConnector
(MiniD-Sub15Pin)(→page106, 110)
2. COMPUTERAUDIOINMiniJack(StereoMini)
(→
page106, 110)
3. HDMI1INConnector(TypeA)
(→
page106, 111)
4. HDMI2INConnector(TypeA)
(→
page106, 111)
5. USB(PC)Port(TypeB)
(→
page40, 41, 106)
6. MONITOROUT(COMPUTER)Connector(MiniD-
Sub15Pin)(→page108)
7. AUDIO OUT Mini Jack (Stereo Mini)(→ page
108)
8. S-VIDEOINConnector(MiniDIN4Pin)
(→page109)
9. VIDEOINConnector(RCA)(→page109)
10.VIDEO/S-VIDEOAUDIOINL/MONO,R(RCA)
(→
page109)
11.LANPort(RJ-45)(→page112)
12.USBPort(TypeA)(→page64)
13.USB(WLAN)Port
 (ForoptionalUSBWirelessLANUnit)
(→page113)
14.PCCONTROL[PCCONTROL]Port(D-Sub9Pin)
(→
page134)
 Usethis port toconnecta PCorcontrol system.
Thisenablesyoutocontroltheprojectorusingserial
communicationprotocol.Ifyouarewritingyourown
program,typicalPCcontrolcodesareonpage134.
15.MICInputJack(MonauralMini)
(→page61)
1
2
35
7
86
10
14
9 15
111213 4
