Lens shifting range
This projector is equipped with a lens shift function (→ page 23) for adjusting the image position
using dials. Lens shifting is possible within the range shown below.
NOTE:
• In case lens shifted volume exceeds the below illustrated range, blur and shade may appear around ends of projected image.
Legend: V “Vertical” refers to the screen height and H “Horizontal” refers to the screen width. The
lens shift range is expressed as a ratio of height and width, respectively.
Lens shifting range:
Vertical direction: +60%, −0%
Horizontal direction: ±29%

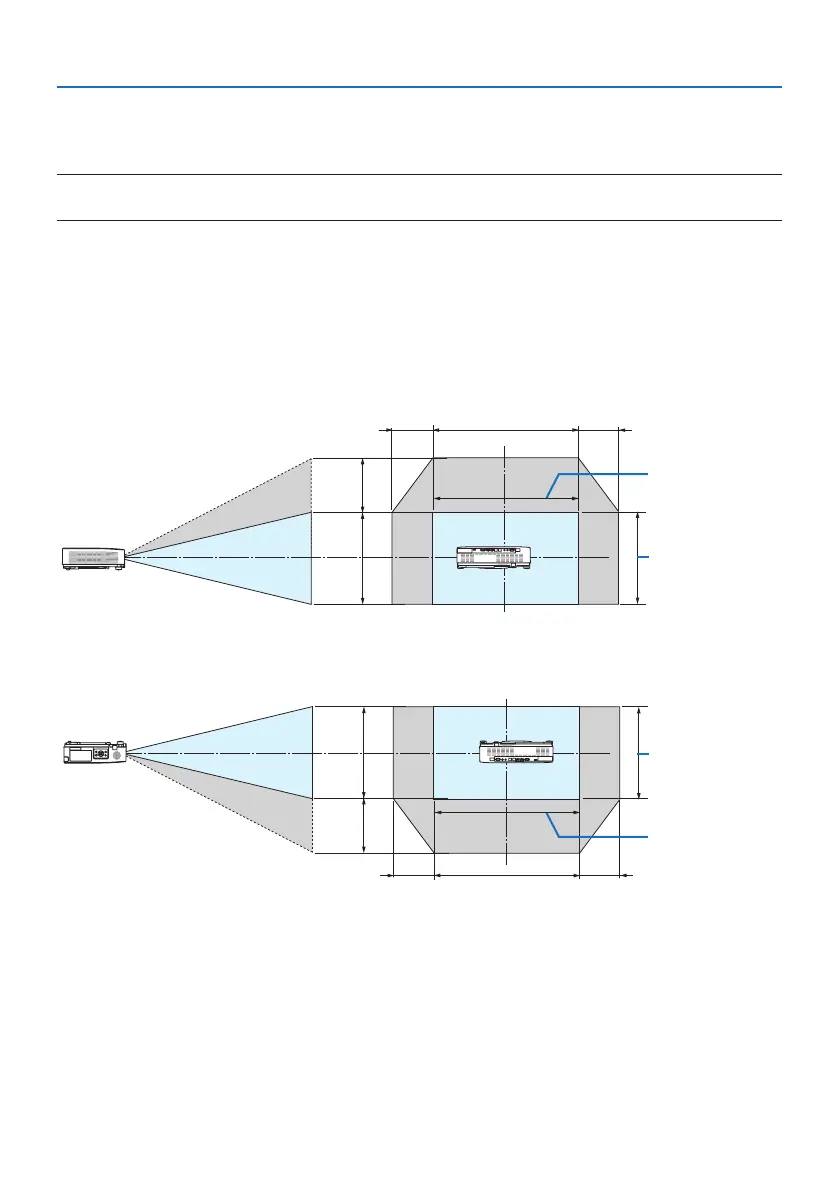

DESKTOP FRONT, DESKTOP REAR
100%V
60%V
100%H
29%H 29%H
Height of projected
Width of projected
CEILING FRONT, CEILING REAR
100%V
60%V
100%H29%H 29%H
Height of projected
Width of projected
(Example) When using to project on a 150" screen
According to the “Table of screen sizes and dimensions” (→ page 122), H = 127.2"/323.1 cm, V =
79.5"/201.9 cm.
Adjustment range in the vertical direction: the projected image can be moved upwards 0.60 ×
79.5"/201.9 cm ≈ 47.7"/121 cm (when the lens is at the center position).
Adjustment range in the horizontal direction: the projected image can be moved to the left 0.29 ×
127.2"/323.1 cm ≈ 36.9"/94 cm, to the right approximately 36.9"/94 cm.
* Figures differ by several % because the calculation is approximate.

NEC P525UL Specifications

General

Native aspect ratio	16:10
Projection distance	0.762 - 7.62 m
Projection technology	3LCD
Contrast ratio (dynamic)	520000:1
Contrast ratio (typical)	-
Screen size compatibility	30 - 300 \
Projector native resolution	WUXGA (1920x1200)
Keystone correction, horizontal	-30 - 30 °
Projector brightness (economic mode)	3000 ANSI lumens
Light source type	Laser
Service life of light source	20000 h
Zoom capability	Yes
Focal length range	- mm
Vertical lens shift range	0 - 60 °
Horizontal lens shift range	-29 - 29 °
DVI port	No
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	26 dB
Certification	CE; EAC; ErP; TUEV Type Approved; TüV GS
Number of OSD languages	30
Noise level (economic mode)	22 dB
Analog signal format system	NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Power consumption (typical)	330 W
Power consumption (economy mode)	240 W
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	RoHS
RMS rated power	20 W
Placement	Ceiling, Floor
Product type	Standard throw projector
Product color	White
Cable lock slot type	Kensington
Harmonized System (HS) code	85286200

Weight and Dimensions

Depth	407 mm
Width	480 mm
Height	122 mm
Weight	9700 g
