NEC VERSA DOCKING STATION 4000 - Printer Port

Pin Assignments B-3
PRINTER PORT

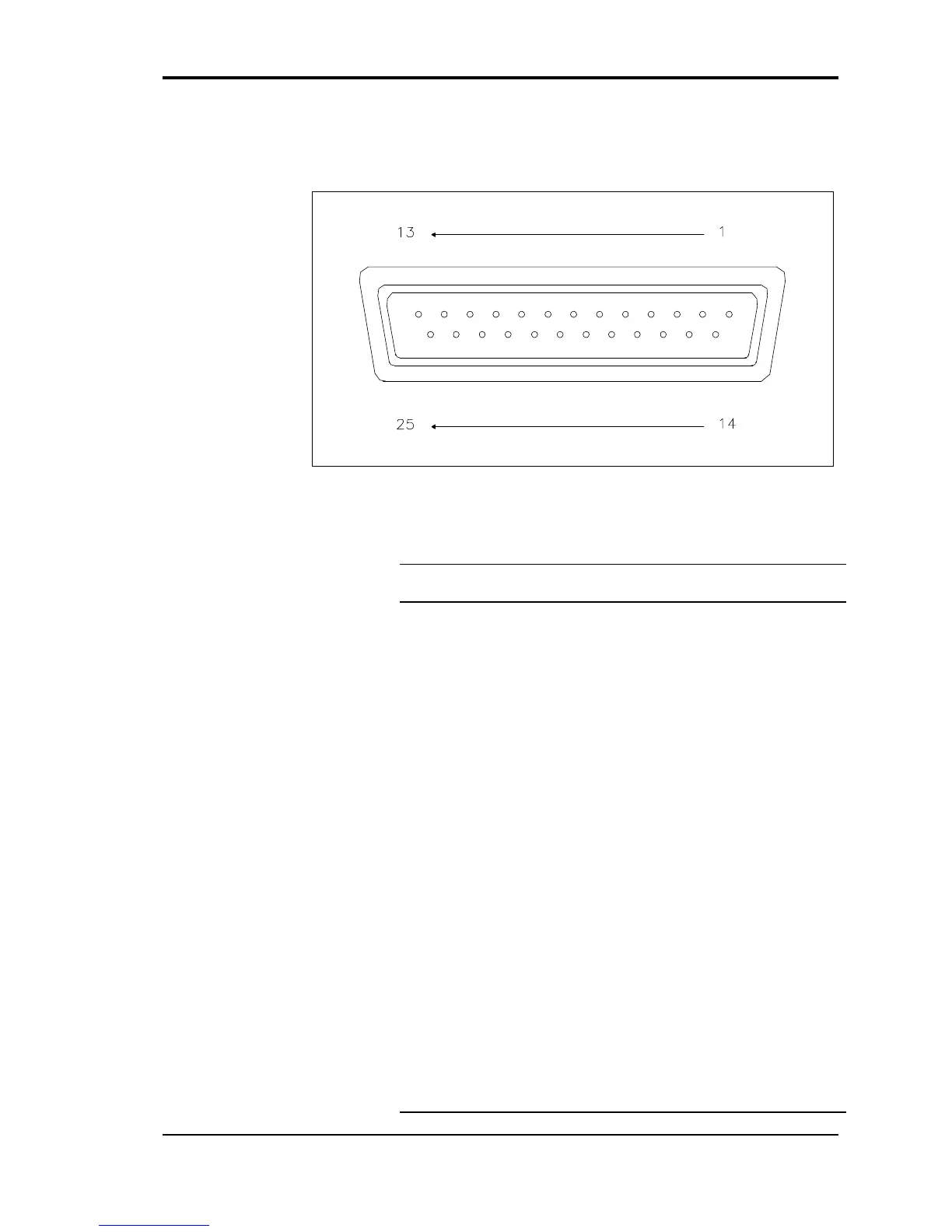

Printer port pin assignments are as follows.
Printer port
PRINTER PORT PIN ASSIGNMENTS
Pin Function
1 Strobe
2 Data Bit 0
3 Data Bit 1
4 Data Bit 2
5 Data Bit 3
6 Data Bit 4
7 Data Bit 5
8 Data Bit 6
9 Data Bit 7
10 Acknowledge
11 Busy
12 PE
13 Select
14 Auto Feed XT
15 Error
16 Initialize
17 Select In
18–25 Ground
