4-40 Adding Options
Attaching IDE Drive Cables
Attach IDE drive cables as follows.
1. Locate the IDE cable in the accessories bag that came
with your docking station.

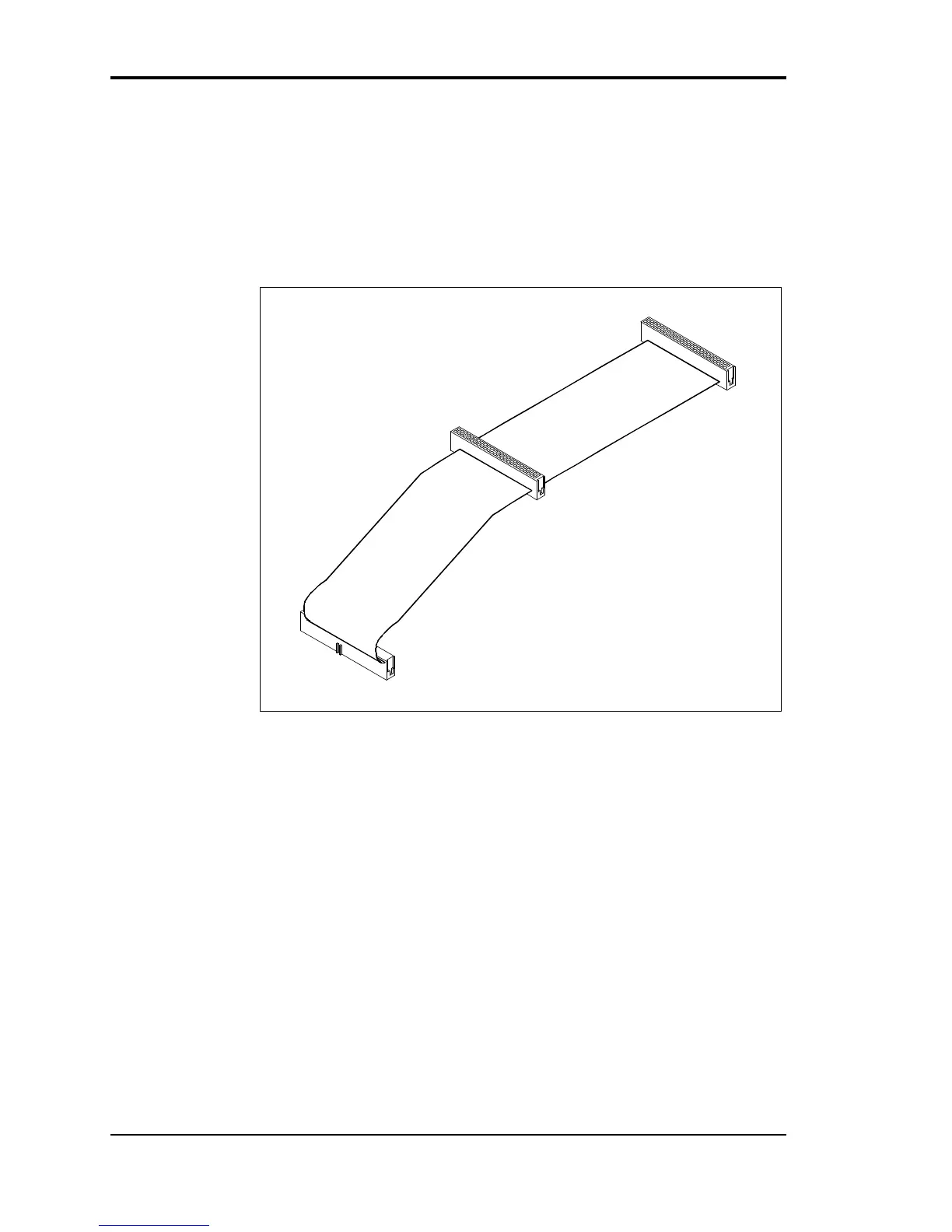

IDE Signal Cable
2. Connect the IDE cable to the IDE connector on the
docking station interface board. The connectors are
keyed to fit in only one position.
3. Route the cable over the edge of the interface board and
snake the cable behind the LED bracket.
