Adding Options 4-19

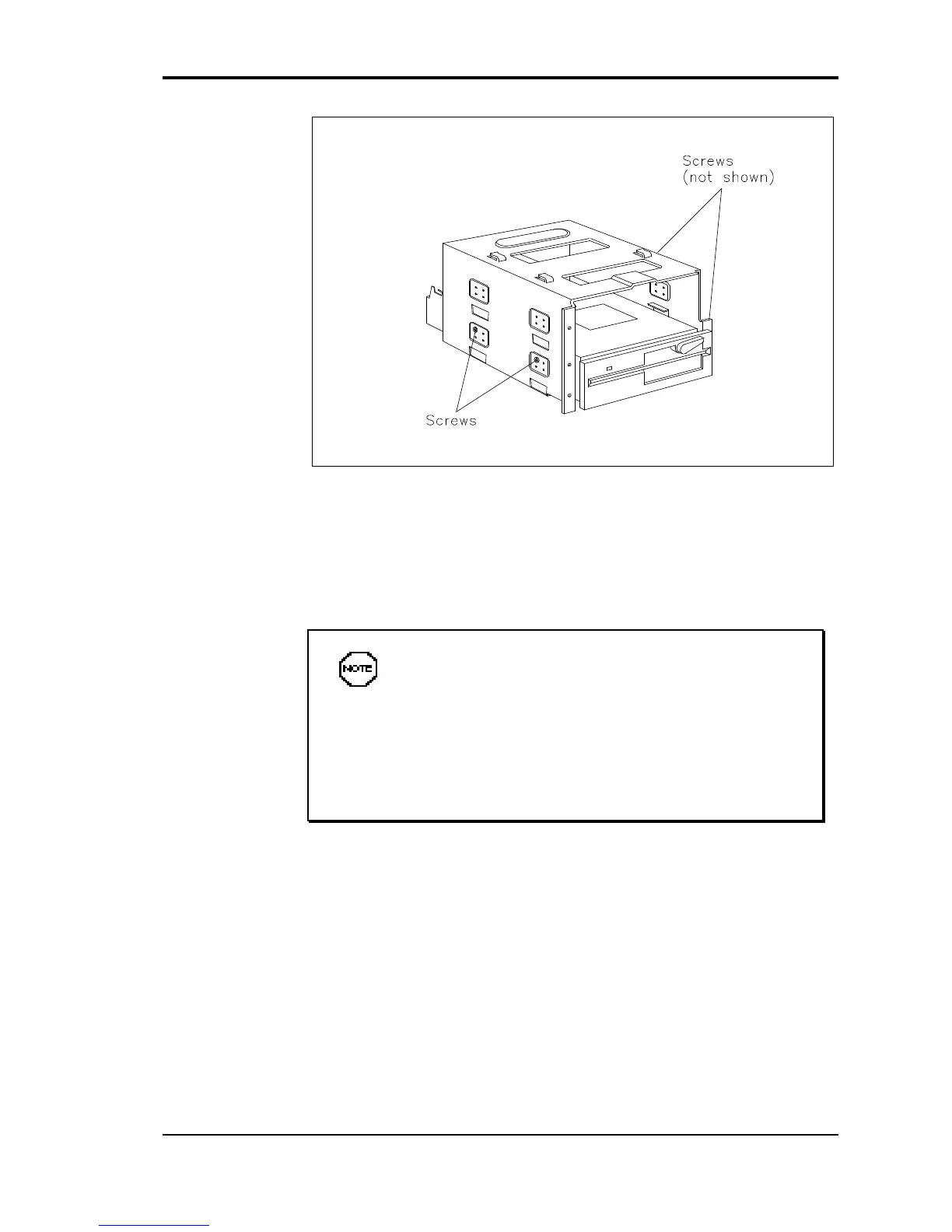

Securing the drive
Attaching the Cables
Attach drive cables as follows.
When connecting cables, align the cable con-
nector with the drive connector and position the red
edge of the cable as shown in the figures.
Taking care not to bend any pins, press the cable
connector firmly onto the pins.
1. Place the drive cage close to the docking station for easy
access to the connectors on the docking station interface
board.
2. Look in the package of cables that came with the dock-
ing station and locate drive power cable.
