4-32 Adding Options

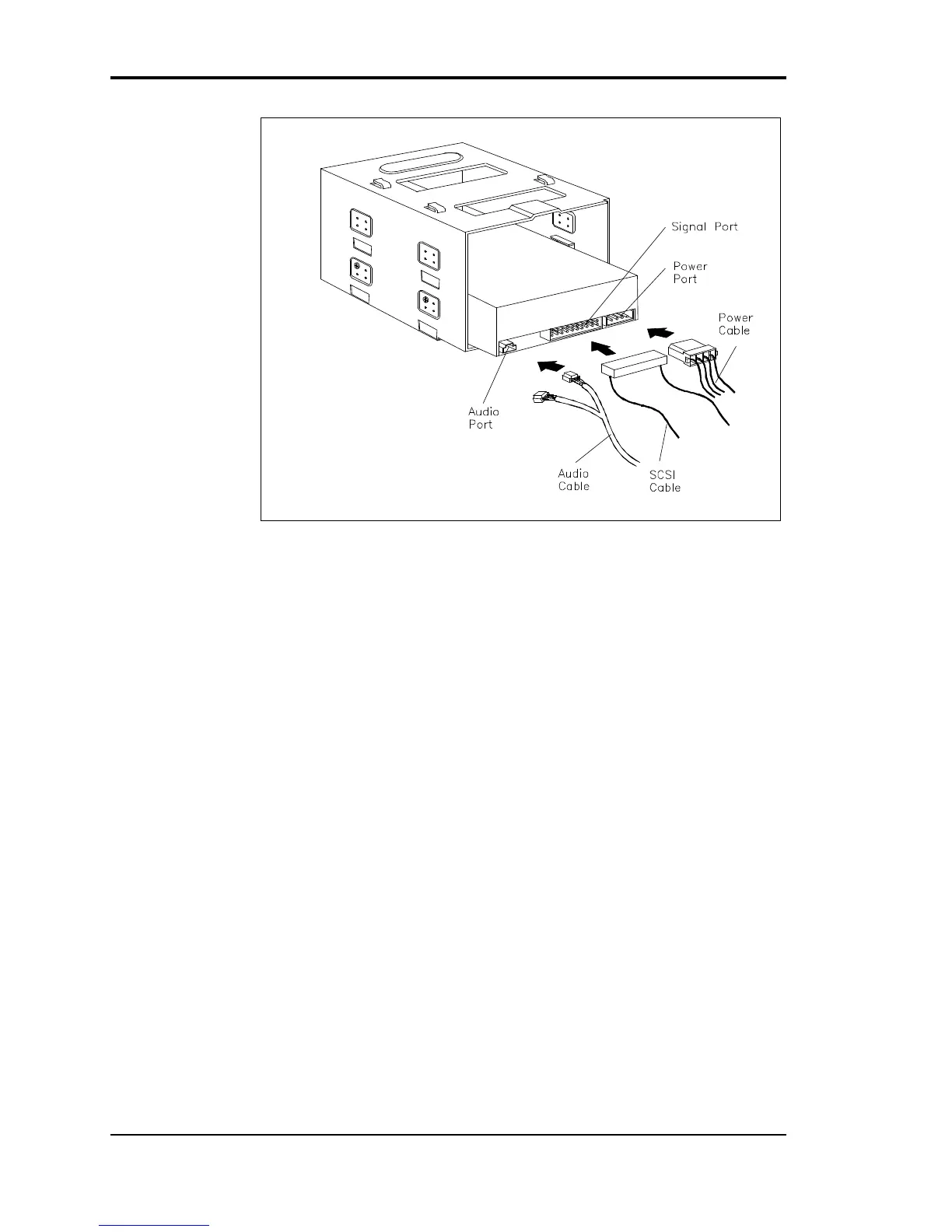

Connecting SCSI cables
5. To complete drive installation, go to “Finishing Up.”
Finishing Up
Finish up drive installation as follows.
1. Locate the tabs on the bottom of the docking station
chassis.
2. Position the drive cage a little behind the tabs and lower
it into the unit.
3. Slide the drive cage forward until the tabs slide into the
matching holes on the bottom of the drive cage.
4. Replace the two screws that secure the drive cage in the
docking station.
