Using the Hardware 4-37
8.
Reassemble the system as follows:
!
Lift up the keyboard and align the tabs on the front of it with the
system grooves in the system.
!
Reseat the keyboard in its original position.
!
Slide the keyboard retainers back onto the system.

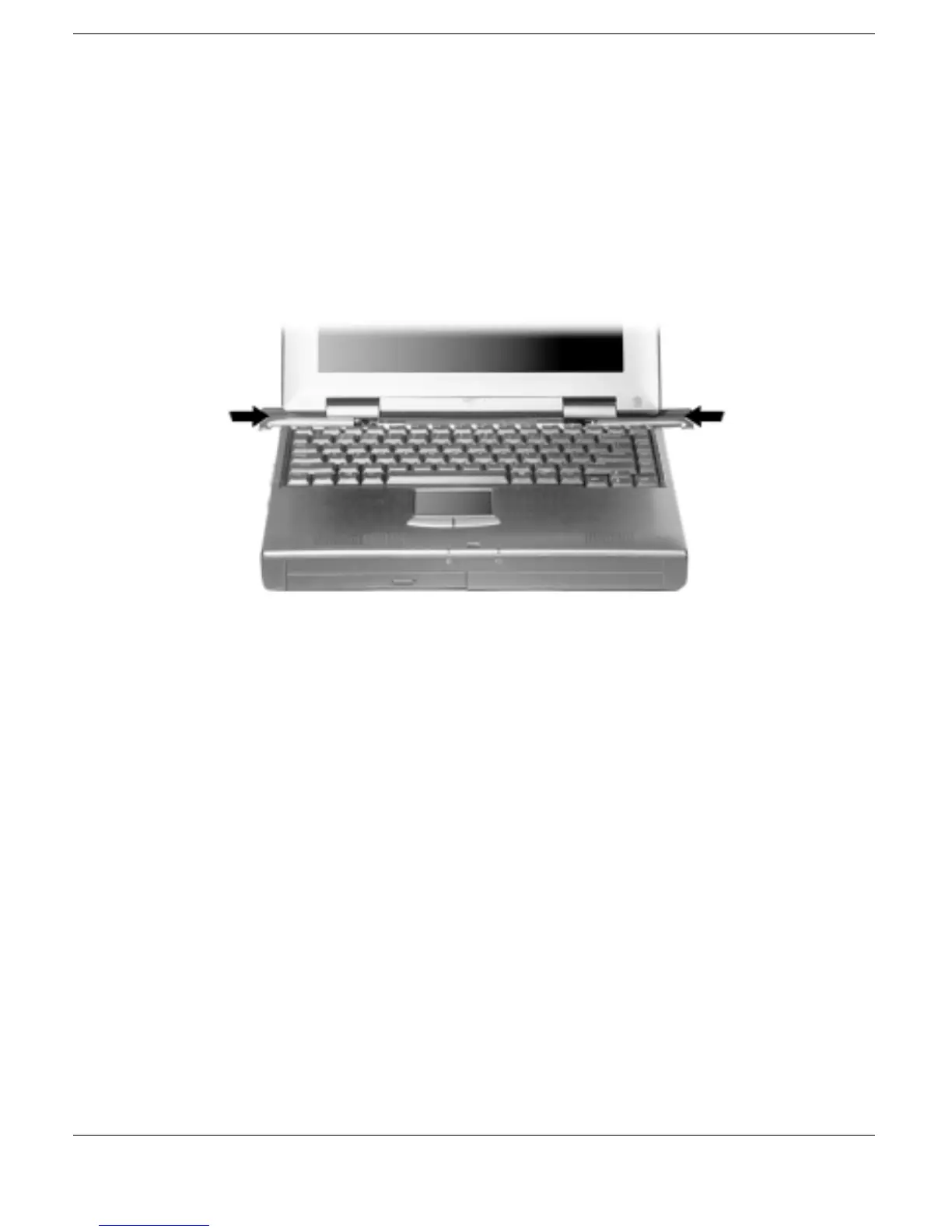

Reassembling the system
Switch Settings: six-position dip switch
A six- or four-position dip switch is located underneath the keyboard. The
following list identifies each switch setting and its function.
!
Switch 1, Password Override Switch — The default setting is “OFF.”
If you forget your password and cannot access the data on your NEC
Versa, change the setting to “ON” and your current password is
erased.
!
Switch 2 — Keyboard select; Default is “ON” for U.S. 85 key
keyboard.
!
Switch 3 — Reserved for factory use; Default is “ON.”
!
Switch 4 — Keyboard select; Default is “ON” for U.S. 85 key
keyboard.
