espresso Boiler conTrol Board
The board will control the action of the espresso boiler
heating element.
The board is arranged on the espresso shelf.
currenT regulaTor Board
The current regulator board will supply lighting LEDs by
means of direct current.
The board will provide for the constant brightness of
aesthetic panels.
The board is arranged at the bottom of the coin mecha-
nism compartment.

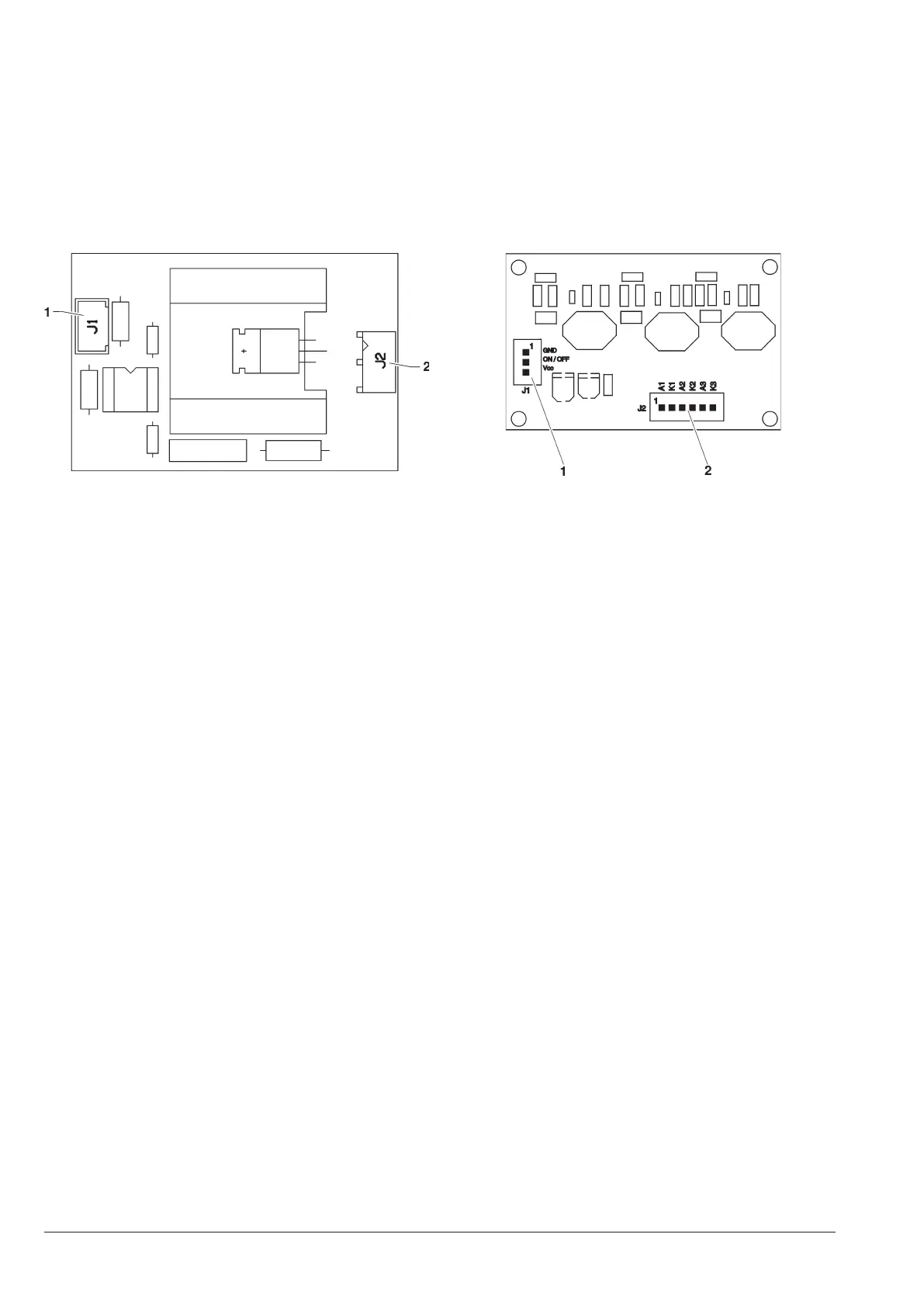

Fig. 41
1- To the actuation board
2- Connector with the boiler heating element
Fig, 42
1- To the CPU board
2- To the lighting LEDs
