Necta Canto Plus Espresso - Page 61

© by N&W GLOBAL VENDING S.p.A. 55 10 2009 3325 - 00
1- Water inlet solenoid valve
2- Liquid waste bucket
3- Vibration pump
4- Volumetric counter
5- Espresso solenoid valve
6- Coffee boiler
7- Espresso unit
8- Espresso tray
9- Small nozzle plate
10- Mixers
11- Dispensing nozzles
12- Safety thermostat
13- Anti-boil thermostat
14- Rotation instant pumps
15- Air-break
16- Instant boiler tray
17- Mechanical filter
18- Hot water cock (optional)

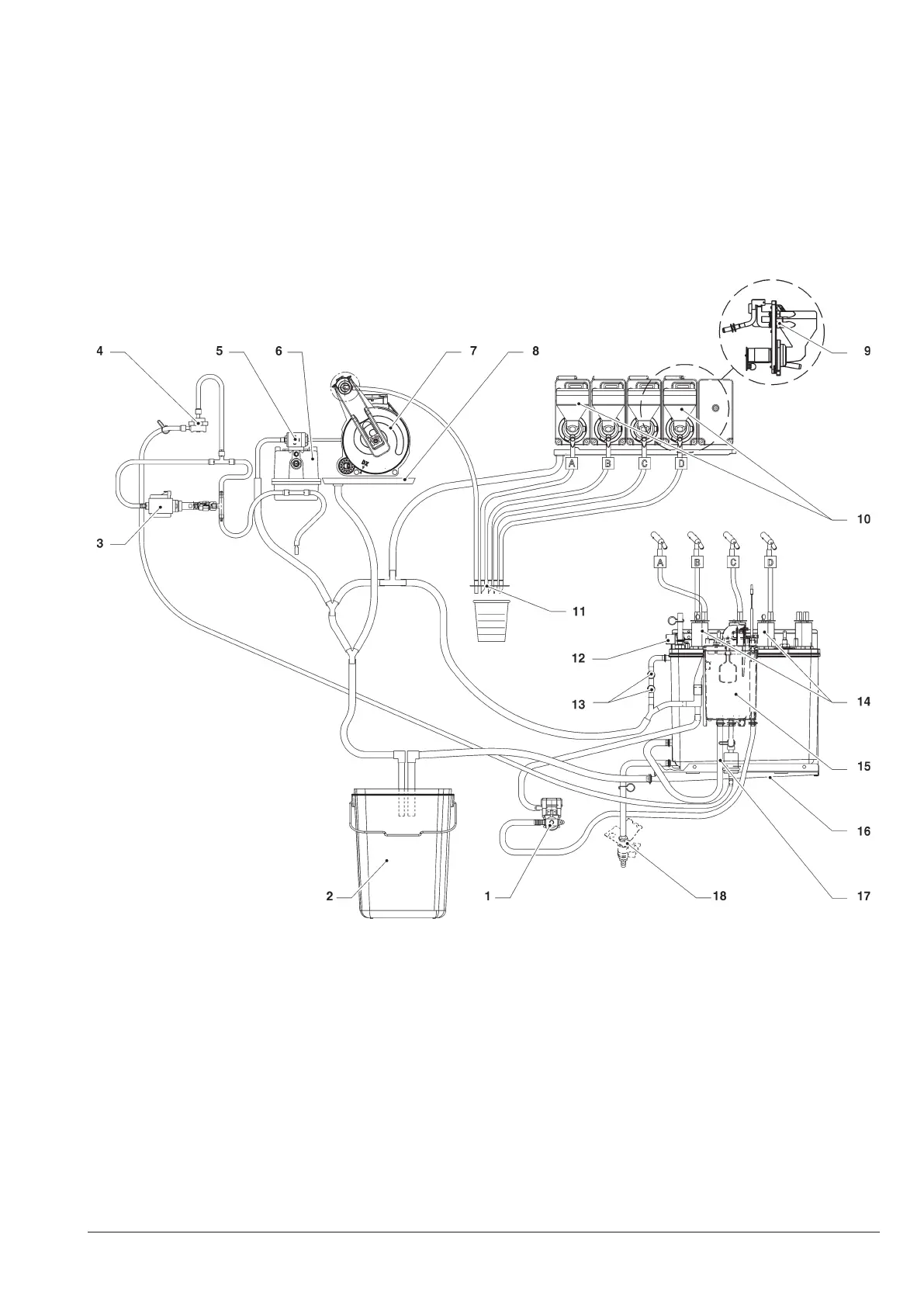

ESPRESSO WATER CIRCUIT
