SOFTWARE UPDATE
Attention !!!
It is recommended to disconnect the motor connectors
ELECTRIC PANEL
The electric panel is accommodated in the slide-in com-
-
protection, to access the connectors in the front of the
Before replacing any fuse, please detach the power
supply cable from the mains.
ACCESS TO THE MULTIMAX TRAY
ELECTROMAGNETS
The jaws of every single compartment are operated by
the respective electromagnets beneath the belt compart-
To access the electromagnets, act as follows:
-
Detach the electric connector from the tray -
Lift the tray to release the retaining slide -
Remove the tray from the machine -
Remove the screws intended to fasten the motor pro- -
tection covers
- -
-
Remove the tray base from the compartments -
-
-

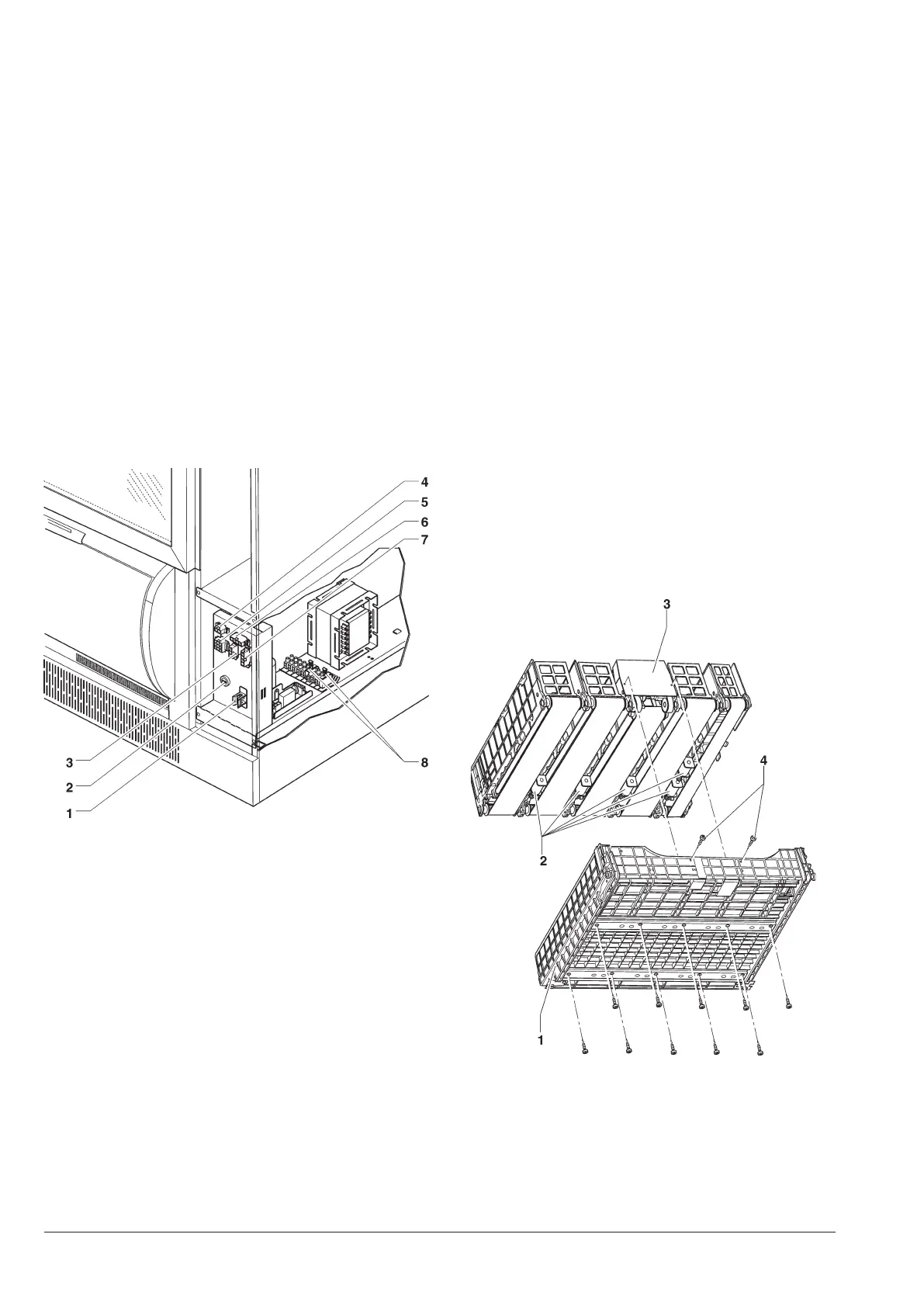

Fig. 42
Main switch1-
Line fuse2-
Glassfront frame heating element connector3-
Back heating element connector4-
CPU power supply connector5-
230V pre-arrangement6-
Motor-driven fan compressor connector7-
Transformer protection fuse8-
Fig. 43
Tray base1-
Electromagnets2-
Motor protection cover3-
Motor protection cover fastening screws4-
