© by N&W GLOBAL VENDING S.p.A. 51 12 2008 3335 00
ACCESS TO THE COOLING UNIT
for any reason whatsoever, please act as follows:
Detach the machine from the mains -
-
Remove the vandal-proof grid -
-
-
To reassemble, act in the reverse order -

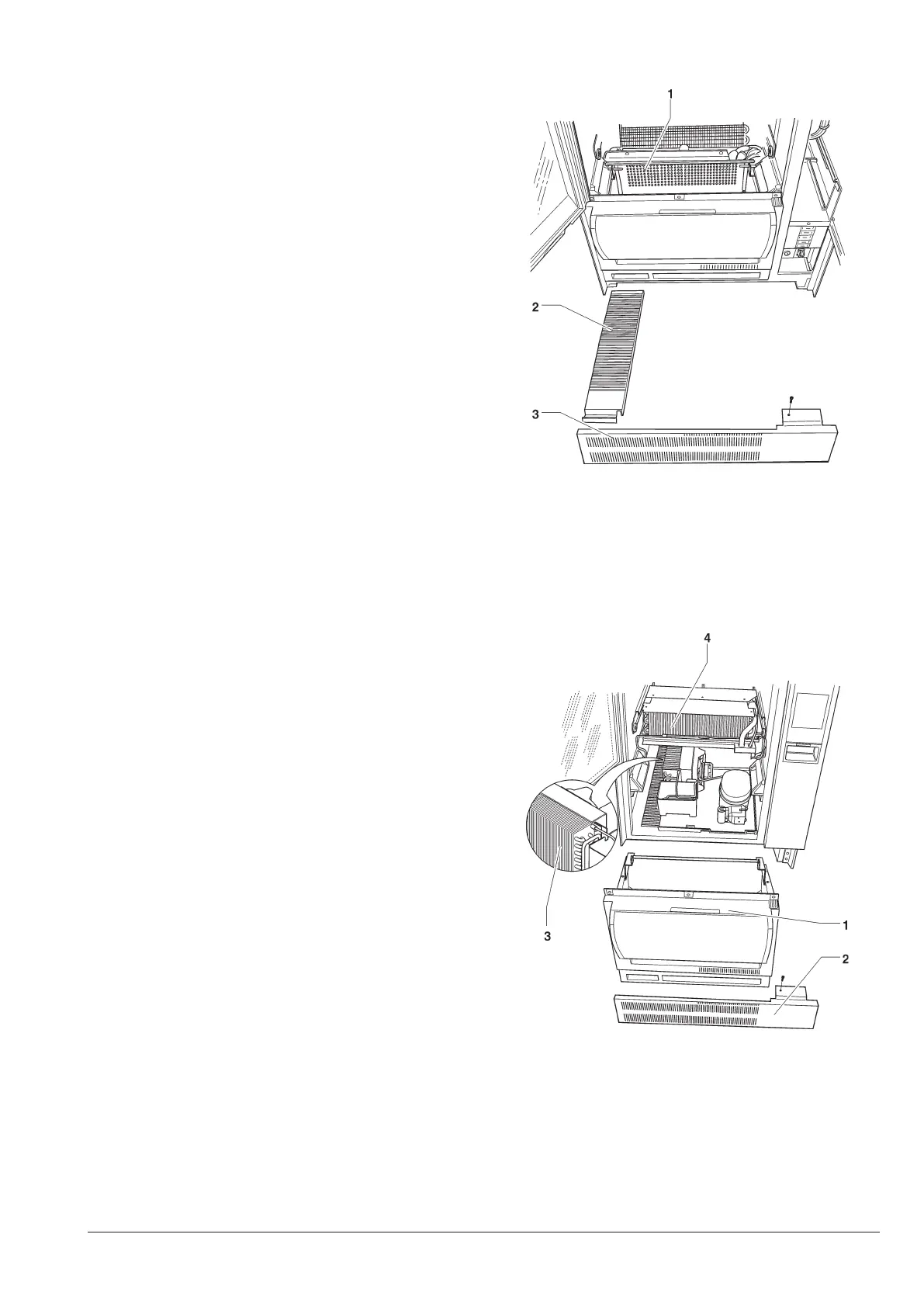

Fig. 44
Vandal-proof grid1-
Removable grid2-
Feet cover3-
Fig. 45
Dispensing compartment1-
Feet cover2-
Condenser3-
Evaporator4-
