Chapter 1
LOADING AND CLEANING
MAIN SWITCH
When extracting the sliding compartment,a special switch
(see Fig. 5) disconnects the power from the machine
electrical system to allow maintenance and cleaning op-
erations in full safety.
The only parts that stay energised are those protected
by covers and carrying a plate with the warning “dis-
connect the power before removing the cover”.
When dispensing sticks of candies or similar products, it is
possible to set the rotation of the spirals to 180° instead of
360° for the 75 mm compartments and use a special right
hand spiral fitted with a divider (see Fig. 7), doubling the
capacity of the compartments.
It is possible to insert a divider in the already installed
spirals (see Fig. 7).
As standard feature or using special kits, the machine can
be equipped with small compartments, suitable for dis-
pensing cans, plastic bottles up to 69 mm dia., 0.2 litre
Tetra-Paks.
The compartments equipped in this way can be recog-
nised by the shape of the product support bracket (see Fig.
8).
Some bottle types can be dispensed without using the
supports.
Most bottles can be dispensed without using any special
accessories, loading the bottles up side down, so that the
CONFIGURING THE SPIRALS
According to the size of the products to be dispensed, each
machine can be fitted with a variable number of trays
(maximum 7), removable partitions and with dispensing
spirals of different pitch.
The spirals can be housed either in 152 mm compartments
(two spirals, right-hand and left-hand, in each product
holder) for large size products, or into 75 mm compart-
ments (one right-hand spiral in each product holder) for
small size products.

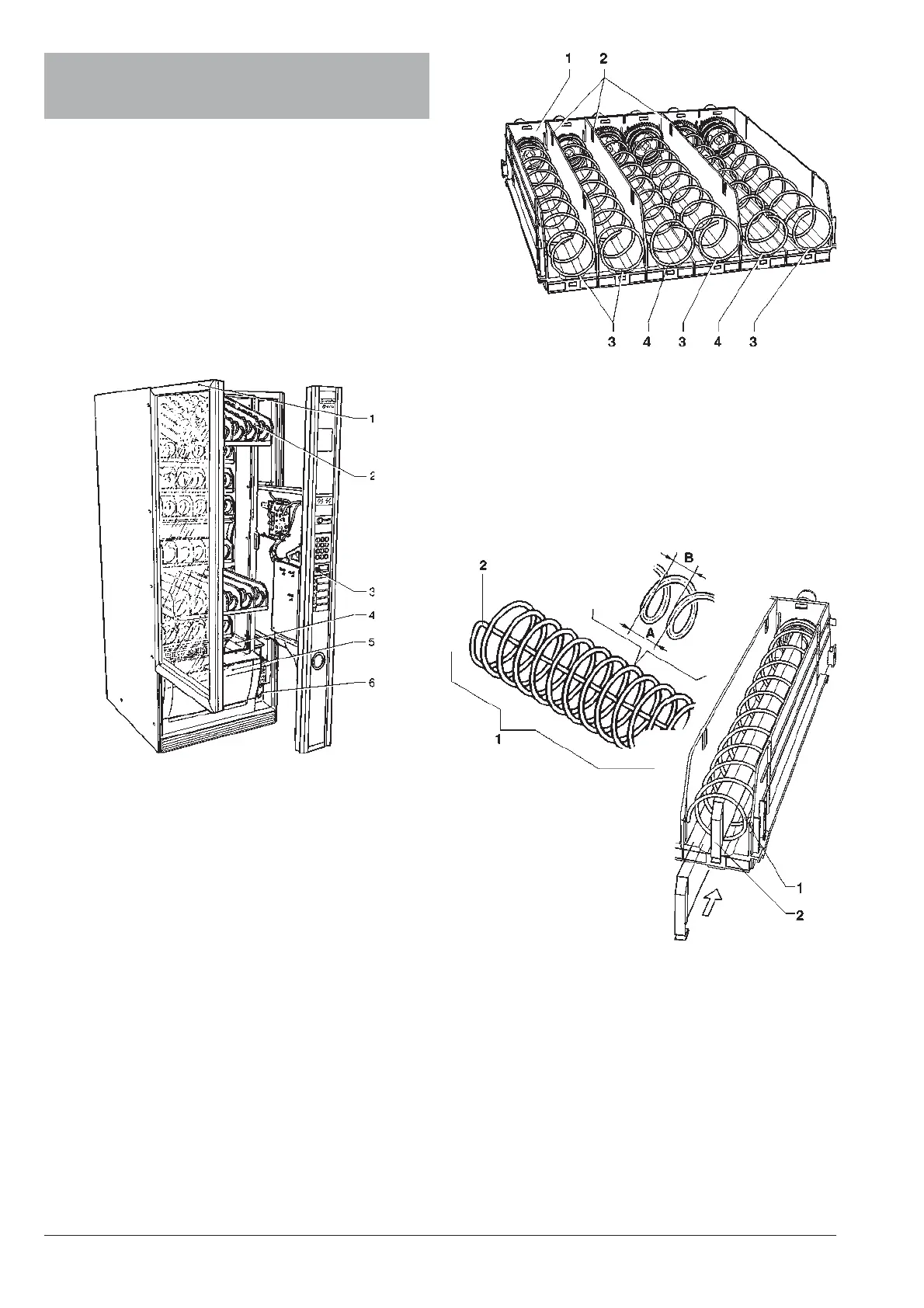

Fig. 5
1 - Door opening grip
2 - Trays
3 - Lock
4 - Product passage photocells (optional)
5 - Product dispensing compartment
6 - Main switch
7 - Sliding compartment
Fig. 6
1 - Tray
2 - Mobile walls
3 - Right-hand spiral
4 - Left-hand spiral
Fig. 7
1 - 180° rotation spiral
2 - Divider
A - Spiral pitch
B - Maximum product size
