POWER SUPPLY UNIT
Fuses, switch and connectors positioned at the front of the
power supply unit have the functions indicated below.
When replacing any fuses the power supply cable
must be disconnected from the mains.
ACCESS TO THE COOLING UNIT
If for any reason the cooling unit need to be accessed from
the machine, do as follows:
- remove the last tray
- remove the anti-theft grille
- undo the fastening screws from the product dispensing
compartment and remove it
- For reassembly, proceed in the reverse order.

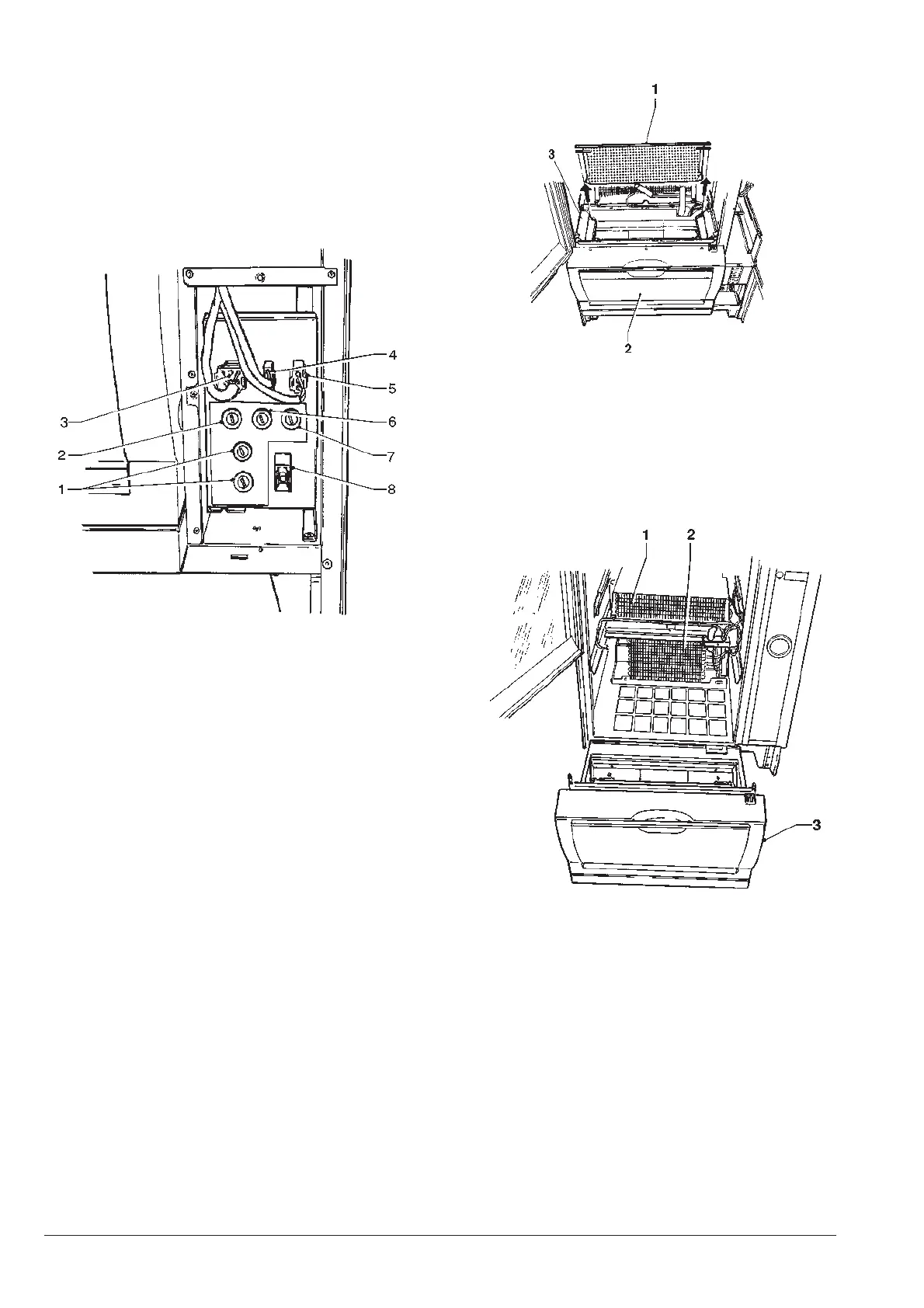

Fig. 24
1 Line fuses
2 Transformer primary winding protection fuse
3 CPU board power supply connector
4 Lamp connector
5 Compressor and fan connector
6 Transformer secondary winding protection fuse
7 Transformer secondary winding protection fuse
8 Payment system compartment switch
Fig. 25
1 Anti-intrusion grille
2 Dispensing compartment
3 Photocell support
Fig. 26
1 Evaporator
2 Fan
3 Condenser
4 Dispensing compartment
