CONFIGURING THE TRAYS

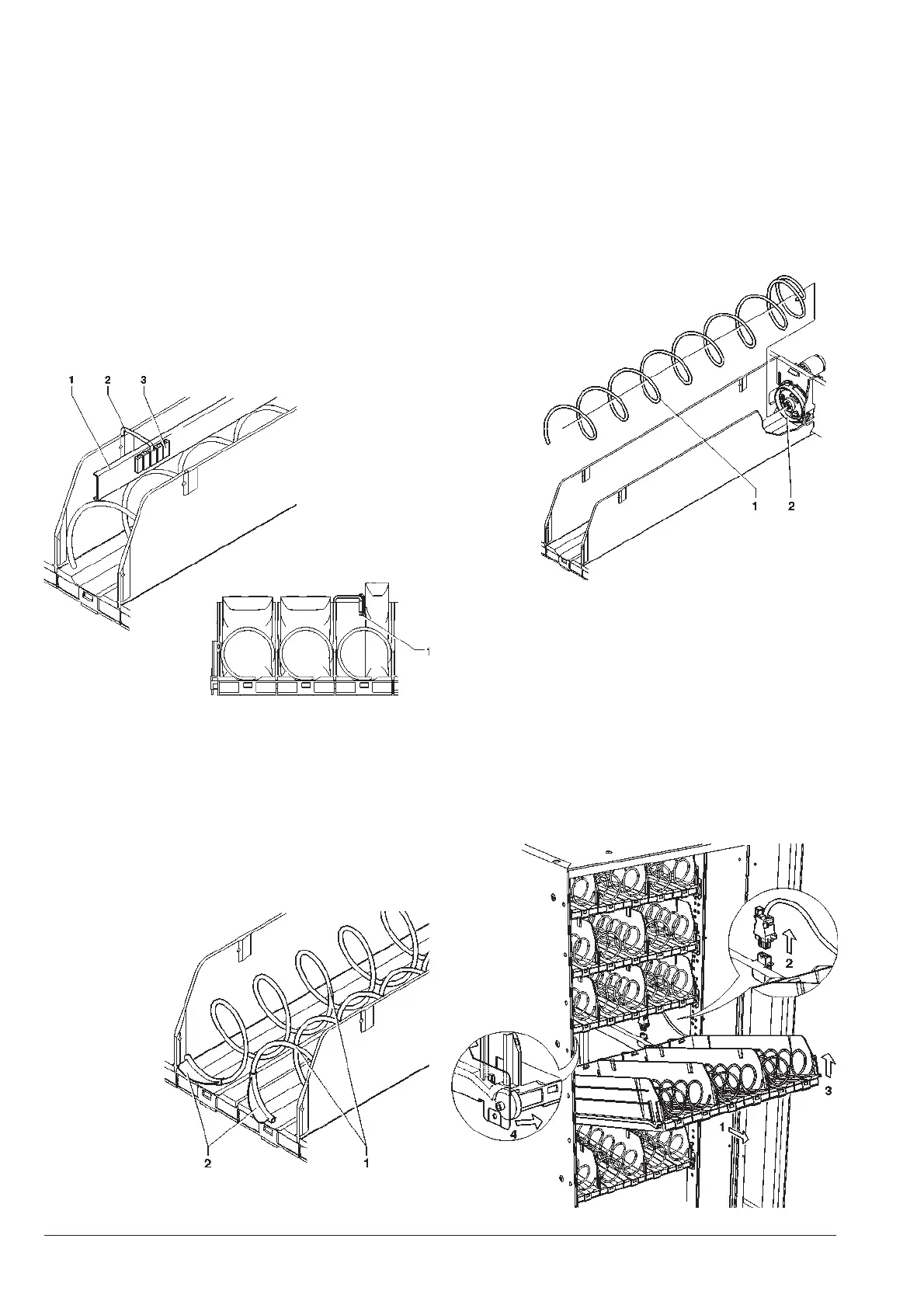

PRODUCT SPACERS
The spacers are used when loading “narrow” products.
The spacers should be fitted to contain products, without
blocking them, towards the right-hand side of the com-
partment, so that they stay upright. According to the type
of products, assess whether it is more convenient to use
the short or long side of the brackets and in which of the
five adjustment notches to connect them.
Pull the spacer towards the front to close the space and
push it back to open the space.
There must be at least 3 mm between the spacer and the
products.
Fig. 18
PRODUCT EJECTOR
The ejectors, right-hand and left-hand, must be used for
products packed in bags, such as potato crisps or similar.
As they are hooked at the end of the spiral they push the
products further out. If necessary slide the ejector along
the spiral wire to locate the most appropriate position
according to the product being dispensed.
REPLACING THE SPIRALS
In order to change the number and the set-up of the
product holders, proceed as follows:
- Slide out the concerned tray.
- Rotate the spiral in the opposite direction to the ejec-
tion rotation, holding the plastic support flange still, to
separate the two parts and fit the other spiral.
- Fit the new spiral assembly proceeding in the opposite
direction, ensuring that the spiral is positioned correctly
Fig. 21
REMOVING THE TRAYS
To replace the trays proceed as follows:
- Slide out the tray to be modified;
- remove the electrical connector from the tray;
- lift the tray to unblock the retaining slide.
- To fit a new tray, proceed in the opposite way.
1 - Product spacer
2 - Brackets
3 - Adjustment notches
Fig. 19
1 - Spirals
2 - Ejectors
Fig. 20
1 - Spiral
2 - Plastic flange
