Rear-Panel Switches
The rear panel includes eight switches for digital output and
adult/neonatal alarm limits.
Table 1: Rear-Panel Dip Switch
Switch Section Function
1 Adult/neonatal alarm settings
2, 3, 4, 5 RS-232 format
6 Not used
7, 8 Baud rate select
C-13-200 and C-20-200 Patient Modules
Caution: Use only an N-200 patient module. Using an
N-100 patient module may adversely affect oximeter
performance.
34
36 35

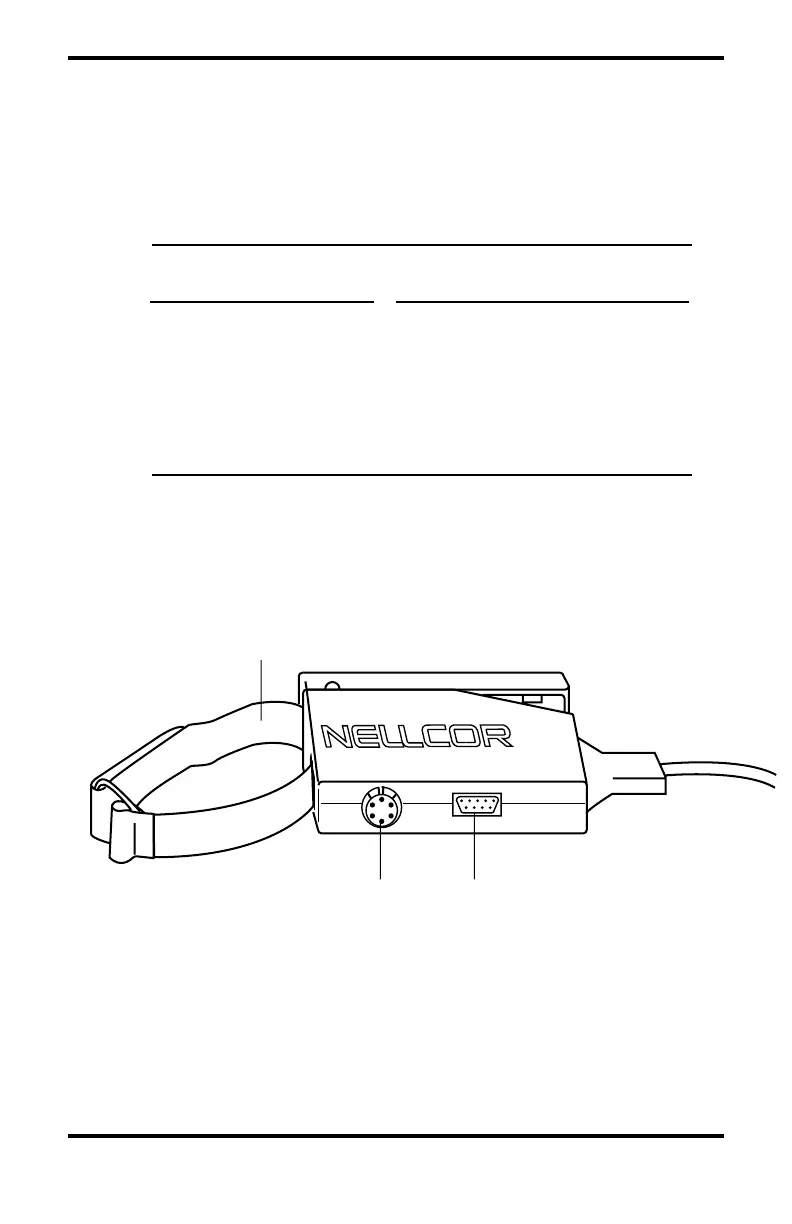

Figure 4: C-13-200 and C-20-200 Patient Modules
34. Self-adhering strap
35. Sensor connector: For NELLCOR sensors.
36. ECG connector: For a Nellcor-approved ECG cable.
