Nelson N800iTM - Page 33

Tucker GmbH, Mail / Post: Max-Eyth-Str.1, 35394 Gießen, Germany
Stud welding unit N800i
As of 24.08.2021
Manual part number: BE 1227
29

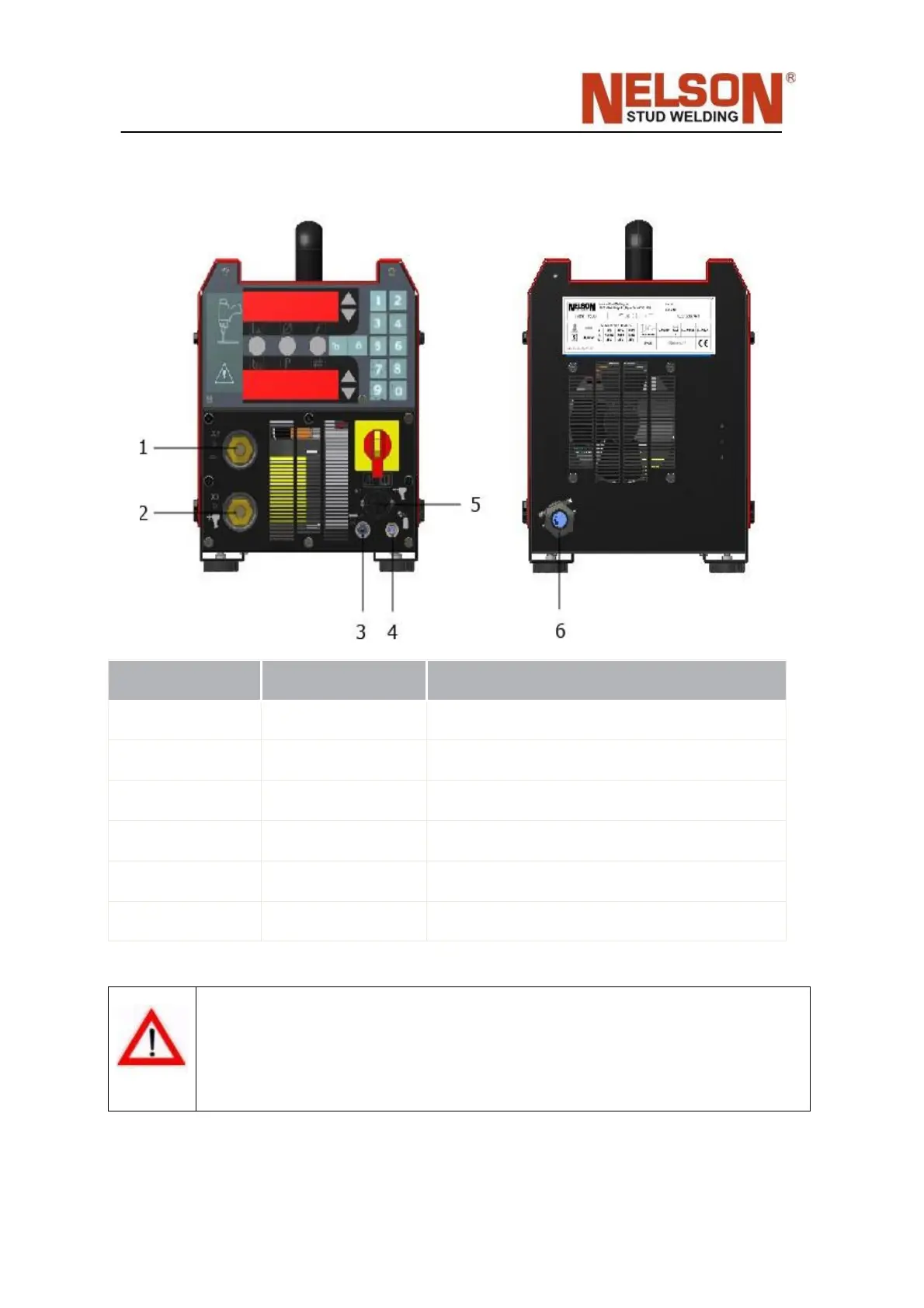

Pos.
Designation
Description
1
X3(+)
Welding cable connection
2
X2(-)
Welding cable connection
3
Gun
Gas connection Outpu
4
Bottle
Gas connection intput
5
X1
Control Cable connection
6
Mains cable connection
Warning!
Prior to any connection work the Nelweld N800i welding unit must be
switched off. The mains switch of the unit must be in the >>0<< position!
