4.3. Manual Test
Function: Used for testing the basic functions, connection between software and hardware is the
mainly function, details about testing as below:

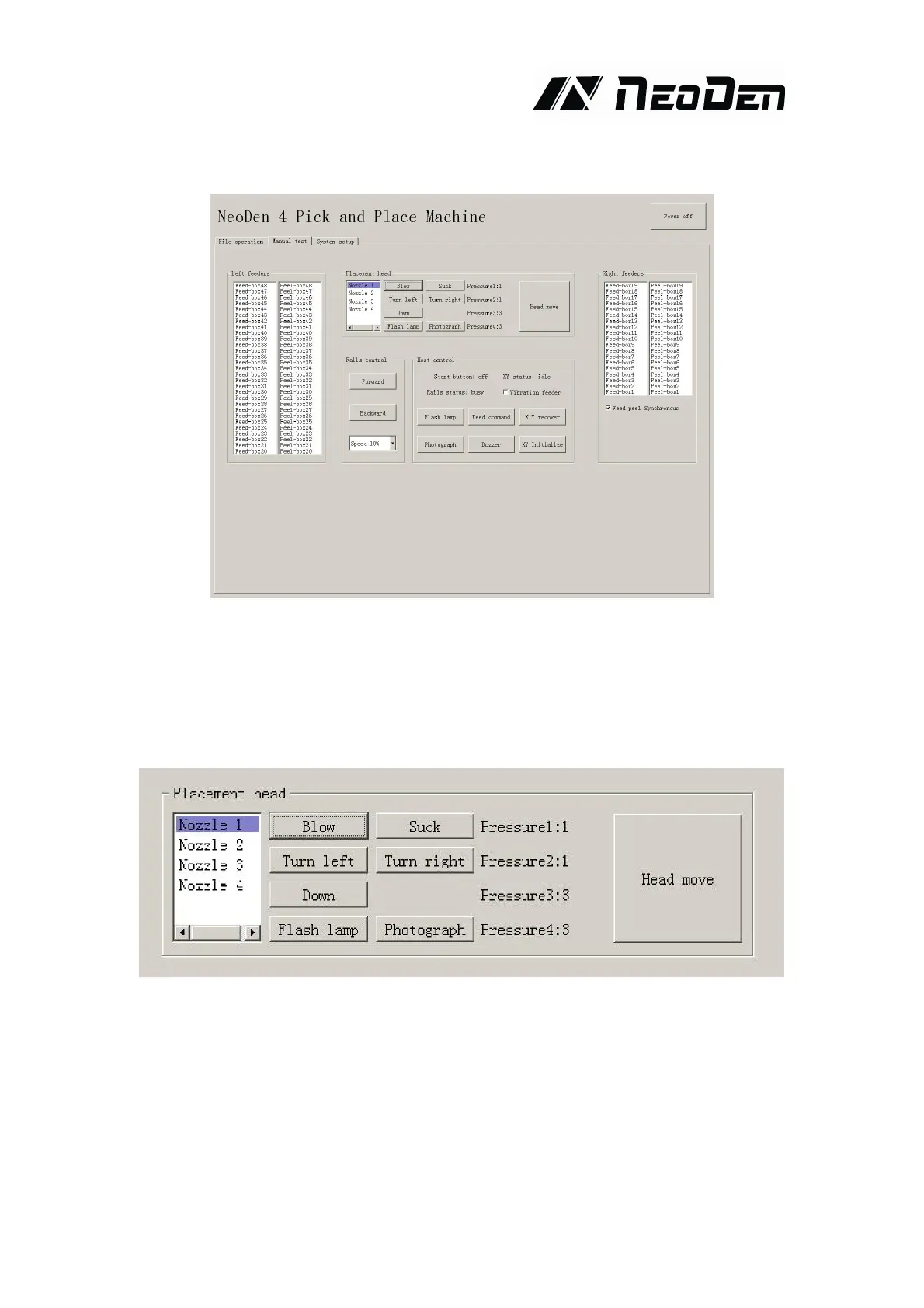

4.3.1.Placement head
Choose nozzle 1, nozzle 2, nozzle 3, nozzle 4 to test separately
Blow, after click this option, air will blow-off from selected nozzle
Suck, after click this option, suction action will appear from selected nozzle
Turn left& Turn right, selected nozzles will turn
Down, after click this option, selected nozzle will descend slowly
Down Looking Camera light, after click this option, Led light besides the camera will turn on
Down Looking Camera Photograph, after click this option will take a picture
Air pressure 1, 2, 3, 4,Based on the testing of nozzles, you can see pressure value of each
