1.2. Structure of NeoDen 4

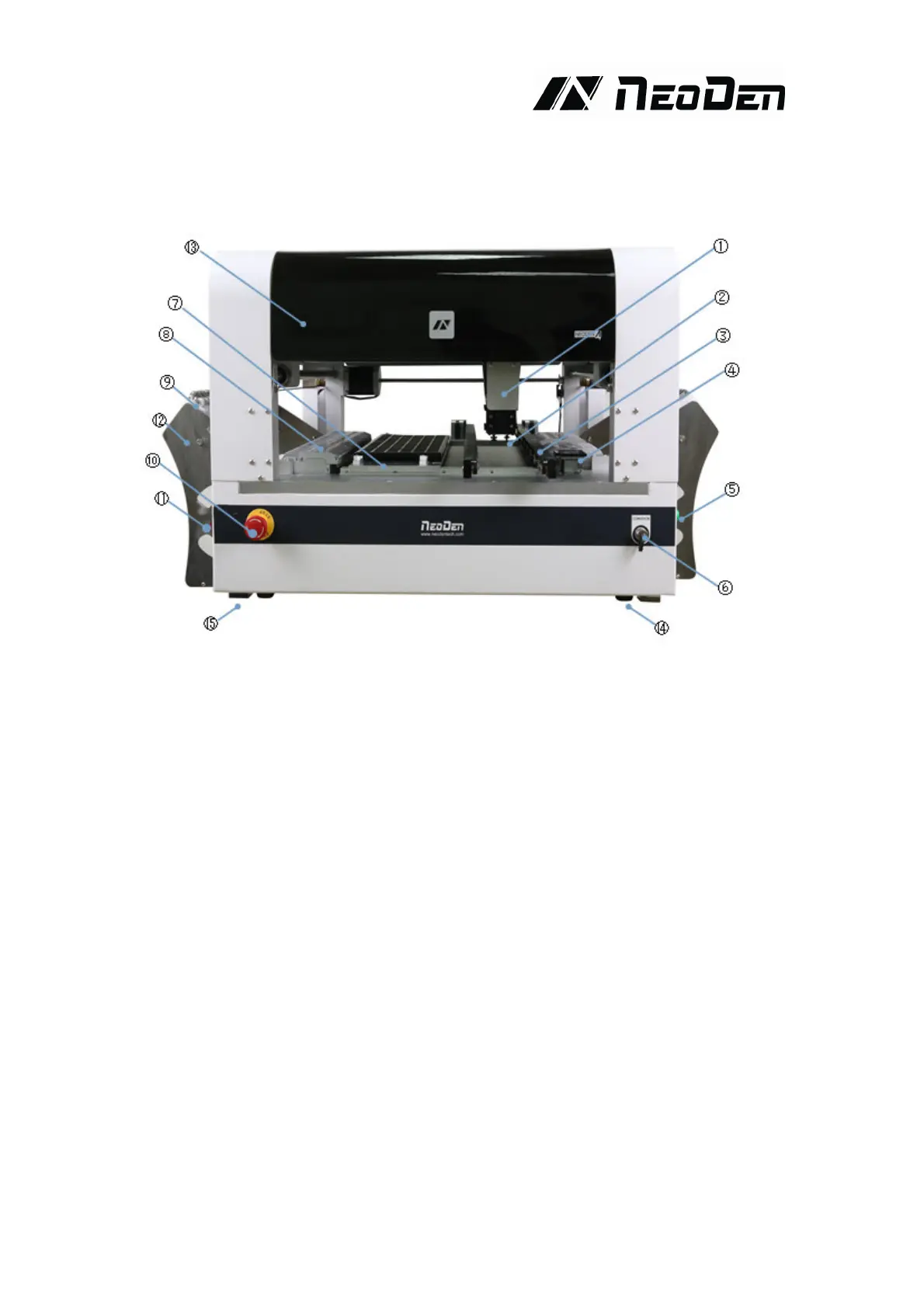

Each part mentioned above can be disassembled and tested. Please find more details on P20.
①：
Placement head
②
: Nozzle
③：
Rails
④：
Vibration feeder
⑤：
On/Off button
⑥：
Conveyor port
⑦：
Multi-hole positioning board
⑧：
Feed box
⑨：
Peel box
⑩：
Emergency button
⑪：
Power switch
⑫：
Rack shelf
⑬：
Acrylic cover
⑭：
Foot Mounts
⑮：
Fixed support
