NeoDen 4 - Nozzle

40
5.1.7.Nozzle

The
size
of
nozzle
Please
choose
nozzles
according
to
the
shape
and
size
of
components.

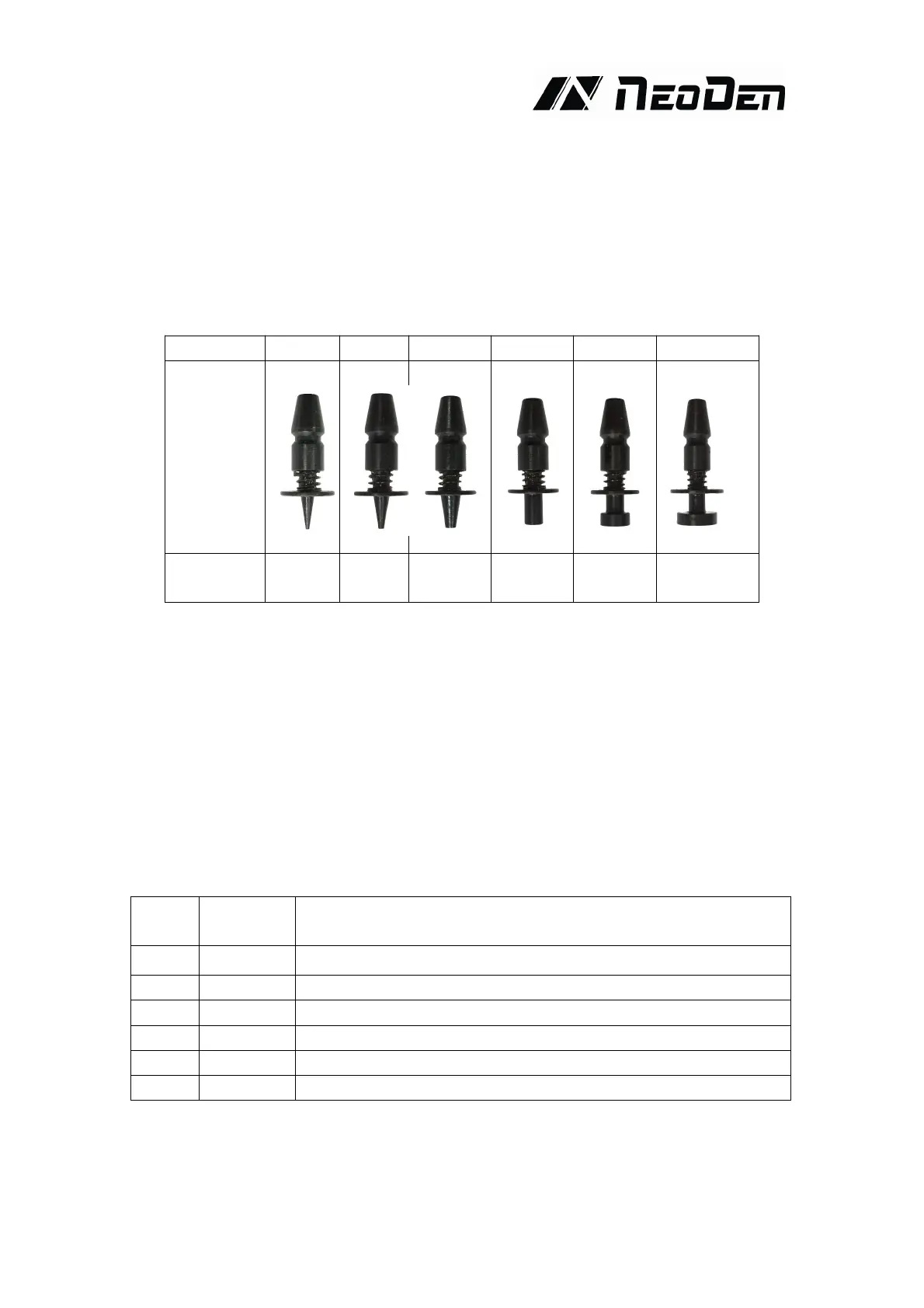

Table 1-1 Nozzle
Model XN03 XN07 XN14 XN22 XN40 XN75
Illustration
Inner
diameter
0.3mm 0.7mm 1.4mm 2.2mm 4mm 7.5mm

Reference
of
nozzle
selection
In
order
to
assure
placement
accuracy,
please
select
nozzles
according
to
the
shape
and
size
of
components.
Table 1-2 Size comparison of nozzles
Size Minimum
diameter
Recommendation
XN03 0.2mm 0201,0402
XN07 0.5mm 0402,0603,0805,diode
XN14 1.2mm 1206,1210,1812,2010,SOT23,5050
XN22 2.0mm SOP series ICs,SOT89,SOT223,SOT252
XN40 4.0mm ICs from 5 to 12mm
XN75 7.5mm ICs bigger than 12mm
