NeoDen 4 - Auto-Rails

39

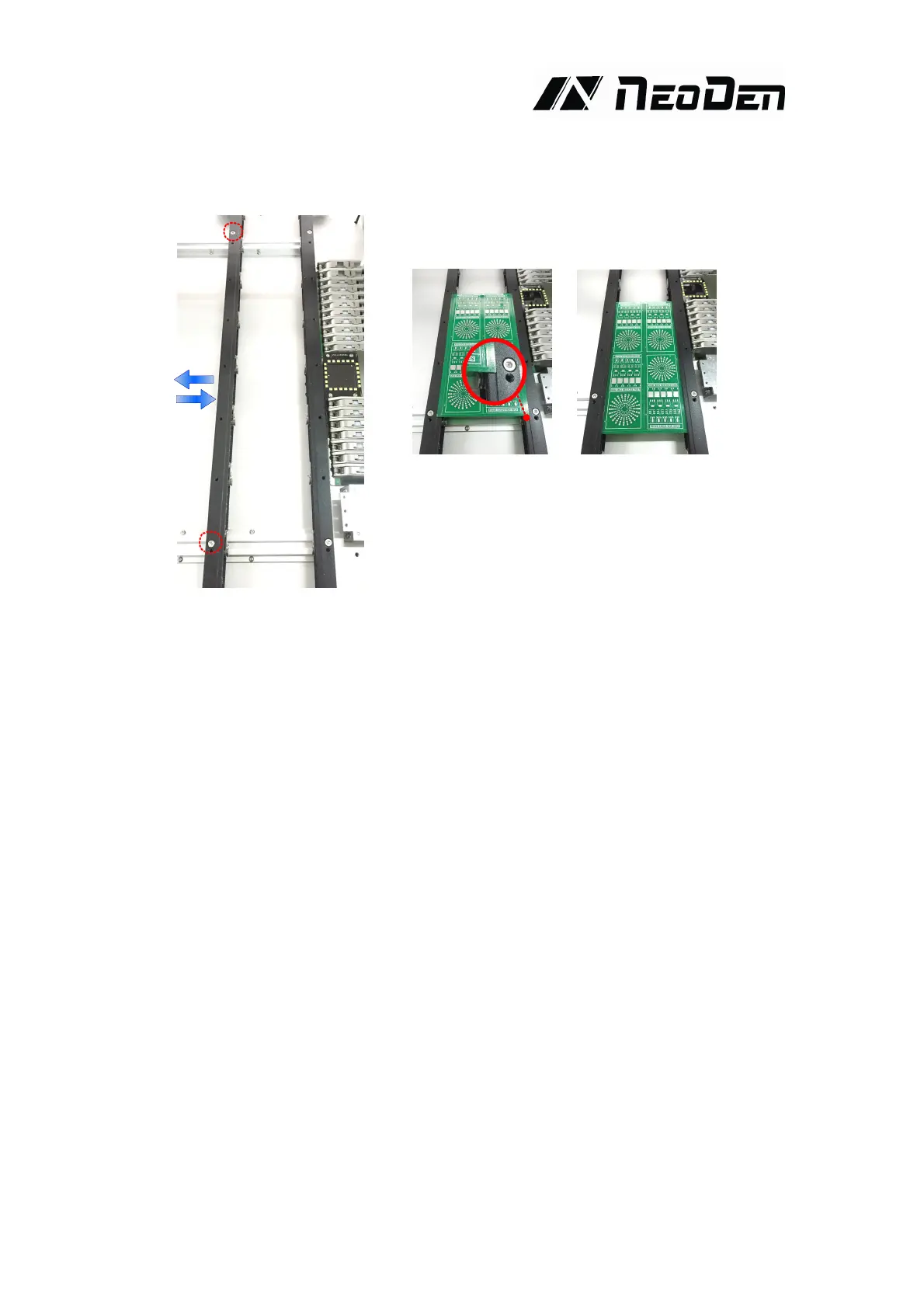

5.1.6.Auto-rails

Adjustment
of
auto-rails
See
（
Fig.1
）：
Loosen
screws
on
A
and
B
，
then
the
left
rail
can
be
moved
arbitrarily.
See
（
Fig.2
）：
Put
PCB
on
the
groove
of
rails
and
tighten
and
screws
A
and
B
once
confirmed
the
width.
See
（
Fig.3
）
:Once
finished
width
adjustment,
put
the
board
into
rails.
Check
the
effect
as
below
A
B
Fig.2
Fig.1
Fig.3
