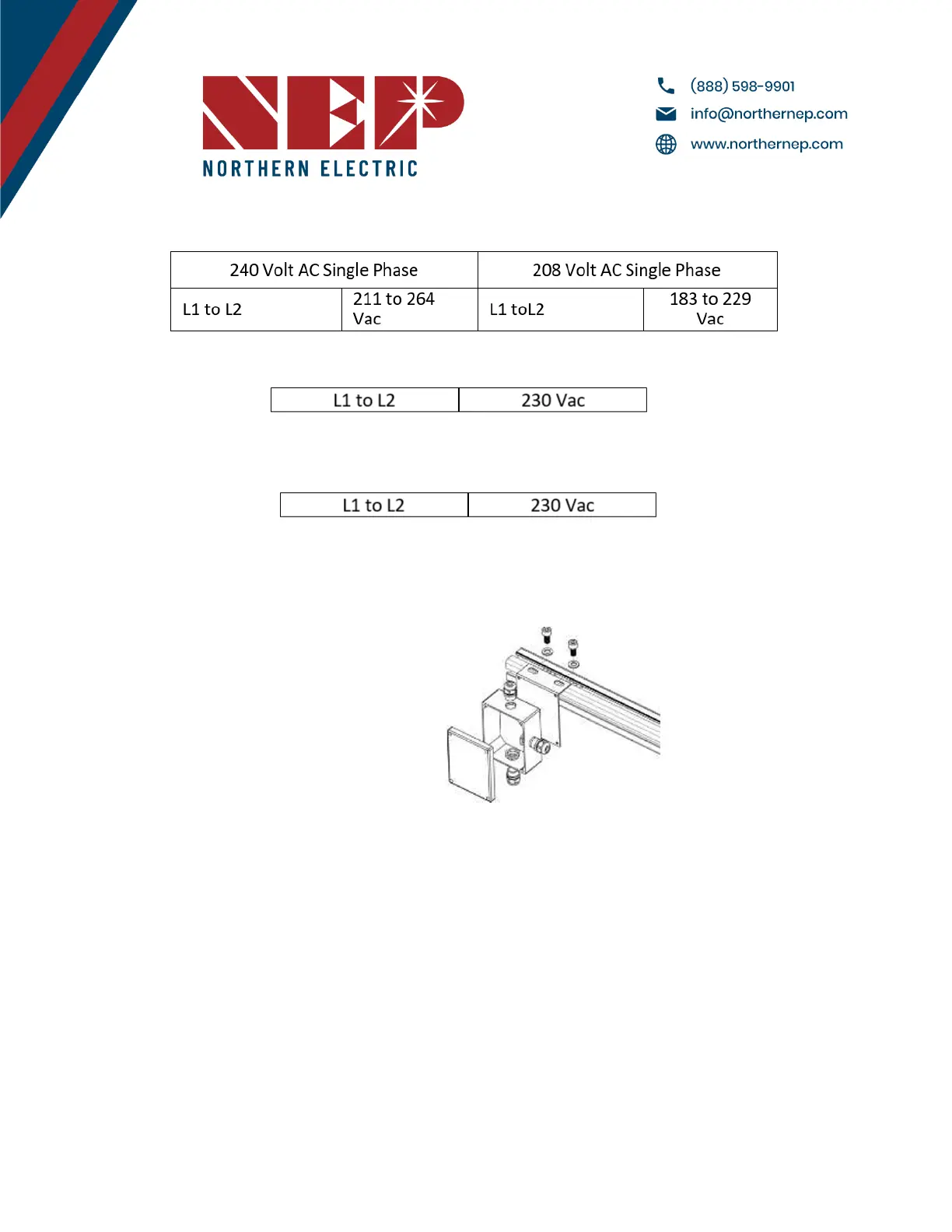

● Measure service entrance conductors to confirm AC service at the site. Acceptable ranges are
shown in the table below:
1. BDM-800-240A & BDM-800-208A (North America)
2. BDM-800-AU (Australia and New Zealand)
3. BDM-800-EU (Europe)
● Mount the adapter plate onto the PV racking system at a suitable location, usually at the end of a row of
modules.
● Install a junction box with the adapter plate that is compatible with the microinverter.
● Connect the open wire end of the AC interconnect cable to the junction box using a gland or strain relief fitting
that is appropriate for the cable. It is important to use a strain relief connector with a diameter opening of 3/8
inches for the AC interconnect cable.
