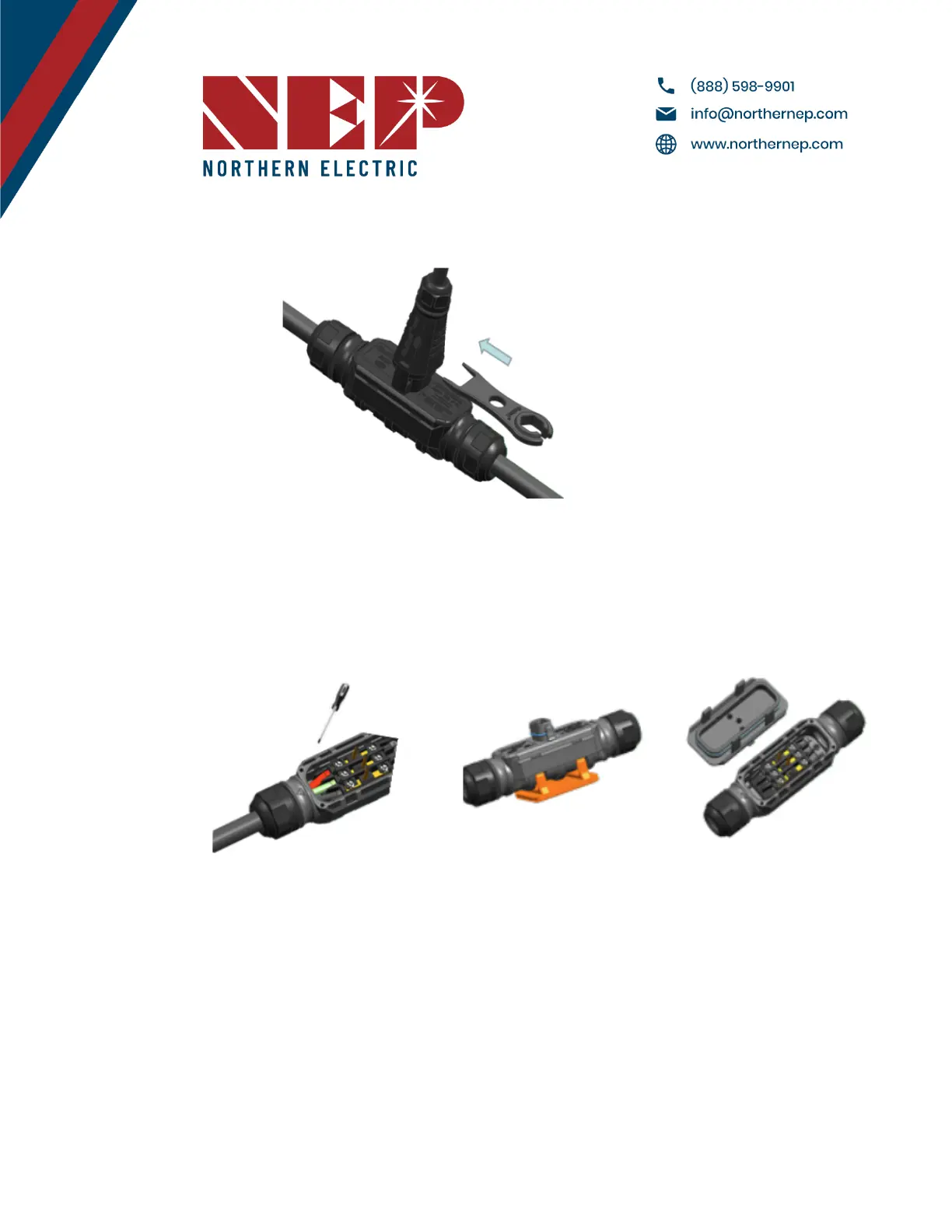

4.7.C Disconnecting BDM-800 From Trunk
● Using the removal tool, push the ends into the slots on the connector, slanted side down, and pull up.
4.7.D Homerun
● At the end of each string disconnect the cover for the T connector, and unscrew the wire leads.
● Pull the cable from the connector
● Attach a home run cable to end of lead, and run to combiner box.
Modified 04/13/2023 by JMB
