Saturn Bt – Chapter 1. Getting Started1.8
Mounting the
Antenna Cont’d
Mounting the Antenna Cont’d

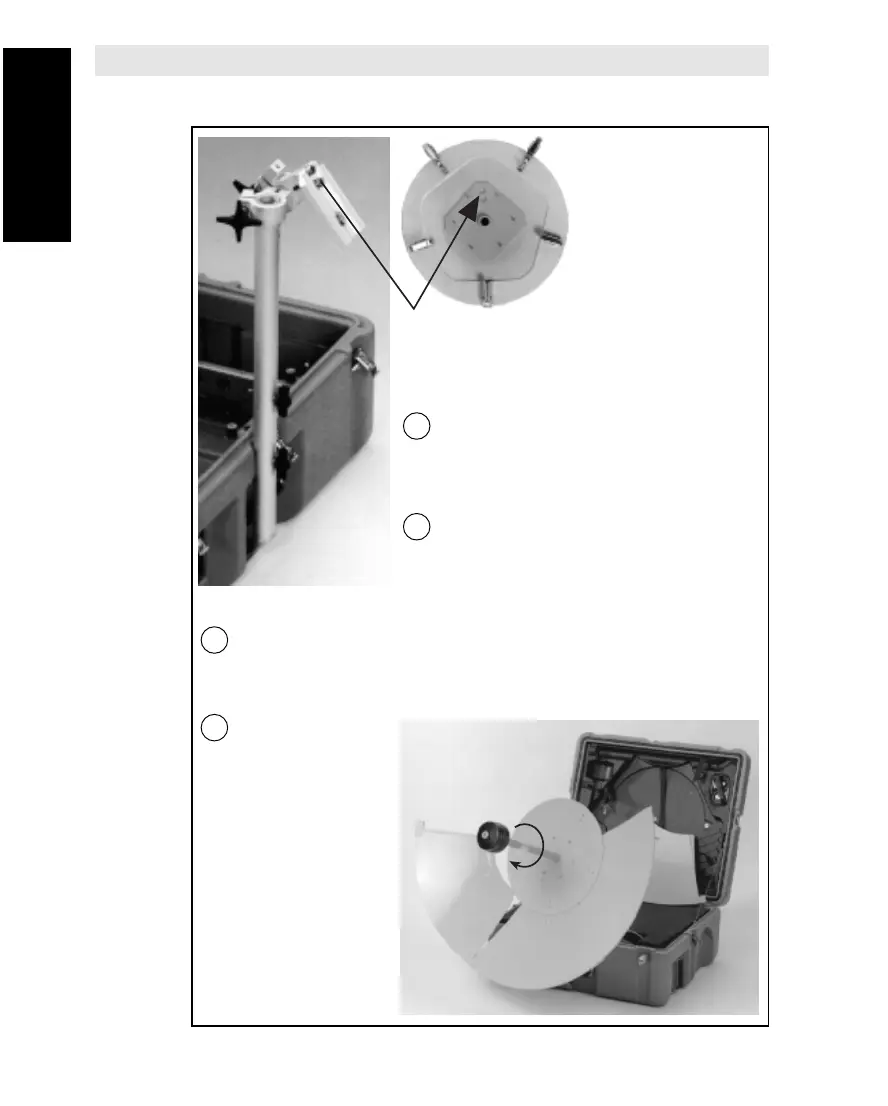

Antenna Assembling
Guide holes which lock the
antenna dish in position.
Refer to step 3.
1 Antenna rod
Insert the antenna mounting rod into the
slot in the trunk and fasten the lower
locking screw.
2 Antenna pivot
Mount the antenna pivot on the top end of
the rod as shown.
3 Dish mid section and feeder
Place the mid section with the guide holes in correct position, and
screw the antenna feeder into place by rotating the feeder rod.
4 Dish side
sections
Mount the 5 side
sections starting with
the bottom section.
Lock the sections
together with the
toggle latches.
