Saturn Bt – Chapter 1. Getting Started1.10
Mounting the Antenna Cont’d

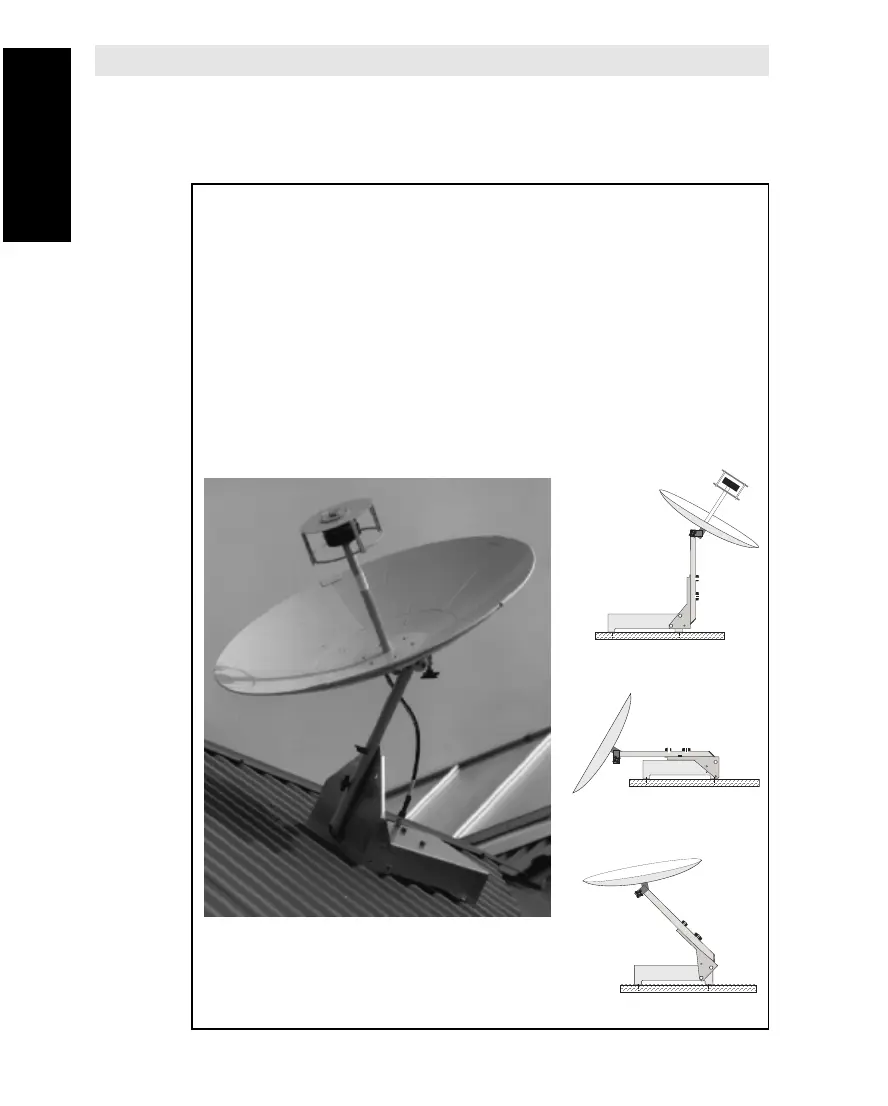

Mounting Antenna on Wall or Roof
The special antenna bracket attached to the transceiver permits wall-
or roof-mounting of the antenna.
The Transceiver is mounted with four screws. Use the enclosed
template for installation.
The three fixed angles selectable for mounting of the antenna
bracket on the Transceiver are illustrated below.
Antenna bracket/mounting rod
a) Mount the Transceiver.
b) Attach the antenna mounting rod to the antenna bracket as
shown.
c) Install the bracket with the wanted angle on the Transceiver.
d) Continue with steps 2 to 5 below.
Coax cable
Antenna bracket
Transceiver
Mounting the
Antenna Cont’d
