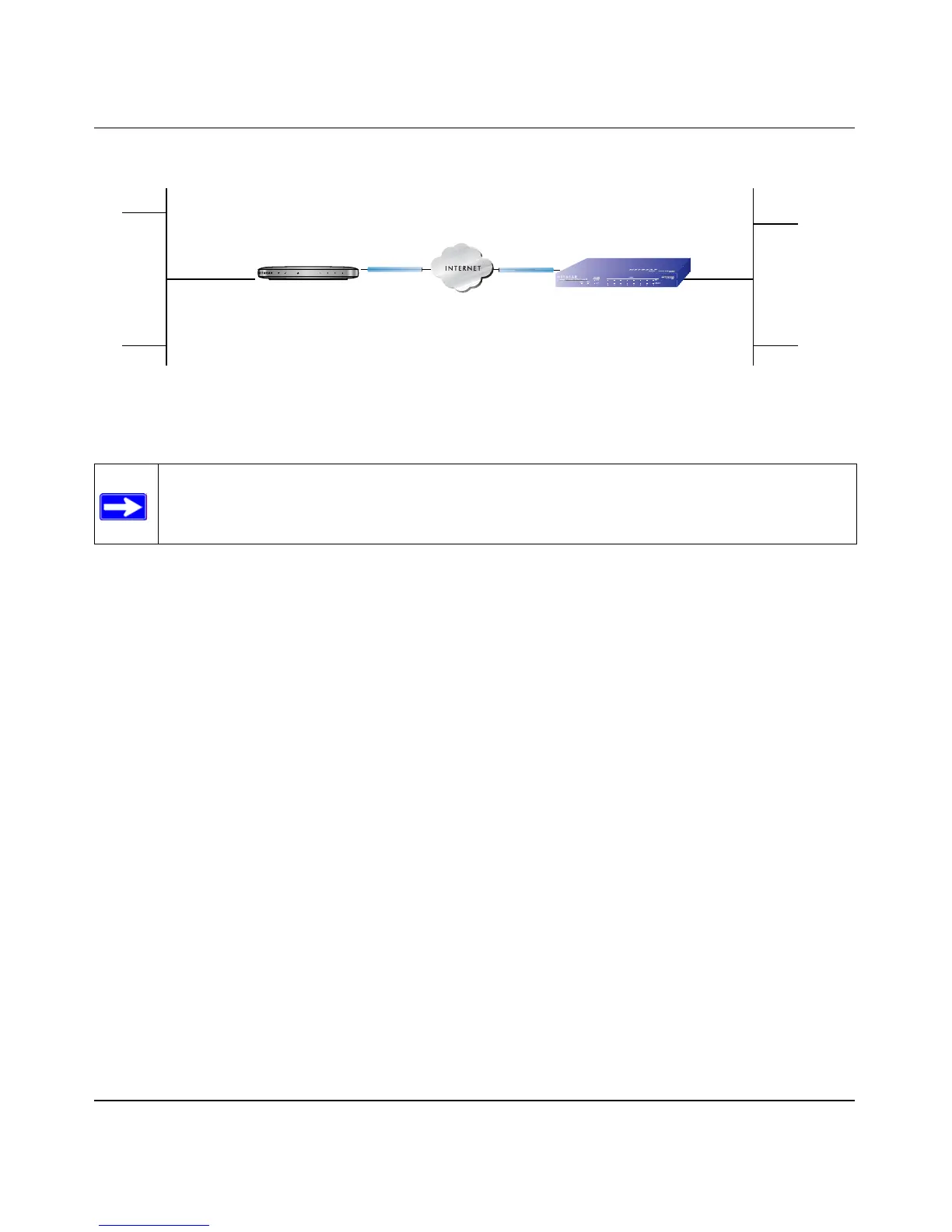

Figure B-1: Addressing and Subnet Used for Examples
Step-By-Step Configuration
1. Configure the DG834 as in the Gateway-to-Gateway procedures using the VPN Wizard (see
“How to Set Up a Gateway-to-Gateway VPN Configuration“ on page -20), being certain to
use appropriate network addresses for the environment.
The LAN Addresses used in this example are as follows.
• DG834
WAN IP = 14.15.16.17
LAN IP = 10.5.6.1
LAN Subnet Mask = 255.255.255.0
•FVL328
WAN IP = 22.23.24.25
LAN IP = 172.23.9.1
LAN Subnet Mask = 255.255.255.0
a. In Step 1, enter toFVL328 for the Connection Name.
b. In Step 2, enter 22.23.24.25 for the remote WAN's IP address.
a. In Step 3, enter the following:
• IP Address = 172.23.9.1
• Subnet Mask = 255.255.255.0
Note: Product updates are available on the NETGEAR, Inc. web site at
http://kbserver.netgear.com/DG834.asp.
Gateway A
22.23.24.25
14.15.16.17
10.5.6.0/24 172.23.9.0/24
172.23.9.110.5.6.1
WAN IP
WAN IP
LAN IPLAN IP
Gateway B
VPNC Example
Network Interface Addressing
DG834
FVL328
