The Router’s Rear Panel

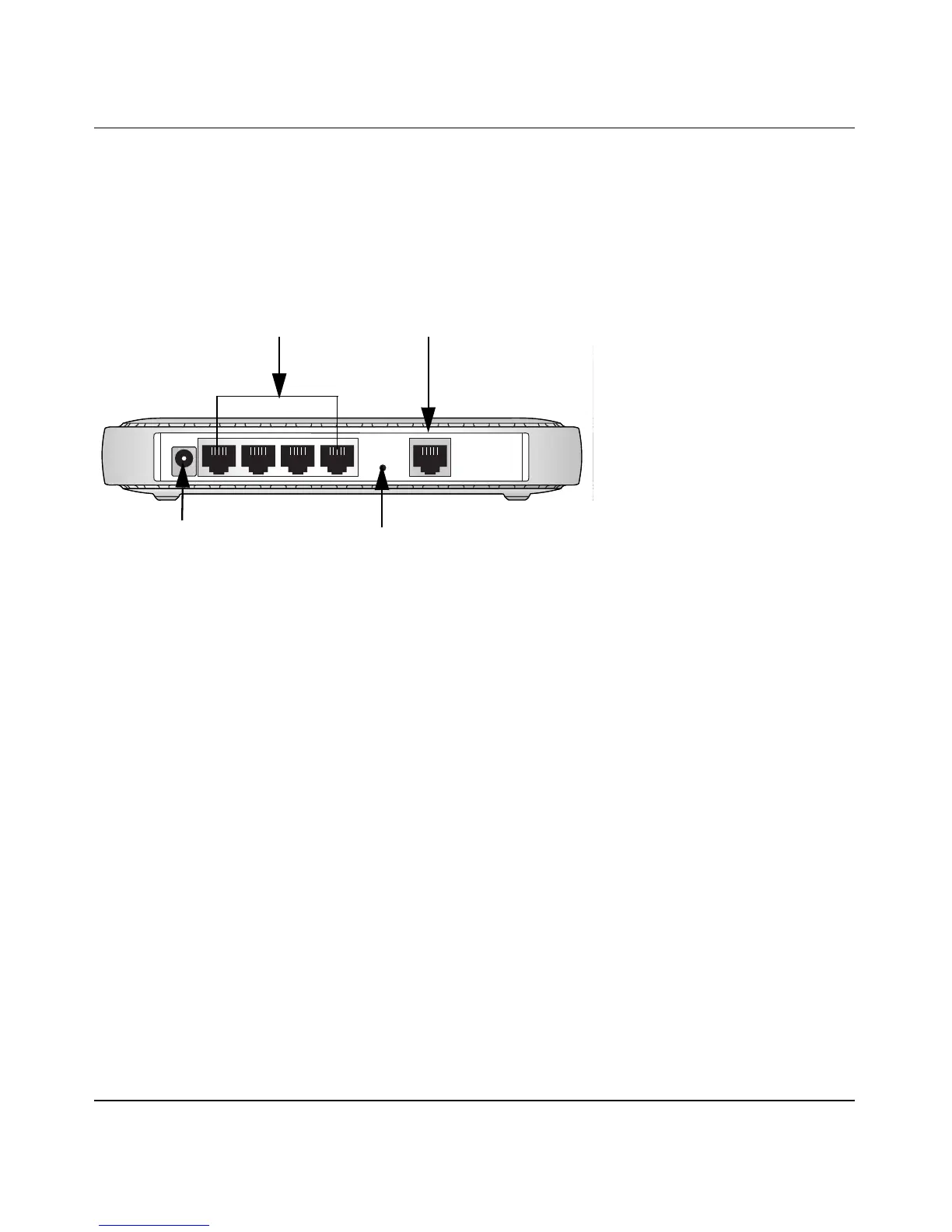

The rear panel of the DG834 ADSL Firewall Router (Figure 2-2) contains port connections.
Viewed from left to right, the rear panel contains the following elements:
1. AC power adapter outlet
2. Four Local Ethernet RJ-45 LAN ports for connecting the firewall to the local computers
3. RJ-11 ADSL port for connecting the firewall to an ADSL line
4. Factory Default Reset push button
Figure 2-2
Power
Reset
Power
ADSL
LAN
Reset
Internet
1
2
4
3
