While the connection is being established, the Connection Name field in this menu will say “SA”
before the name of the connection. When the connection is successful, the “SA” will change to the
yellow key symbol shown in the illustration above.
How to Set Up a Gateway-to-Gateway VPN Configuration
Follow this procedure to configure a gateway-to-gateway VPN tunnel using the VPN Wizard.
Set the LAN IPs on each DG834 to different subnets and configure each properly for the Internet.
The examples below assume the following settings:
Note: While your PC is connected to a remote LAN through a VPN, you might not have
normal Internet access. If this is the case, you will need to close the VPN
connection in order to have normal Internet access.
Note: This section uses the VPN Wizard to set up the VPN tunnel using the VPNC
default parameters listed in Table 7-2 on page -4. If you have special requirements
not covered by these VPNC-recommended parameters, refer to “How to Set Up
VPN Tunnels in Special Circumstances” on page -35 to set up the VPN tunnel.

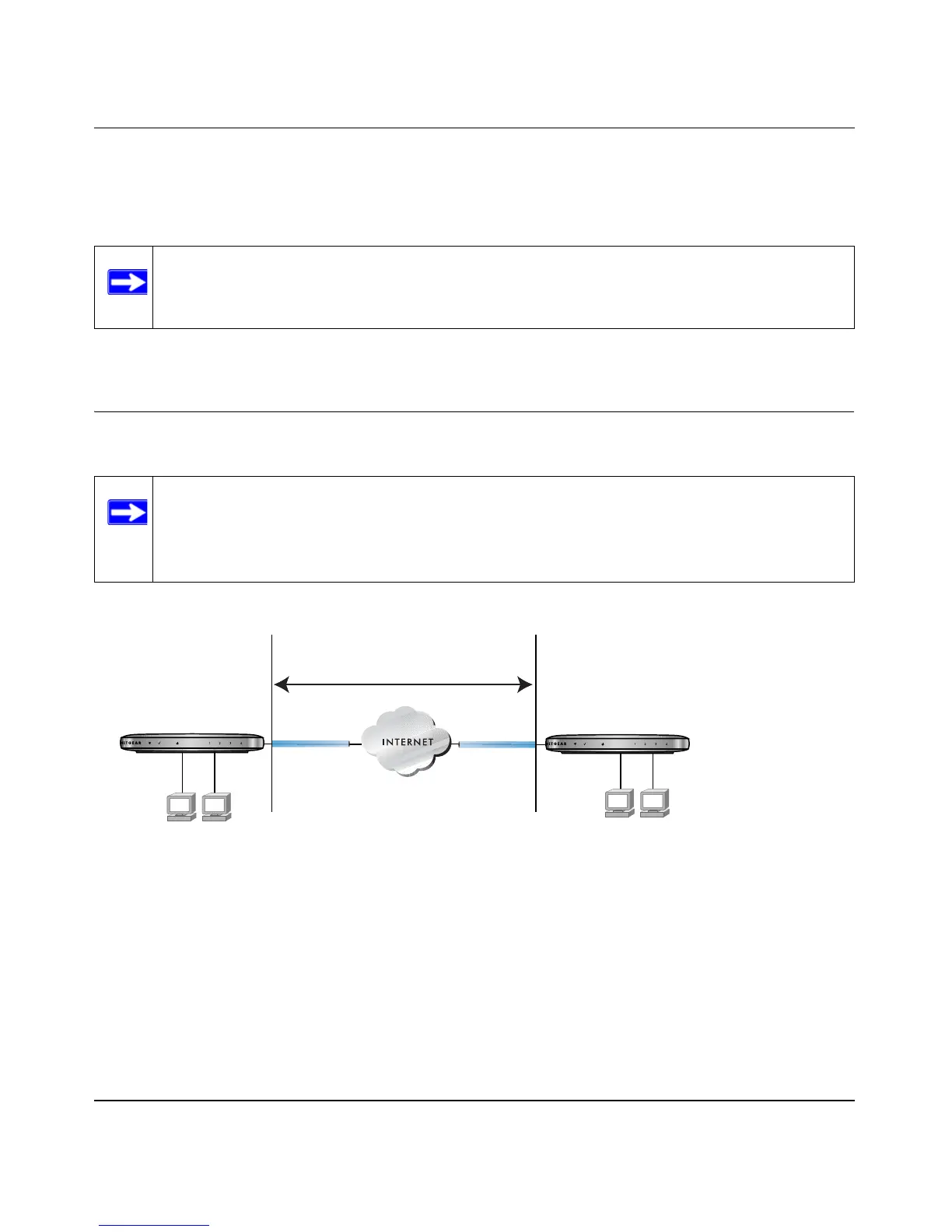

Figure 7-20
A
B
VPN Tunnel
DG834 VPN Firewall
DG834 VPN Firewall
PCs
PCs
192.168.0.1
192.168.3.1
14.15.16.17
22.23.24.25
