Advanced Settings (Part 1)
124
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2

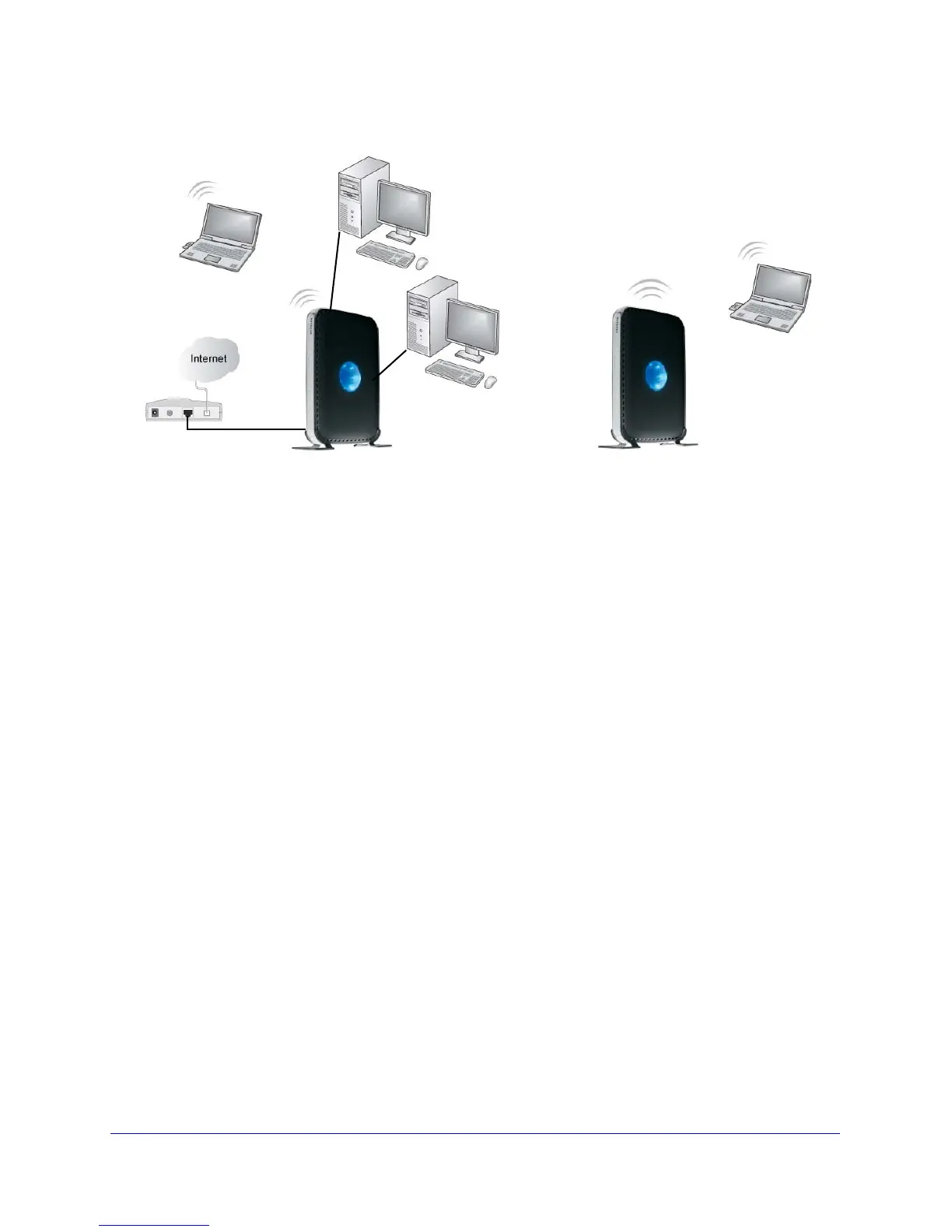

The following figure shows a wireless repeating scenario:
Repeater APBase Station AP
To set up a wireless network using WDS, the following conditions need to be met for both
APs:
• Both
APs need to use the same SSID, wireless channel, and encryption mode (see
Man
ually Configure Your Wireless Settings on p
age 18 or Use Push 'N' Connect (WPS)
to Configure Your Wireless Network on p
age 24).
• Both APs need to be on the same LAN IP subnet. That is, all the AP LAN IP addresses
are in the
same network.
• All LAN devices
(wired and wireless computers) need to be configured to operate in the
same LAN network address range as the APs.
• When the N300 wireless modem router is in dual band mode (the Mo
de field on the
Wireless Settings screen is set to Up to 300 Mbps at 5 GHz and 54 Mbps at 2.4 GHz), the
WDS function works only in 5 GHz 11N mode. To use the 2.4 GHz 11g protocol with
WDS, set the Mode field in the Wireless Settings screen to Up to 300 Mbps at 2.4 GHz. If
you make changes in the Wireless Settings screen, click Apply so that they take effect.
