Virtual Private Networking
90
N300 Wireless Dual Band ADSL2+ Modem Router DGND3300v2

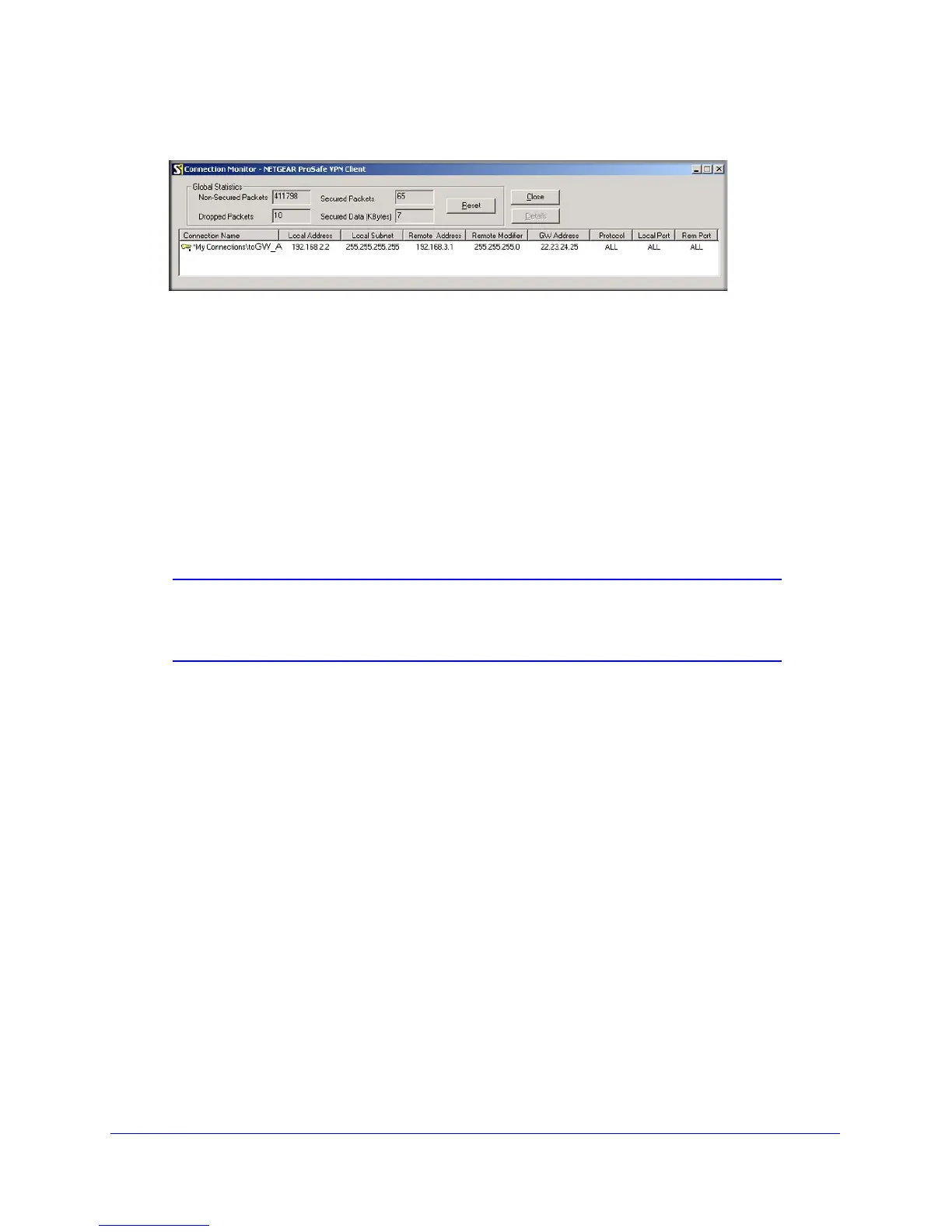

9. The Connection Monitor screen for this connection is shown in the following figure:
In this example you can see these settings:
• The N300 wireless modem router has a GW
address (public IP WAN address) of
22.23.24.25.
• The N300 wireless modem router has a remote address (LAN IP address) of
192.1
68.3.1.
• The VPN client computer has a local addre
ss (dynamically assigned address) of
192.168.2.2.
While the connection is being established, the Connection
Name field in this screen displays
SA before the name of the connection. When the connection is successful, the SA changes
to the yellow key symbol shown in the previous figure.
Note: While your computer is connected to a remote LAN through a VPN,
you might not have normal Internet access. If this is the case, you
have to close the VPN connection to have normal Internet access.
Set Up a Gateway-to-Gateway VPN Configuration
This section describes how to use the VPN Wizard to set up the VPN tunnel using the VPNC
default parameters listed in Table 2 on page 79
. If you have special requirements not covered
by these VPNC-recommended parameters, see Set Up VPN Tunnels in Special
Circumstances on page 100
for information about how to set up the VPN tunnel.
