NETGEAR FVS124G User Manual

Scenario

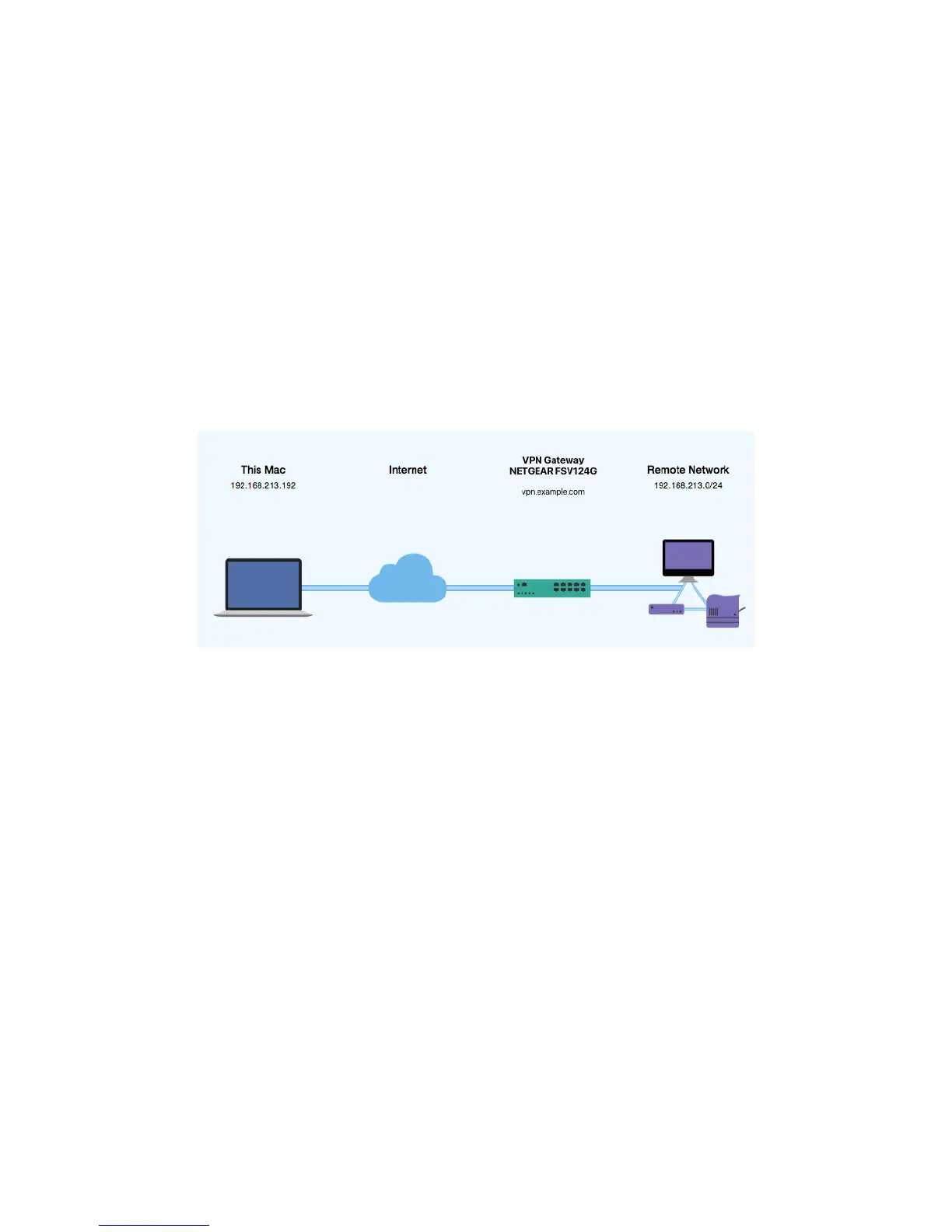

In our example, we need to connect an employee's Mac to an office network. The following diagram illustrates this
scenario:
This guide assumes that the Mac running VPN Tracker already has internet connectivity. The office's NETGEAR firewall
(the “VPN Gateway”) is also already connected to the Internet and can be accessed through a static IP address or a
(Dynamic) DNS host name. In our example setup, we will be using a DNS host name: vpn.example.com.
The NETGEAR device has a second network interface which is connected to the internal office network (LAN). In our
example, the office network has the IP range 192.168.13.0/24 (which is the same as 192.168.13.0/255.255.255.0). This is
the network that will be accessed from the employee’s Mac through the VPN. It is called the “Remote Network” in VPN
Tracker.
6

NETGEAR FVS124G Specifications

Power

power requirements	12V DC, 1.2A

System Memory

processor	200 MHz 32-bit RISC
memory	4MB Flash, 16MB DRAM

Ports & Interfaces

LAN ports	Four (4) 10/100/1000 Mbps auto-sensing, AutoUplink RJ-45 ports
WAN ports	Two (2) 10/100Mbps Ethernet RJ-45 ports

Weight and Dimensions

dimensions	7.45 x 4.85 x 1.26 in. (18.92 x 12.31 x 3.19 cm)
weight	1.37 lbs. (0.62 kg)
