Hardware Description
This section describes the switch hardware features.
Front Panel
The switch provides eight 10/100/1000M BASE-T RJ-45 PoE ports and 2 dedicated SFP ports.The following
figures show the front panel.

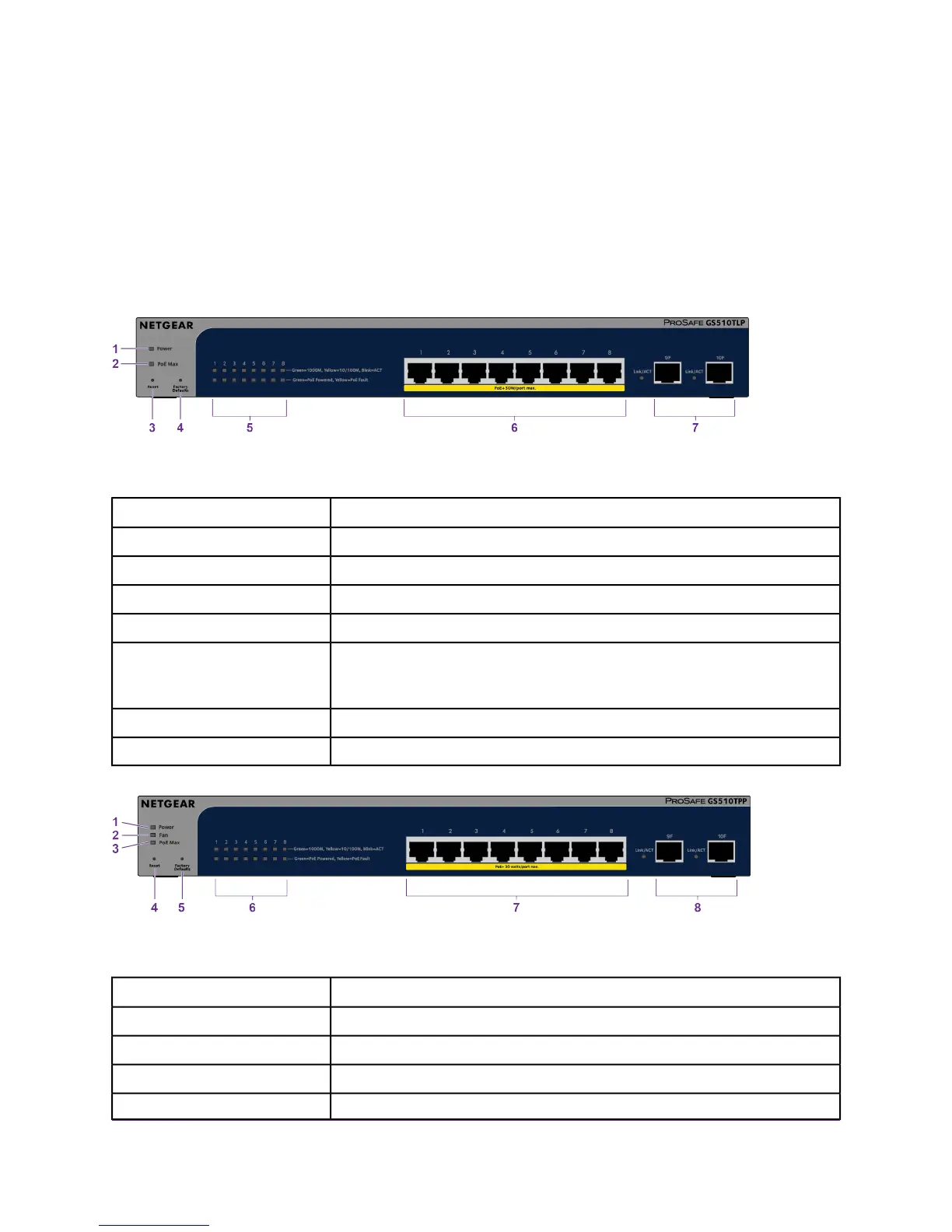

Figure 1. GS510TLP front view
DescriptionNumber
Power1
PoE Max LED (see LEDs on page 11).2
Reset3
Recessed Factory Defaults button4
RJ-45 and PoE LEDs that correspond to the individual ports. The upper
LED row functions as the combined speed and activity LED. The bottom
row of LEDs provides the PoE status. See LEDs on page 11.
5
Eight independent 10/100/1000M BASE-T RJ-45 and PoE ports6
1000M SFP Ports7
Figure 2. GS510TPP front view
DescriptionNumber
Power and PoE LEDs (see LEDs on page 11).1
Fan2
PoE Max LED (see LEDs on page 11).3
Reset4
Hardware Overview
10
ProSAFE 8-Port Gigabit Smart Managed Switch with PoE+ and 2 SFP Ports
